DeLOCK 90151 Internal U.2 Adapter PCIe with LED Indicators

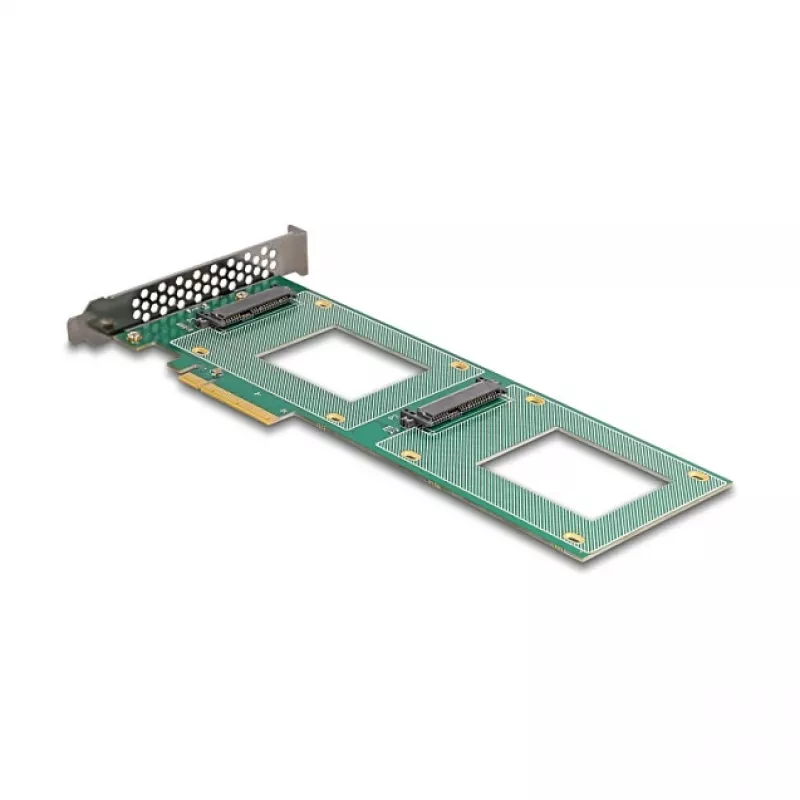

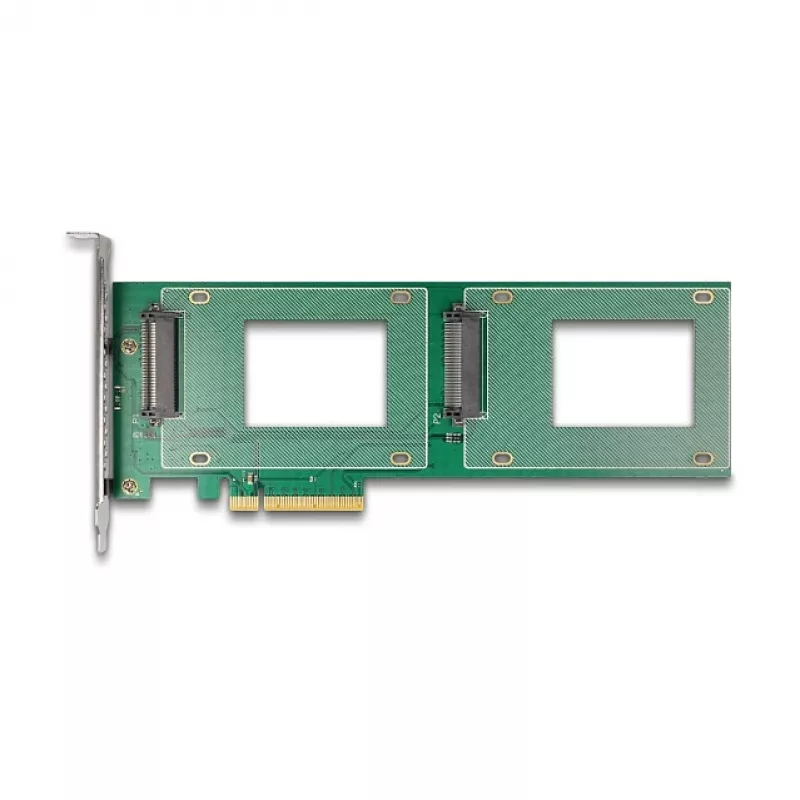

This internal PCI Express card by DeLOCK provides two U.2 (SFF-8639) interfaces, allowing connection of up to two 2.5" U.2 SSDs. The card includes LED indicators for power and activity and is intended for server and workstation environments where direct U.2 connectivity is required.

Advantages

The DeLOCK 90151 offers two native U.2 connectors on a single PCIe card, supports efficient data transfer via PCI Express and provides visible LED indicators for drive activity and power status. Its design is suitable for integration into server systems and workstations that support internal U.2 storage devices.

Suitable for

Key specifications

How to use

Install the card into an available PCIe slot on the motherboard. For both U.2 ports to be active, enable PCIe bifurcation (split) in the motherboard BIOS so the PCIe lanes are divided appropriately. Connect U.2 SSDs to the SFF-8639 ports and secure drives according to the chassis specifications. Confirm drive recognition in the operating system and install any necessary drivers or management tools for your server OS.

Recommendations

Without PCIe bifurcation enabled on the motherboard, only the first SFF-8639 (U.2) port will be usable. Ensure your motherboard supports PCIe bifurcation and that BIOS settings are configured before relying on both ports.
