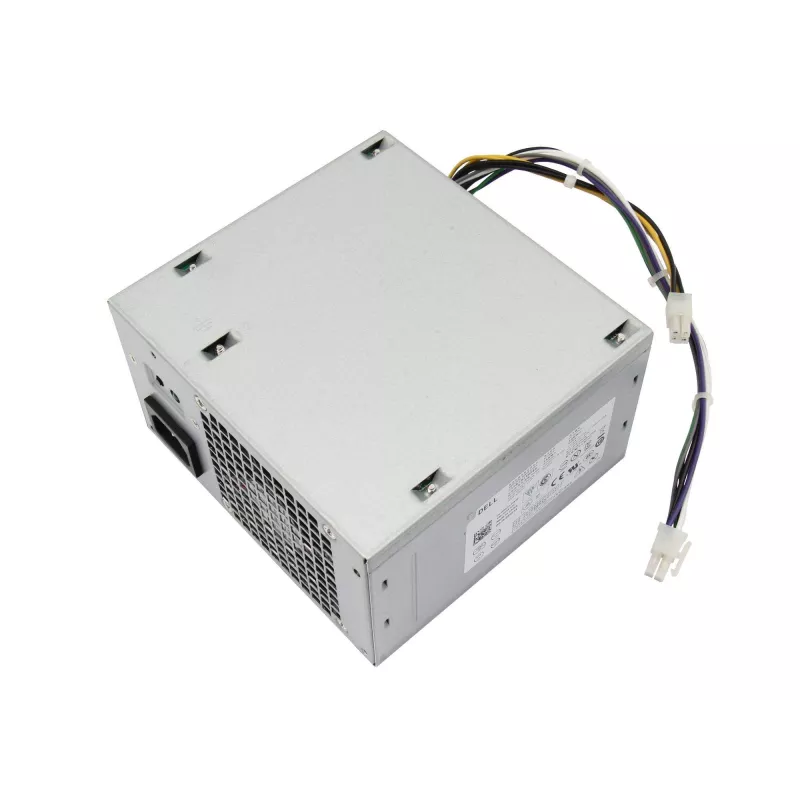

Dell 290W Power Supply Unit with 80 PLUS Bronze Certification - PC/Server Power Supply

This Dell 290W power supply unit (PSU) is designed for reliable and efficient power delivery in Dell OptiPlex and Precision workstations. With 80 PLUS Bronze certification, it ensures energy efficiency and reduced heat output. The unit features a proprietary ATX form factor, active PFC, and multiple protection features for safe operation.

Advantages

Energy-efficient 80 PLUS Bronze certification reduces power consumption and heat. Active Power Factor Correction (PFC) improves power quality. Comprehensive protection features (OVP, OPP, SCP, UVP) safeguard your system. High reliability with 100,000 hours MTBF.

Suitable for

• Dell OptiPlex 7010, 9010, 9020
• Dell Precision T1700, T3600, T3610
• Other compatible Dell desktop and workstation systems

Key specifications

• Total Power: 290W (460W peak)
• Efficiency: 80 PLUS Bronze
• Form Factor: ATX (Proprietary Dell)
• Input Voltage: 100-240 V AC
• Input Frequency: 50/60 Hz
• Main Power Connector: 24-pin ATX
• CPU Power Connector: 8-pin EPS (4+4 pin)
• SATA Power Connectors: 4
• Peripheral (Molex) Power Connectors: 2
• Cooling: Single 120mm fan
• Modular: No
• Active PFC: Yes
• Protection Features: OVP, OPP, SCP, UVP
• MTBF: 100,000 hours

Recommendations

Ensure compatibility with your Dell system before purchase. This PSU is ideal for upgrading or replacing power supplies in supported Dell OptiPlex and Precision models. For systems requiring higher wattage, consider Dell's higher-output options.
