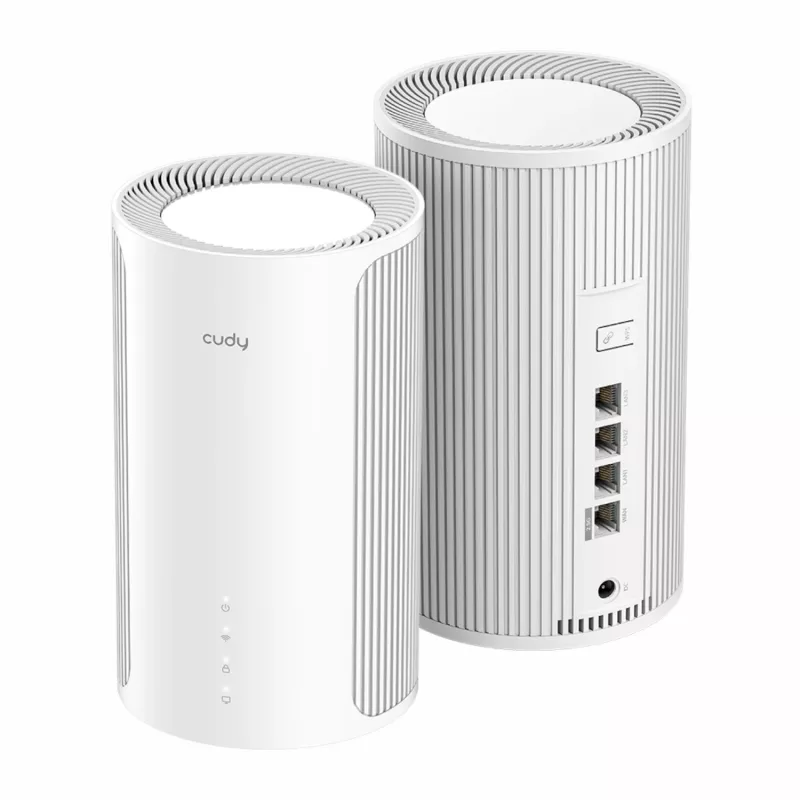

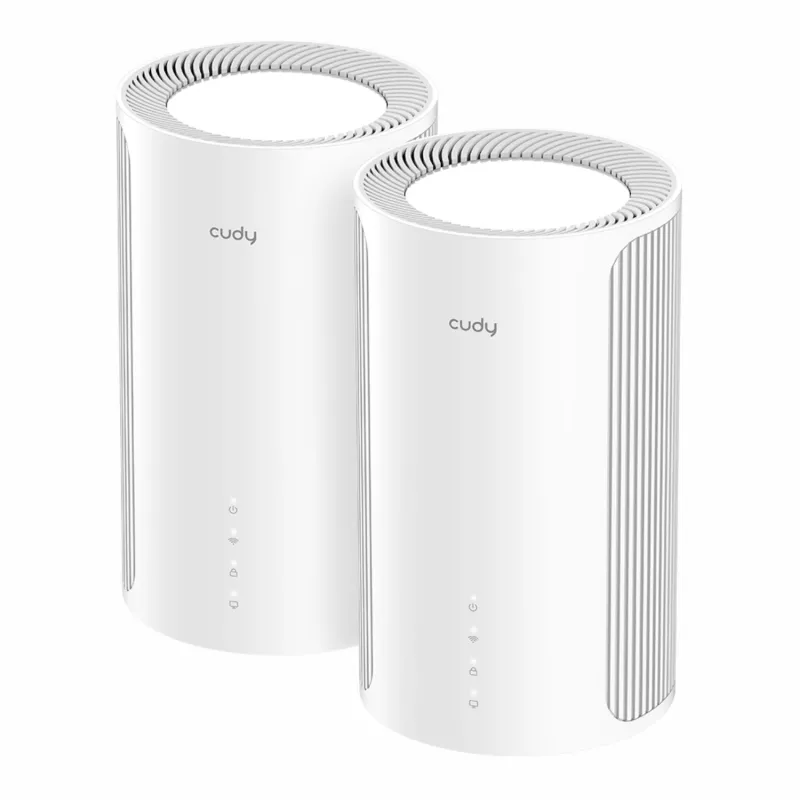

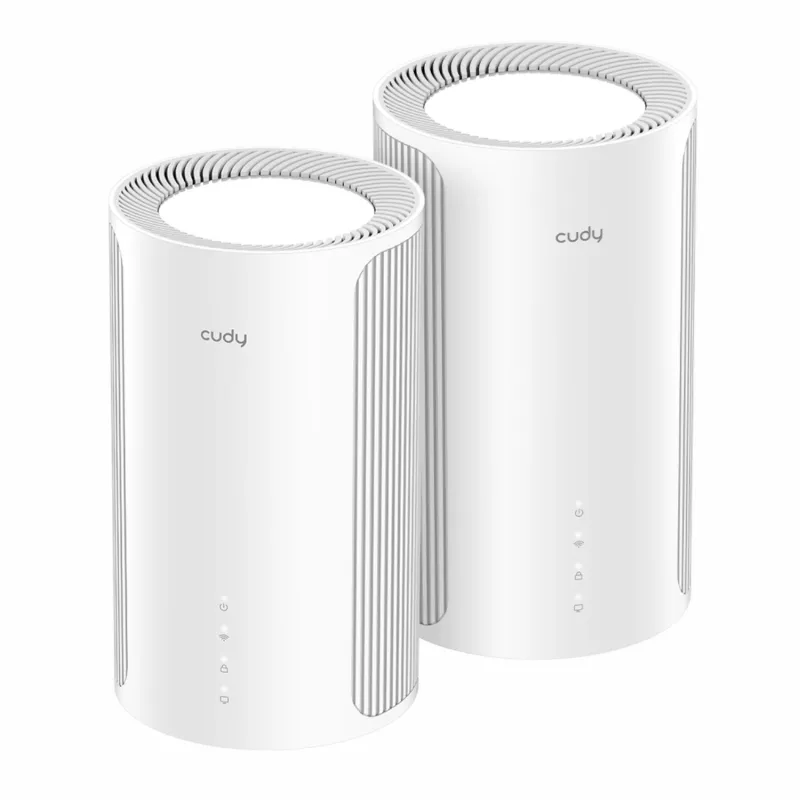

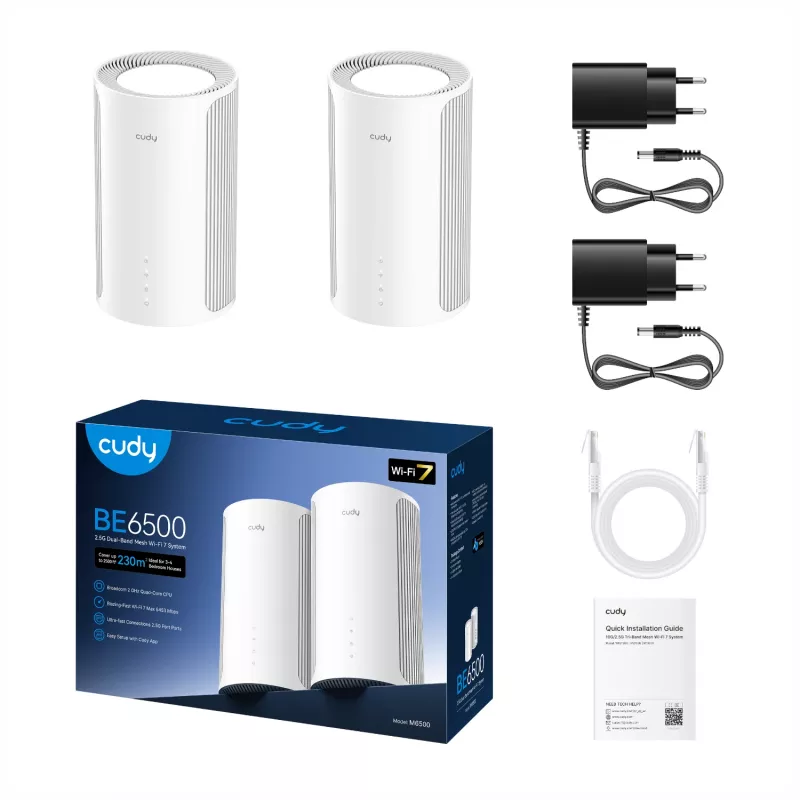

Cudy BE6500 2.5G Mesh Wi-Fi 7 System – 2 Pack

Experience next-generation wireless performance with the Cudy BE6500 2.5G Mesh Wi-Fi 7 System. This 2-pack delivers a combined speed of up to 6500 Mbps across three bands, including the new 6 GHz spectrum, ensuring ultra-fast, low-latency connections for all your devices. With 2.5G Ethernet ports and advanced mesh technology, it blankets up to 5,000 sq. ft. in seamless, reliable Wi-Fi.

Overview

The Cudy BE6500 is a tri-band Wi-Fi 7 mesh system that leverages the latest 802.11be standard to provide exceptional throughput and efficiency. Each unit features a powerful quad-core 1.5 GHz processor, 512 MB RAM, and 128 MB flash, enabling smooth handling of multiple simultaneous connections. The system supports Multi-Link Operation (MLO), 4096-QAM, OFDMA, MU-MIMO, and Target Wake Time (TWT) for optimized performance in dense environments.

What stands out

• Wi-Fi 7 technology with aggregate speeds up to 6500 Mbps (688 Mbps on 2.4 GHz, 2882 Mbps on 5 GHz, 2882 Mbps on 6 GHz).

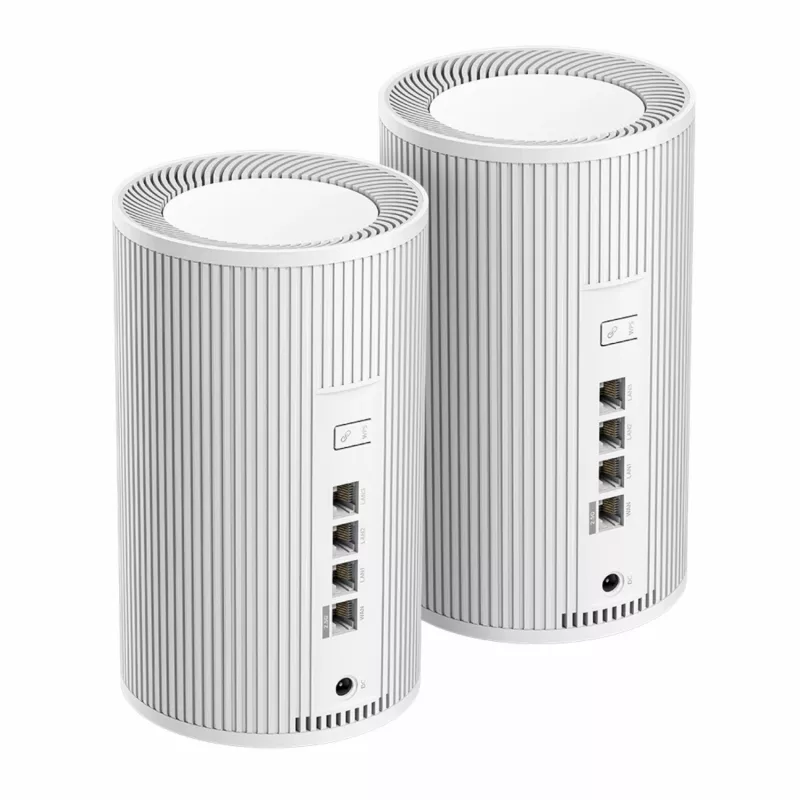

• 2.5G Ethernet connectivity: one 2.5G WAN/LAN port and three 2.5G LAN ports per unit for high-speed wired backhaul or device connections.
• Seamless mesh coverage up to 5,000 sq. ft. with the 2-pack, eliminating dead zones.
• Advanced security with WPA3 encryption and robust VPN support including WireGuard, OpenVPN, PPTP, and L2TP.
• Six internal high-gain antennas per unit for strong, stable signals.
• Flexible operating modes: Router or Access Point.

Technical details

• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Frequency Bands: Tri-Band (2.4GHz, 5GHz, 6GHz)
• Aggregate Wi-Fi Speed: BE6500 (6500 Mbps)
• 2.4GHz Wi-Fi Speed: 688 Mbps
• 5GHz Wi-Fi Speed: 2882 Mbps
• 6GHz Wi-Fi Speed: 2882 Mbps
• Ethernet Ports (per unit): 1x 2.5G WAN/LAN, 3x 2.5G LAN
• Mesh Technology: Cudy Whole Home Mesh Wi-Fi
• Processor: Quad-Core 1.5GHz CPU
• RAM: 512 MB
• Flash Memory: 128 MB
• Antennas: 6x Internal High-Gain Antennas (per unit)
• Advanced Wi-Fi Features: MLO, 4096-QAM, OFDMA, MU-MIMO, TWT
• Security Protocols: WPA3, WPA2, WPA
• VPN Support: OpenVPN, PPTP, L2TP, WireGuard (Server/Client)
• Coverage Area: Up to 5,000 sq. ft. (2-pack)
• Number of Units: 2
• Power Supply: 12V / 2A DC (per unit)
• Operating Modes: Router, Access Point

Our verdict

The Cudy BE6500 2-pack is a future-proof mesh system that delivers Wi-Fi 7 speeds and 2.5G wired connectivity at an accessible price point, making it an excellent choice for high-bandwidth households and small offices.
