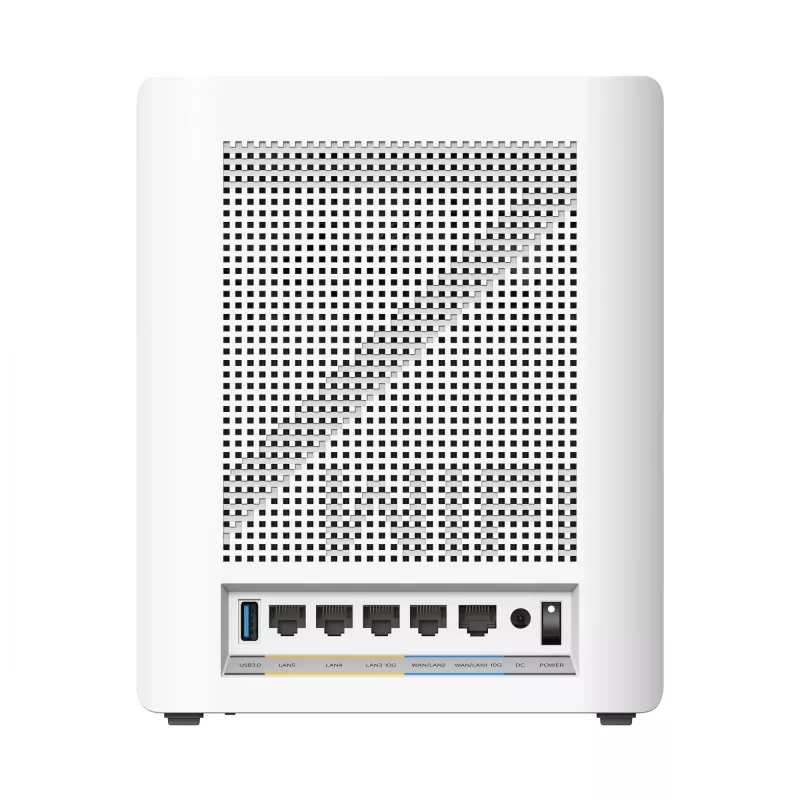

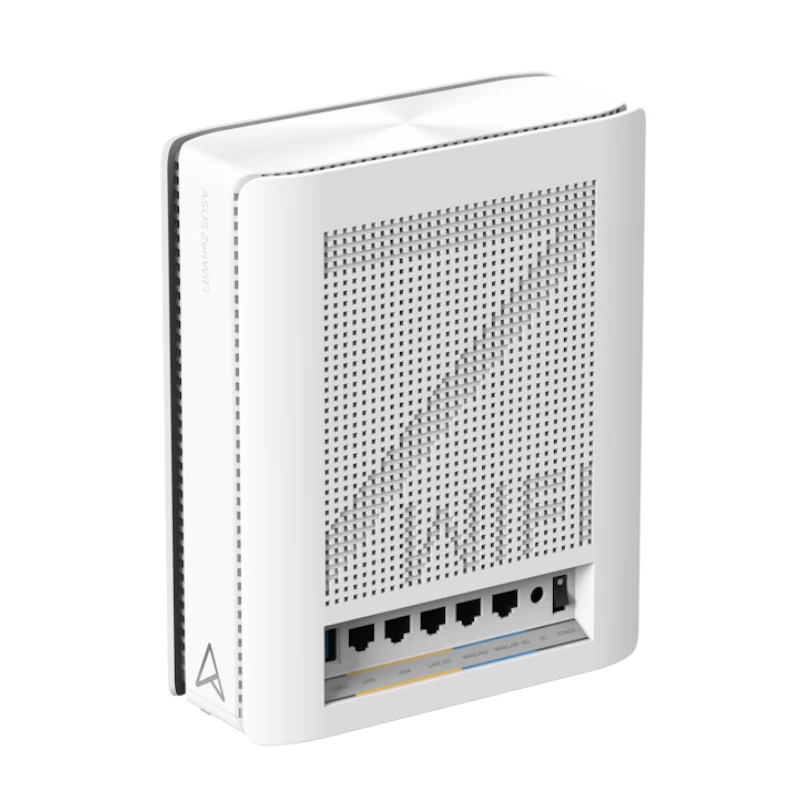

ASUS ZenWiFi BQ16 Quad-band (2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz) Wi-Fi 7 (802.11be) White 5 Internal

BQ16 Quad Band WiFi 7 (802.11be) BE25000 Mesh WiFi System supports the latest WiFi 7 technologies including 320 MHz channel bandwidth, 4096-QAM modulation, and Multi-Link Operation (MLO). The system is designed for high-throughput home and small-office networks and includes dual 10G Ethernet ports with a backup WAN option. It provides subscription-free network security and is compatible with AiMesh for flexible mesh deployments.

Advantages

The BQ16 delivers increased wireless capacity and lower latency through WiFi 7 features such as 320 MHz bandwidth and 4096-QAM. Multi-Link Operation improves reliability and throughput by allowing simultaneous use of multiple links. Dual 10G ports enable high-speed wired connections and a dedicated backup WAN increases network resilience. Subscription-free security ensures ongoing protection without additional fees, and AiMesh compatibility simplifies integration into existing mesh setups.

Key specifications

• WiFi standard: WiFi 7 (IEEE 802.11be)
• Channel bandwidth: up to 320 MHz
• Modulation: 4096-QAM
• Multi-Link Operation (MLO): supported
• Ethernet ports: dual 10G
• WAN options: primary and backup WAN
• Network security: subscription-free
• Mesh support: AiMesh compatible

How to use

Connect one unit to your modem via the primary WAN port and configure the backup WAN on the secondary 10G port if required. Follow the device setup process using the manufacturer’s app or web interface to enable WiFi 7 features and MLO. Position additional nodes around the coverage area and activate AiMesh mode to create a unified mesh network. Use the web interface or app to manage security settings, firmware updates, and network monitoring.

Recomendations

Place mesh nodes in open locations with minimal obstructions for best coverage, use quality CAT6A/CAT7 cabling to utilize 10G ports fully, and keep firmware updated to maintain security and performance. Consider enabling MLO and 320 MHz channels where client devices support these features.
