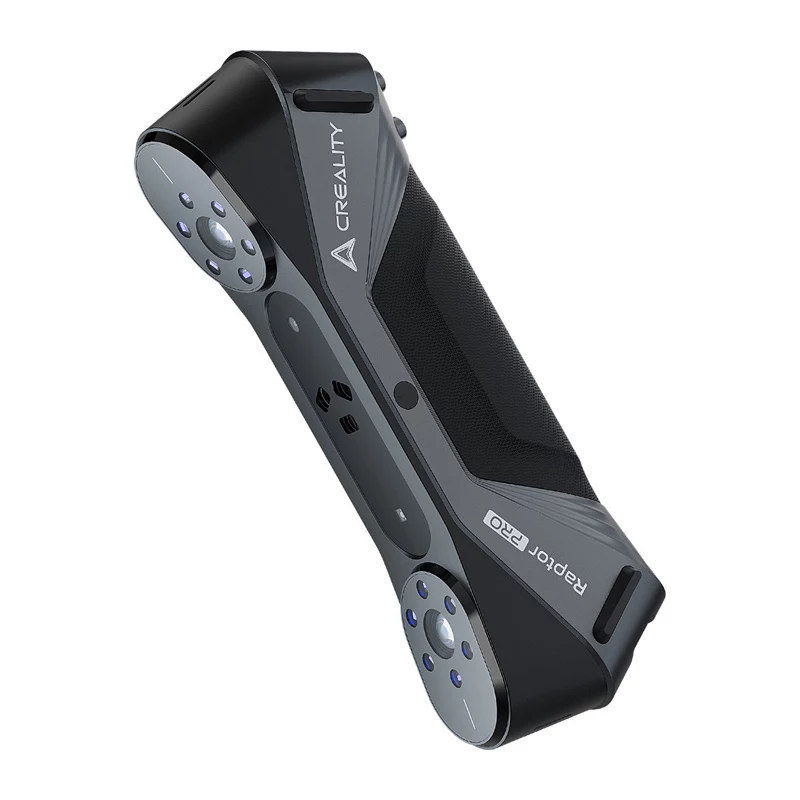

Creality CR-Scan Raptor Pro 3D Scanner - Dual-Light Blue & NIR, 0.02mm Accuracy, 60fps, USB 3.0

Capture intricate details with the Creality CR-Scan Raptor Pro, a dual-light 3D scanner that pairs blue light for precision and near-infrared for speed. Achieve blue light accuracy up to 0.02 mm and scan at up to 60 fps in NIR mode, making it suitable for objects from 5 mm to 2000 mm.

Overview

The CR-Scan Raptor Pro is a portable handheld 3D scanner engineered for versatility. It combines blue light and near-infrared (NIR) technologies to handle a wide range of scanning tasks, from small, detailed parts to larger objects. With a working distance of 150-800 mm and a depth of field of 100-700 mm, it adapts to various scanning scenarios.

What stands out

• Dual-light scanning: Blue light for high accuracy (up to 0.02 mm) and NIR for faster scanning (up to 60 fps).
• High resolution: Blue light resolution up to 0.02 mm, NIR resolution up to 0.1 mm.
• Wide scanning range: Single frame range of 210 x 130 mm (blue light) and 500 x 300 mm (NIR).
• Color scanning: Captures 24-bit true color for realistic textures.
• Anti-shake tracking: Ensures stable scanning even with slight hand movements.
• Outdoor capability: NIR mode enables scanning in outdoor environments.

Technical details

• Scanning technology: Dual-light (Blue Light & Near-infrared)
• Blue light accuracy: Up to 0.02 mm
• NIR accuracy: Up to 0.1 mm
• Blue light resolution: Up to 0.02 mm
• NIR resolution: Up to 0.1 mm
• Blue light scanning speed: Up to 12 fps
• NIR scanning speed: Up to 60 fps
• Blue light single frame range: 210 x 130 mm
• NIR single frame range: 500 x 300 mm
• Working distance: 150-800 mm
• Depth of field: 100-700 mm
• Color scanning: Yes, 24-bit true color
• Output formats: OBJ, STL, PLY, ASC
• Connectivity: USB 3.0
• Software: Creality Scan
• Operating system: Windows 10/11 (64-bit)
• Recommended PC RAM: 16 GB or more
• Scanning object size range: 5 mm to 2000 mm
• Outdoor scanning capability: Yes (NIR mode)
• Anti-shake tracking: Yes

Our verdict

The Creality CR-Scan Raptor Pro delivers professional-grade scanning with dual-light flexibility, making it a strong choice for engineers, designers, and hobbyists who need both precision and speed.
