Coaxial Connector F-type Axing CFS09751 Male 50 pcs

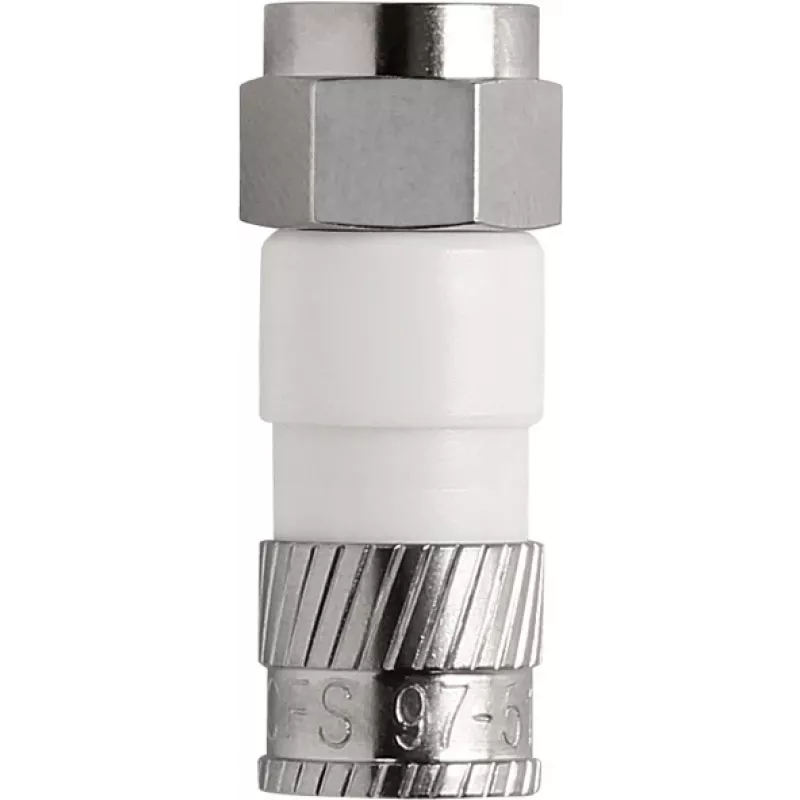

The Axing CFS09751 is a pack of 50 male F-type coaxial connectors with NITIN anti-allergic coating, designed for secure and durable connections with 5.1 mm dielectric coaxial cables (models SKB 88, 89, 395). These connectors are mounted using the BWZ 7-00 compression tool and are intended for television, satellite and general RF signal installations where reliable signal transmission is required.

Advantages

The NITIN anti-allergic coating reduces risk of skin irritation during handling while maintaining electrical performance. The male F-type design provides a stable mechanical and electrical contact. Supplied in a pack of 50, the connectors offer consistent quality for multiple installations and replacements. Compatibility with a 5.1 mm dielectric ensures proper fit on specified cable models.

Suitable for

Key specifications

How to use

Prepare the coaxial cable by stripping the outer jacket and dielectric to the dimensions required for the chosen connector and cable model. Insert the cable into the connector so the center conductor engages the pin and the braid sits under the connector body. Use the BWZ 7-00 compression tool to crimp the connector according to the tool manufacturer's instructions. After compression, check the mechanical fit and electrical continuity before completing the installation.

Recommendations

Use connectors with coaxial cables that have a 5.1 mm dielectric diameter (such as SKB 88, 89, 395). Always use the specified BWZ 7-00 compression tool for reliable terminations and verify connections with appropriate testing equipment to ensure signal integrity.
