Coaxial Connector DeLOCK 89682

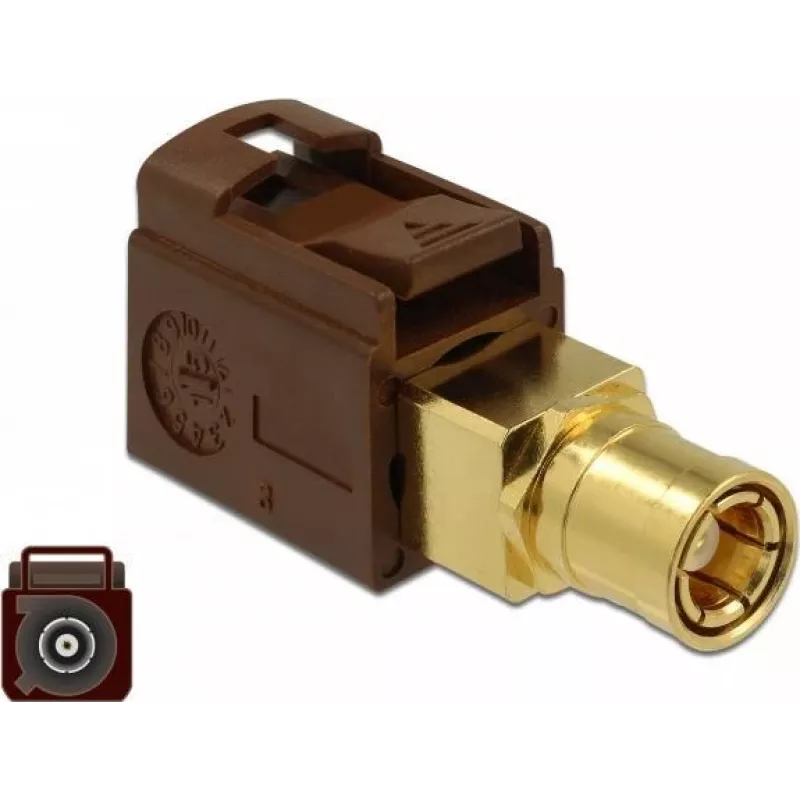

The DeLOCK 89682 coaxial connector provides an interface between a FAKRA F female jack and an SMB jack. It has compact dimensions of 13.8 mm (width) × 28.8 mm (depth) × 9.5 mm (height) and comes in a polybag. The connector is designed for reliable RF signal transmission where these coaxial terminations are required.

Advantages

The adapter combines a FAKRA F female jack and an SMB jack in a small form factor, enabling easy integration into tight spaces. Its standardized connector types ensure compatibility with equipment that uses FAKRA and SMB interfaces. The unit is lightweight and supplied in protective polybag packaging for simple handling and storage.

Suitable for

Key specifications

How to use

Align the FAKRA F female end with the corresponding FAKRA male connector and press until it engages securely; connect the SMB jack to the matching SMB plug by pushing together with slight axial force. Verify mechanical seating and signal continuity before final installation. Use appropriate cable routing and strain relief to avoid stress on the connections.

Recommendations

Use this adapter in environments and applications that match the specified connector types. Avoid exposing the connector to excessive moisture or mechanical strain; for automotive or outdoor installations, ensure additional sealing and strain relief as required by the system.
