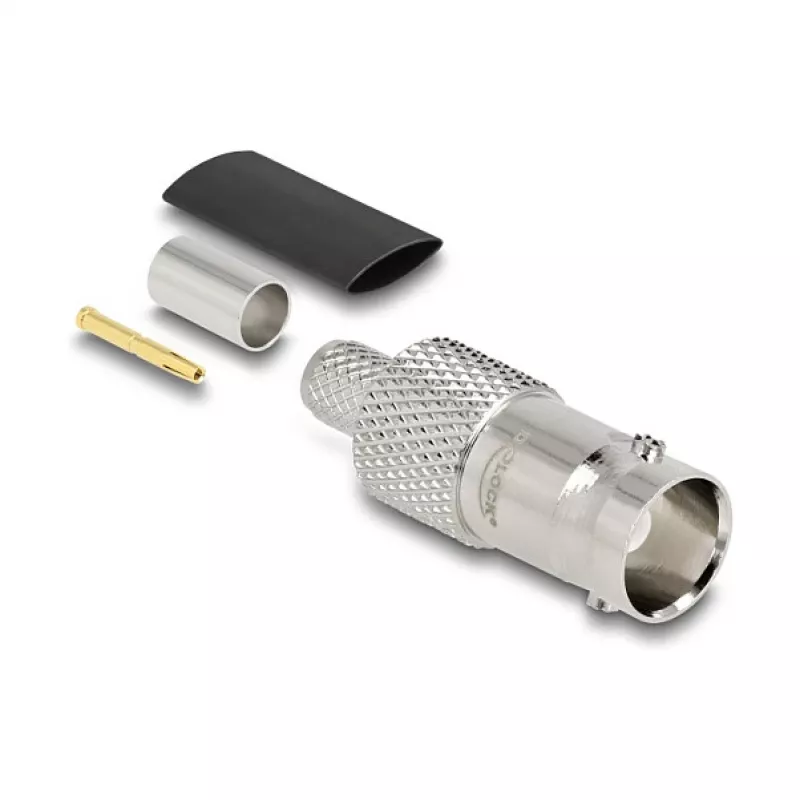

DELOCK BNC Female Crimp Connector for RG-59 with Heat Shrink Tubing

The DELOCK BNC Female Crimp Connector is a high-quality coaxial connector designed for professional video, CCTV, and RF applications. It is specifically engineered for RG-59 coaxial cable, providing a reliable 75 Ohm impedance connection. The connector features a nickel-plated brass body and contact, ensuring excellent conductivity and corrosion resistance. The package includes matching heat shrink tubing for added insulation and strain relief. This straight, cable-mount connector uses a crimp termination method for secure and consistent installation.

Advantages

This BNC connector offers a robust and durable solution for terminating RG-59 cables. The nickel-plated brass construction provides long-lasting performance, while the included heat shrink tubing enhances cable protection. The crimp termination ensures a gas-tight connection, minimizing signal loss and interference. Ideal for security camera installations, video surveillance systems, and other RF applications.

Suitable for

• Video surveillance and CCTV systems
• RF and coaxial cable assemblies
• Professional audio/video installations
• Broadcast and telecommunications

Key specifications

• Connector type: BNC female (jack)
• Termination method: Crimp
• Compatible cable: RG-59 coaxial
• Impedance: 75 Ohm
• Body material: Brass, nickel-plated
• Contact plating: Nickel
• Dielectric: PTFE / Delrin
• Included accessories: Heat shrink tubing
• Mounting type: Cable mount
• Body style: Straight
• Cable outer diameter compatibility: Approx. 6.15 mm
• RoHS compliant: Yes

Recommendations

For optimal performance, use with RG-59 coaxial cable and a suitable crimping tool. Ensure proper stripping and crimping to maintain signal integrity. The included heat shrink tubing should be applied after crimping for additional protection.
