Coaxial Connector N-type DeLOCK 90022

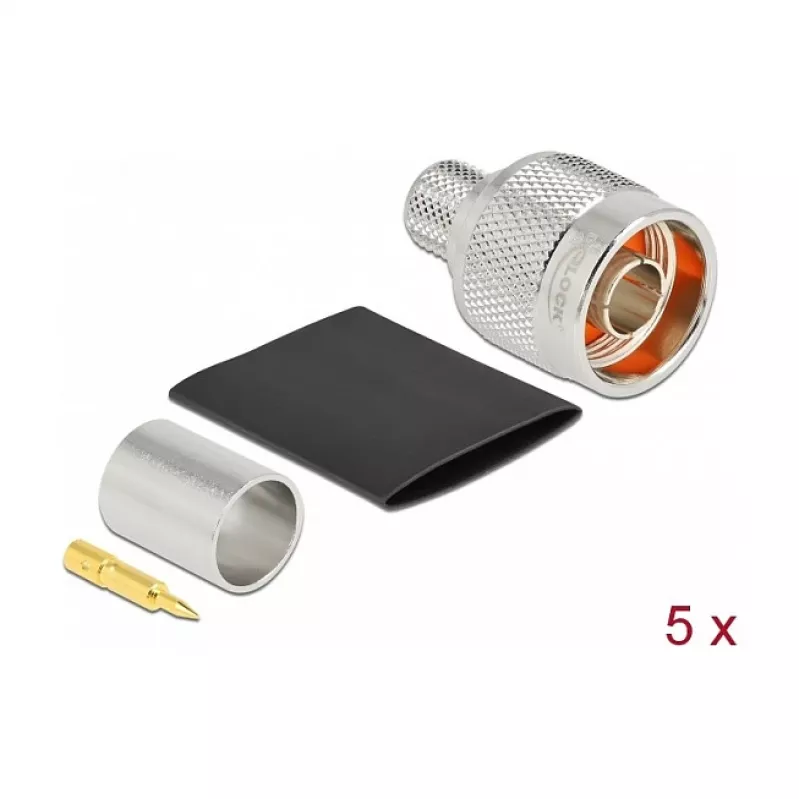

The DeLOCK 90022 N-type coaxial connector set is designed for reliable radio frequency connections with a characteristic impedance of 50 Ω. Each connector includes a matching shrink tube and features nickel-plated contacts for improved durability and stable signal transmission. The compact connectors measure 20 mm × 29.6 mm × 20 mm and are supplied as a set of 5 in a polybag.

Advantages

These N-type connectors provide consistent 50 Ω impedance for RF applications and nickel-plated contacts that resist corrosion and wear. The included shrink tube simplifies insulation and strain relief during installation. The compact size and multi-pack packaging make them practical for small-scale projects and repairs.

Suitable for

Key specifications

How to use

Prepare the coaxial cable according to standard termination procedures for 50 Ω cables, slide the provided shrink tube onto the cable, attach the N-type connector following the connector assembly steps (ensure correct center conductor alignment and secure outer conductor), then heat the shrink tube to provide insulation and strain relief. Verify the electrical connection and mechanical stability before final use.

Recommendations

For optimal performance, use these connectors with cables and equipment specified for 50 Ω impedance and apply proper cable preparation and assembly tools. Avoid overtightening the connector to prevent mechanical damage.
