Coaxial Cable DeLOCK 1m SMA/MHF

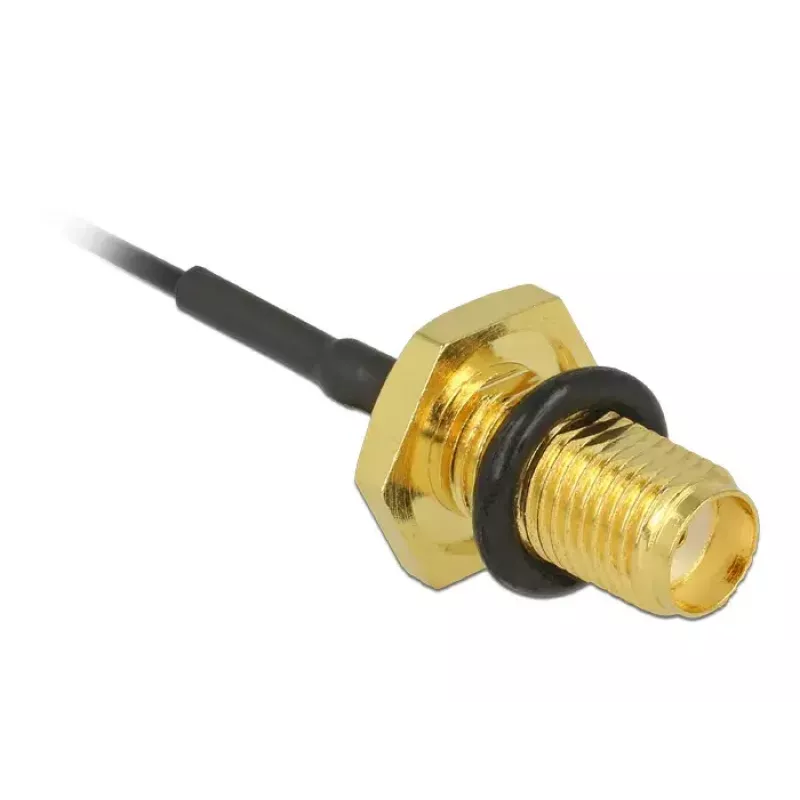

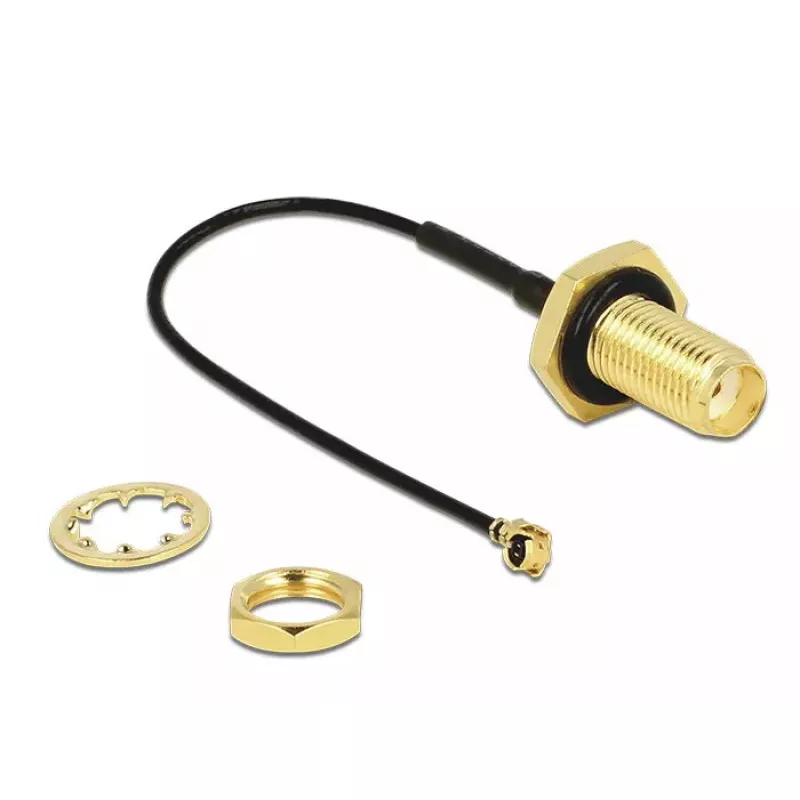

This DeLOCK coaxial cable transfers an antenna signal inside a device and connects equipment reliably over a short distance. The cable measures 1 m and features an SMA plug and an MHF (U.FL-compatible) connector, making it suitable for tight installations. The SMA jack bulkhead base plate includes a loose seal ring to help achieve a splash‑proof connection to a device. The cable is supplied in a polybag.

Advantages

The DeLOCK 1m SMA/MHF coaxial cable provides a compact, flexible connection with standard SMA and MHF terminations for compatibility with many radio and RF modules. The included loose seal ring on the SMA jack bulkhead base plate improves resistance to splashes at the device interface. Its 1 m length allows placement of modules in confined spaces while maintaining signal integrity for antenna feeds.

Suitable for

Key specifications

How to use

Route the cable inside the device from the internal RF/MHF connector to the SMA jack bulkhead. Attach the MHF connector to the module’s board connector by pressing gently until it clicks, then secure the SMA plug to the mating SMA socket or bulkhead. Ensure the loose seal ring on the SMA jack is positioned correctly in the bulkhead to improve splash protection. Avoid sharp bends and excessive tension on the cable during installation.

Recommendations

For best performance, keep cable bends larger than the manufacturer’s recommended minimum bend radius and avoid kinking. Verify connector seating and the seal ring position before closing the device housing. This cable is intended for signal transmission; it is not specified as fully waterproof and should not be exposed to prolonged moisture or immersion.
