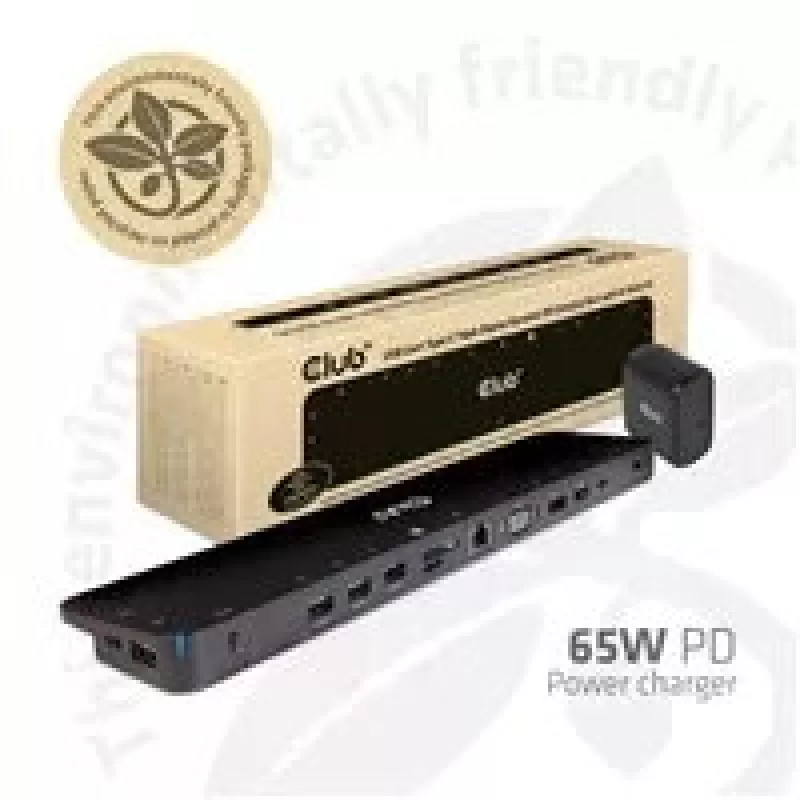

CLUB3D UNIVERSAL USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS ( VGA, HDMI, DP, ETHERNET)

The CLUB3D CSV-1564W65 USB Gen1 Type-C Triple Display Dynamic PD Charging Dock combines video, data, power, Ethernet and audio in a compact docking solution. It provides HDMI, DisplayPort and VGA outputs for connecting up to three external displays simultaneously in MST mode, USB Type-A and Type-C data ports for peripherals, SD and Micro‑SD card readers, a 3.5 mm audio jack, and a Gigabit Ethernet port. One USB Type-C port supports Power Delivery charging up to 100 W, and the dock is bundled with a 65 W power supply suitable for notebooks with up to 65 W consumption. The dock supports DP Alt Mode hosts including PCs, laptops and some mobile devices.

Advantages

The dock supports DP Alt Mode and PD 3.0 and offers USB Gen1 Type-C data transfer up to 5 Gbps. It includes one USB Gen1 Type-C data port and one USB Gen1 Type-C power/PD port (PD charging up to 100 W; bundled 65 W PSU). Video outputs support HDMI 4K@30 Hz, DisplayPort 4K@30 Hz and VGA up to 1920×1200@60 Hz, enabling triple‑display setups via MST. A Gigabit Ethernet (IEEE 802.3, up to 1000BASE‑TX) port provides wired network connectivity. SD and Micro‑SD slots can be used simultaneously, and the 3.5 mm audio port supports both microphone and headphones. The dock implements dynamic current detection and power distribution so it negotiates and draws only the power it needs from the external PD adapter.

Suitable for

• Office and home workstations that require multiple external displays
• Business travelers who need a compact docking solution with power delivery
• Users who need wired Gigabit Ethernet connectivity for stable networks
• Connecting USB peripherals, SD/Micro‑SD cards and headsets to a host device

Key specifications

• Model: CLUB3D CSV-1564W65
• Video outputs: HDMI (4K@30 Hz), DisplayPort (4K@30 Hz), VGA (1920×1200@60 Hz)
• Triple display support via MST
• USB: one USB Gen1 Type‑C data port (up to 5 Gbps), three USB 3.2 Gen1 Type‑A ports
• Power delivery: one USB Gen1 Type‑C PD port (supports up to 100 W negotiation); bundled 65 W power supply
• Memory card: SD and Micro‑SD slots (can operate simultaneously)
• Network: Gigabit Ethernet (IEEE 802.3, up to 1000BASE‑TX)
• Audio: 3.5 mm stereo jack (microphone and headphone support)
• Weight: 0.558 kg
• Colour: Black

How to use

Connect the dock to a host that supports DisplayPort Alt Mode using the USB Type‑C cable. Plug the included 65 W power supply into the dock’s PD charging port to power the dock and provide charging to the host; the dock will negotiate PD power dynamically with the adapter and the host. Attach external displays to the HDMI, DisplayPort and VGA ports as needed; when using three displays, ensure the host supports MST and DP Alt Mode. Insert SD and Micro‑SD cards into the respective slots to access files through the host. Connect USB peripherals to the Type‑A or Type‑C data ports, and attach a headset to the 3.5 mm jack. For wired network access, connect an Ethernet cable to the Gigabit port.

Recommendations

To achieve triple‑display output, verify the host device supports DisplayPort Alt Mode and MST. Use the bundled 65 W power supply for typical notebook use up to 65 W; for higher host charging requirements, connect a higher‑wattage PD adapter (the dock negotiates up to 100 W) but do not exceed the adapter or host device specifications.
