CAMSAT CDS-6IP 3PoE Industrial PoE Switch / Extender, 6 Ports, 3x PoE, 10/100 Mbps, DIN Rail

The CAMSAT CDS-6IP 3PoE is a robust industrial PoE switch and extender designed for reliable network connectivity in demanding environments. With 6 Fast Ethernet ports, including 3 PoE+ outputs, it delivers power and data over a single cable, simplifying installation and reducing costs. Ideal for IP cameras, access points, and other PoE devices, this switch supports extended transmission distances up to 250 meters in EXTEND mode, making it perfect for large-scale surveillance and industrial networks.

Advantages

• Cost-effective solution combining switching and PoE power delivery

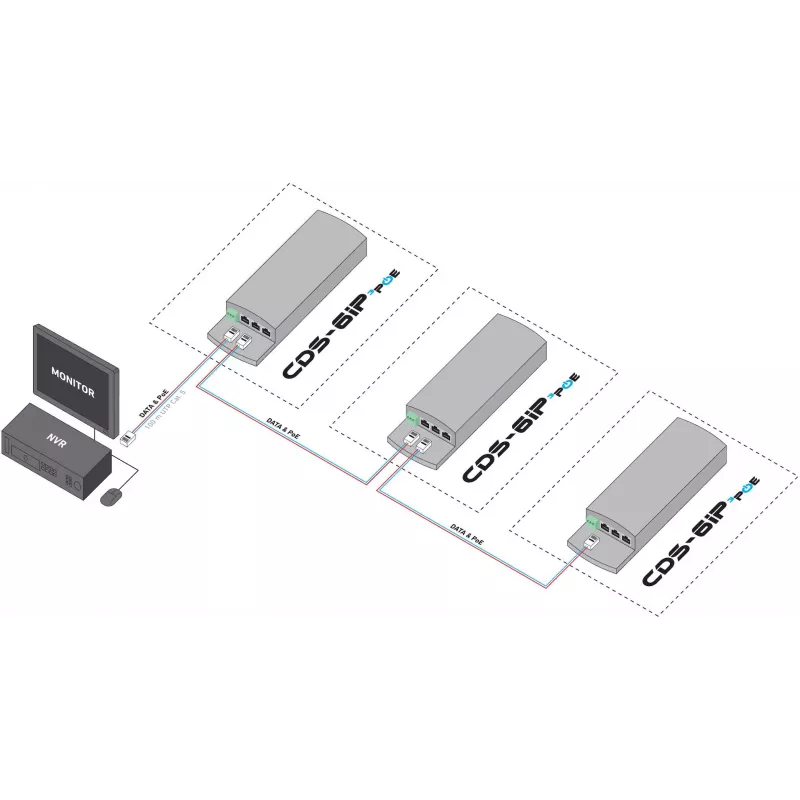

• Extended PoE range up to 250m for flexible device placement

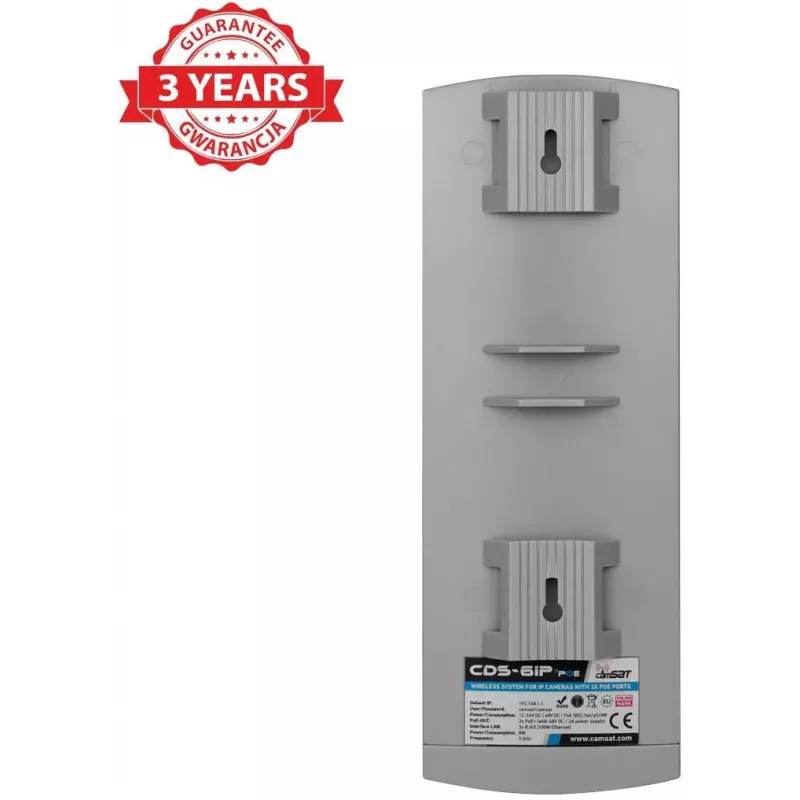

• Rugged metal housing with DIN rail/wall mount for easy integration
• Wide input voltage range (12-56V DC) for versatile power sources
• Comprehensive protection against ESD, surges, overcurrent, and short circuits

Suitable for

• Industrial Ethernet networks requiring PoE for IP cameras, access points, or sensors
• Surveillance systems needing long-distance PoE transmission
• Automation and control systems in harsh environments
• Outdoor or temperature-extreme installations (-30°C to +70°C)

Key specifications

• 6 x 10/100 Mbps RJ45 ports (3 PoE+, 2 uplink, 1 data)
• PoE standard: IEEE 802.3af/at, up to 30W per port, total budget 30W
• Network standards: IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at
• MAC address table: 1K entries
• Jumbo frame support: 1536 bytes
• Power consumption: <5W (device only)
• Operating temperature: -30°C to +70°C
• Mounting: DIN rail or wall mount
• Housing: Metal
• LED indicators: Power, Link/Act, PoE status

Recommendations

For optimal performance, use shielded Cat5e or higher cabling for PoE distances over 100m. Ensure the power supply matches the input voltage range (12-56V DC). This switch is not a router; it operates at Layer 2.
