CAMSAT CDS-6IP eco 5 GHz Wireless IP Transmission System / Bridge, 300 Mbps, 16 dBi, 2x RJ-45, PoE, IP65

The CAMSAT CDS-6IP eco is a high-performance 5 GHz wireless IP transmission system designed for reliable outdoor connectivity. Ideal for point-to-point and point-to-multipoint links, it delivers up to 300 Mbps PHY rate and 150 Mbps real TCP/IP throughput, making it suitable for video surveillance, WISP networks, and industrial applications.

Advantages

Integrated 16 dBi directional panel antenna ensures strong signal focus and extended range up to 3 km line-of-sight. Dual 10/100BASE-TX Ethernet ports with 24V passive PoE simplify installation. IP65 weatherproof enclosure withstands harsh outdoor conditions. Supports multiple operating modes (AP, Client, WDS Bridge, Repeater) for flexible deployment.

Suitable for

• Wireless video surveillance backhaul
• Point-to-point building-to-building connectivity
• WISP last-mile access
• Industrial outdoor networking

Key specifications

• Frequency: 5 GHz (5150-5875 MHz)
• Wireless Standard: IEEE 802.11a/n
• Max PHY Rate: 300 Mbps
• Real TCP/IP Throughput: Up to 150 Mbps
• Antenna: Integrated 16 dBi directional panel

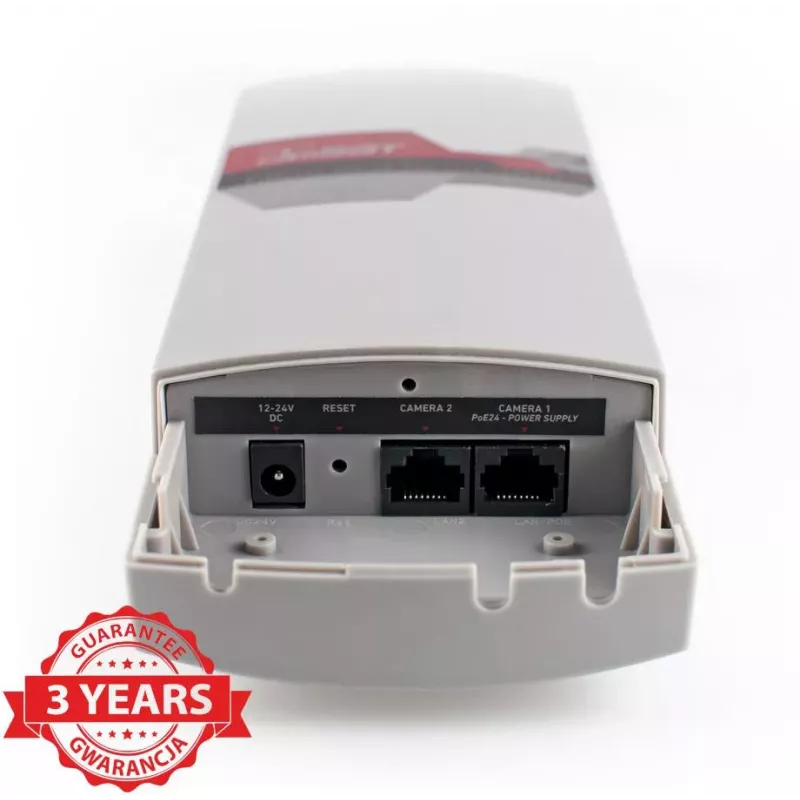

• Ethernet: 2x 10/100BASE-TX (RJ-45)
• Power: 24V Passive PoE (injector included)
• Enclosure: IP65, -30°C to +70°C
• Security: WPA/WPA2, WEP 64/128-bit
• Management: Web GUI, SNMP
• Mounting: Pole mount kit included

Recommendations

For optimal performance, ensure clear line-of-sight between units. Use shielded CAT5e or better cable for PoE connections. The device supports DFS channels; verify local regulatory compliance.
