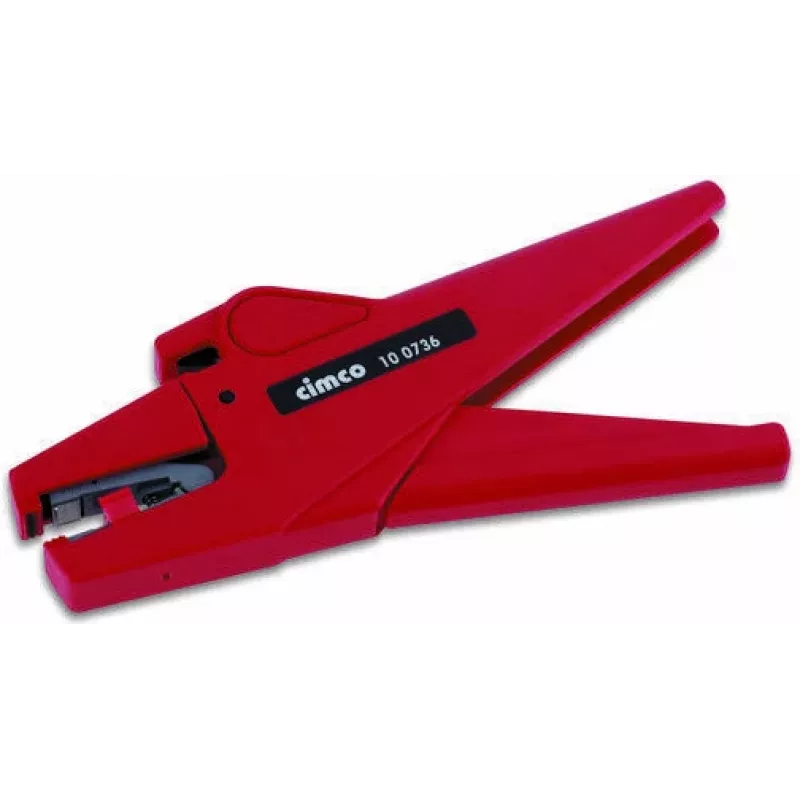

Cable stripper Cimco 100736 Red

The Cimco 100736 cable stripper is designed for precise stripping of finely wired and solid conductors with PVC insulation. It handles round, oval and flat cables from 0.2 mm² up to 6 mm² and offers an adjustable stripping length from 4 to 18 mm using a stop for repetitive work. The tool includes an integrated high-performance wire cutter and features an automatic opening gripping device and a special self-adjusting, interchangeable segmented cutter that prevents damage to conductors. The lightweight, ergonomic design and 198 g weight provide comfortable handling during prolonged use.

Advantages

Adjustable stripping length and a stop for consistent results; compatible with a wide range of conductor cross-sections (0.2–6 mm²); self-adjusting segmented cutter to avoid conductor damage; automatic opening of the gripping device speeds workflow; built-in high-performance cutter eliminates the need for a separate tool; ergonomic, energy-saving construction and low weight (198 g) for easier handling.

Suitable for (tasks / use cases)

• Electrical installation and wiring work
• Panel assembly and control cabinet wiring
• Maintenance and repair of electronic equipment
• Professional electricians and DIY electrical projects

Key specifications

• Brand: cimco
• Model / MPN: 100736
• EAN: 4021103007365
• Suitable conductor cross-section: 0.2–6 mm²
• Stripping length (adjustable): 4–18 mm
• Insulation type: PVC
• Functions: insulation stripper, integrated wire cutter
• Weight: 198 g
• Color: red

How to use

Select the desired stripping length using the stop (4–18 mm), insert the cable into the stripper so the insulation aligns with the cutter, close the tool to engage the self-adjusting segmented cutter and gripping device, then pull the tool or cable to remove the insulation. Use the integrated cutter to trim conductors as needed. The automatic opening mechanism releases the gripping device after stripping for quicker repeated operations.

Recommendations

Use the Cimco 100736 on PVC-insulated cables within the specified cross-section range (0.2–6 mm²). Avoid using the stripper on non-specified insulation types or conductors outside the stated sizes to prevent damage. Regularly check and replace the interchangeable segmented cutter when wear affects performance.
