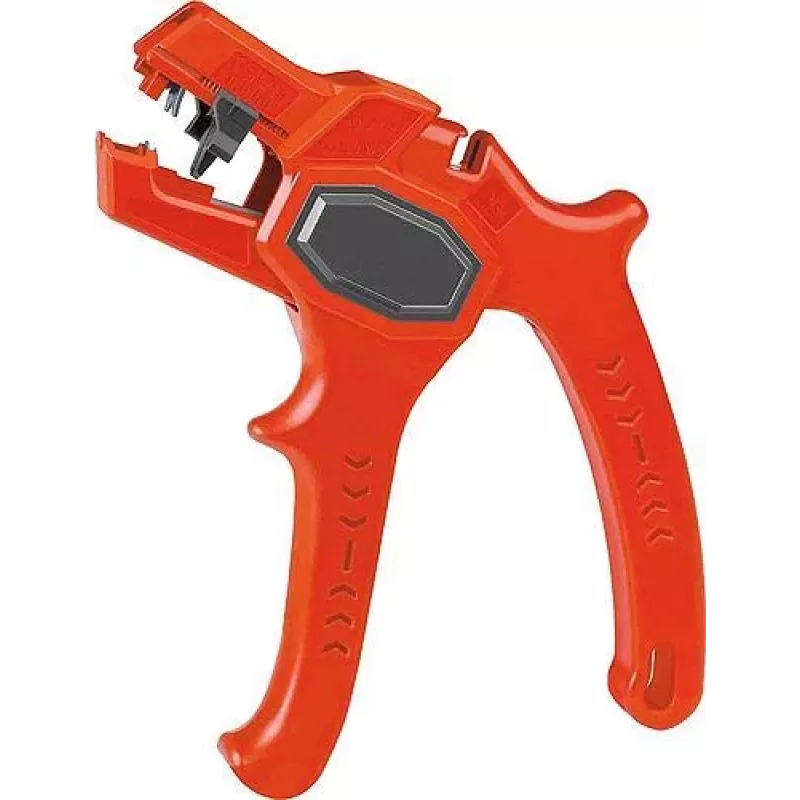

Cable stripper Cimco 10 0780 Black Red

The Cimco 10 0780 cable stripper is designed for stripping flexible stranded wires and solid conductors across a range of insulation types. The tool has an ergonomic pistol shape and a length stop that is adjustable from 6.0 mm to 15.0 mm. It automatically adapts to conductor cross-sections from 0.2 mm² to 6.0 mm² using a built-in sensor system and includes an integrated side cutter suitable for wires up to 2.5 mm².

Advantages

The cable stripper offers automatic width adjustment for conductor sizes between 0.2 mm² and 6.0 mm², reducing the need for manual settings. Its ergonomic pistol shape provides comfortable handling during repeated use. An adjustable length stop (6.0–15.0 mm) enables consistent strip lengths. The stable side cutter is easily accessible and can cut wires up to 2.5 mm². The tool is built for use with a wide range of insulation types.

Suitable for

• Stripping flexible stranded wires
• Stripping solid conductors
• Work with various insulation types
• Cutting wires up to 2.5 mm²

Key specifications

• Model: Cimco 10 0780 (100780)
• EAN: 4021103007808
• Adjustable strip length: 6.0–15.0 mm
• Automatic conductor cross-section range: 0.2 mm² – 6.0 mm²
• Side cutter capacity: up to 2.5 mm²

How to use

Place the conductor into the stripper head and allow the sensor system to automatically adjust to the conductor cross-section. Set the desired strip length using the adjustable length stop (6.0–15.0 mm). Rotate or actuate the tool according to its ergonomic design to remove insulation cleanly. Use the integrated side cutter where necessary to cut the wire to length before or after stripping.

Recommendations

Use the tool within the specified conductor range (0.2 mm²–6.0 mm²) and do not attempt to strip conductors with insulation types or diameters outside these limits. For cutting, use the side cutter only on wires up to 2.5 mm². Inspect the blades periodically for wear and replace the tool if blades become damaged to ensure safe and reliable operation.
