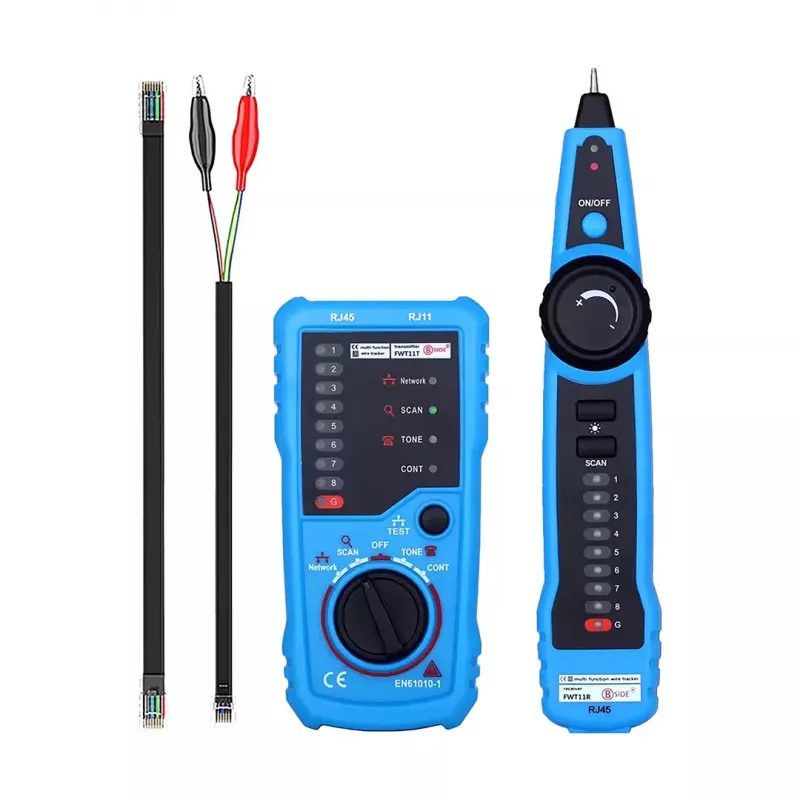

BSIDE FWT11 E6244 Wire Pair Finder Meter Network Cable Tester with PoE Detection and Tone Generator

The BSIDE FWT11 E6244 stands apart from typical cable testers by combining wire tracking, cable mapping, PoE detection, and non-contact voltage sensing in one compact tool. Instead of juggling separate devices for each task, you get a transmitter and receiver pair that covers RJ45 and RJ11 lines up to 300 meters, with a clear LED flashlight and headphone jack for noisy environments. The 130 kHz tone is easy to trace, while the receiver's low-battery indicator prevents surprises mid-job. This model is built for technicians who need reliable results without unnecessary complexity.

Highlights

• Wire pair finder with tone generator for tracing cables behind walls or in bundles
• Tests RJ45 Ethernet and RJ11 telephone cables for open, short, cross, and normal wiring
• PoE detection shows voltage and polarity to verify power-sourcing equipment
• Non-contact voltage (NCV) detection adds safety when working near live circuits
• Receiver includes LED flashlight and headphone jack for dark or loud workspaces
• Supports tracking up to 300 meters with a 130 kHz tone

In daily use

Whether you're mapping a patch panel, verifying PoE on an access point, or locating a break in a long run, the FWT11 E6244 gives you clear feedback. The transmitter sends a tone that the receiver picks up with adjustable sensitivity, so you can isolate a single cable among many. The cable mapping function instantly identifies miswires and shorts, saving time on troubleshooting. Because the receiver runs on three AAA batteries and the transmitter on a 9V battery (both not included), you can easily swap in fresh cells when the low-battery indicator lights up. The compact dimensions—126 x 64 x 30 mm for the transmitter and 175 x 42 x 27 mm for the receiver—fit easily in a tool bag.

Full specifications

• Product type: Network cable tester & wire tracker
• Supported cable types: RJ45 (Ethernet), RJ11 (Telephone)
• Test type: Open, short, cross, normal wiring
• PoE detection: Yes (voltage & polarity identification)
• NCV detection: Yes
• Tone frequency: 130 kHz
• Maximum tracking distance: 300 m
• Transmitter power supply: 1x 9V 6F22 battery (not included)
• Receiver power supply: 3x 1.5V AAA batteries (not included)
• Low battery indicator: Yes
• LED flashlight: Yes (on receiver)
• Headphone jack: Yes (on receiver)
• Port types: RJ45, RJ11
• Safety compliance: CE, RoHS
• Operating temperature: 0°C to 40°C
• Storage temperature: -10°C to 50°C
• Transmitter dimensions: 126 x 64 x 30 mm
• Receiver dimensions: 175 x 42 x 27 mm

Final note

The BSIDE FWT11 E6244 is a practical choice for network installers and maintenance staff who need a reliable, all-in-one cable tester and tracker. Its clear feedback and robust feature set make daily troubleshooting faster and more accurate.
