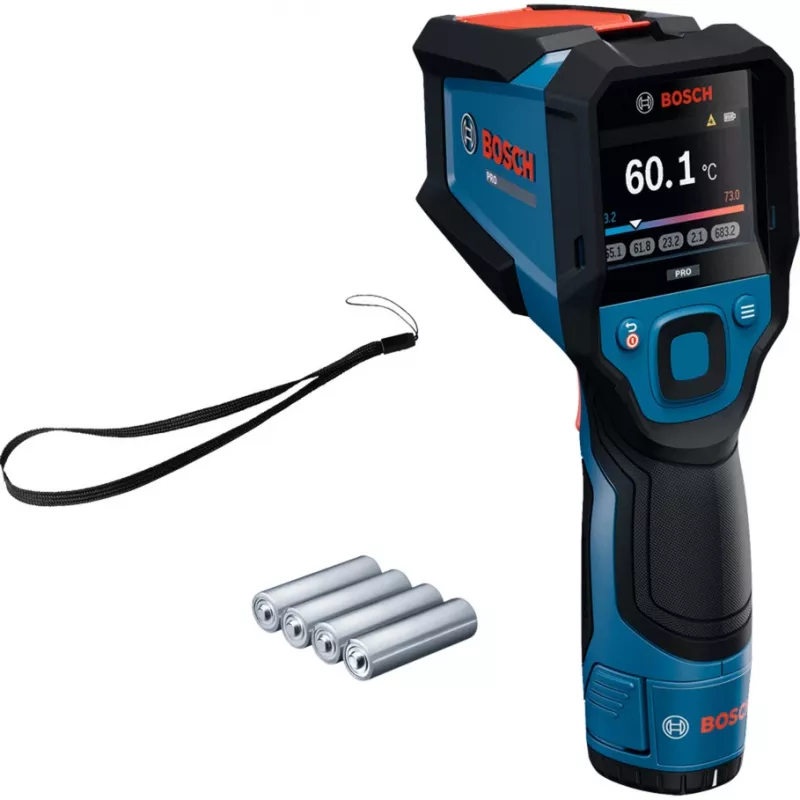

Bosch GIS 12V-700-14 Thermal Detector (Retail)

The Bosch GIS 12V-700-14 is a professional thermal detector designed for precise temperature measurement and thermal imaging. With a measurement range from -20 °C to +700 °C and a high-resolution 256x192 pixel infrared sensor, it delivers accurate and detailed thermal images. Ideal for building diagnostics, electrical inspections, and HVAC maintenance, this device helps identify heat loss, moisture issues, and electrical faults efficiently.

Advantages

High-resolution thermal imaging with 49,152 measurement points for detailed analysis. Dual power source flexibility: operates on Bosch Professional 12V Li-ion batteries or 4x AA batteries with an adapter. Bluetooth and USB-C connectivity for easy data transfer and reporting. Rugged IP54 protection ensures dust and splash resistance for job site durability.

Suitable for

• Building energy audits and insulation inspection
• Electrical panel and component temperature monitoring
• HVAC system diagnostics and maintenance
• Plumbing leak detection and moisture analysis

Key specifications

• Measurement Range: -20 °C to +700 °C
• Accuracy: ±2.0 °C (for -20 to 100 °C), ±2% (for 100 to 700 °C)
• Infrared Resolution: 256 x 192 pixels
• Thermal Sensitivity (NETD): <50 mK
• Field of View: 50° x 38°
• Display: 3.5" TFT LCD
• Power: 12V Li-ion battery (Bosch Professional) or 4x AA batteries (with adapter)
• Connectivity: Bluetooth, USB-C
• Protection: IP54
• Laser Class: Class 2
• Emissivity: Adjustable 0.01 to 1.00
• Image Storage: Internal memory (approx. 600 images)
• Refresh Rate: 9 Hz
• Tripod Thread: 1/4"

Recommendations

For optimal performance, use Bosch Professional 12V batteries. The device is compatible with Bosch GBA 12V and GAA 12V series batteries and chargers. Always calibrate emissivity for accurate surface temperature readings.
