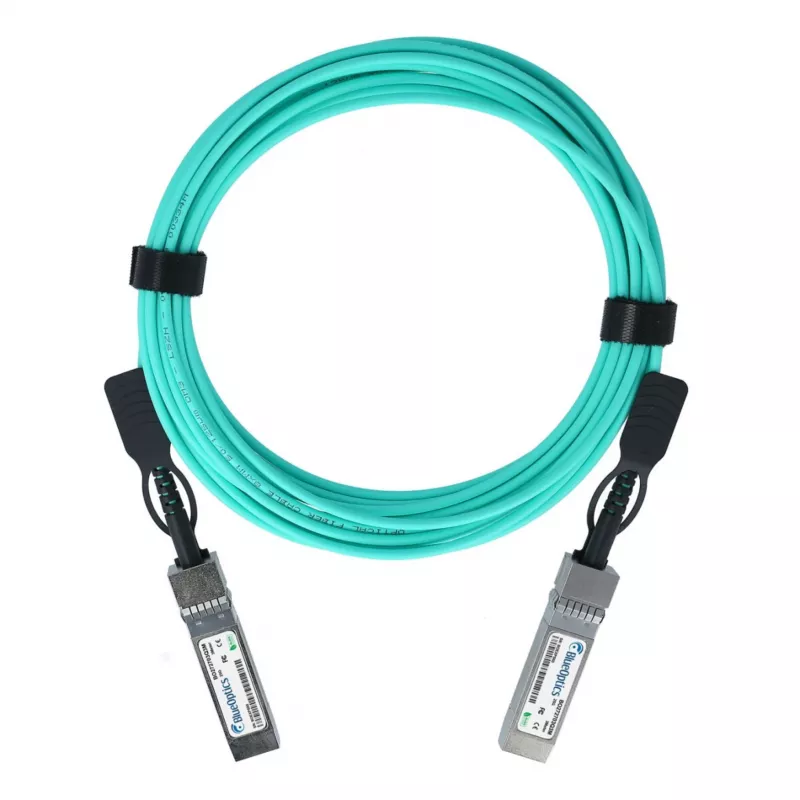

BlueOptics TP-Link SFP28-AOC-20M Compatible Active Optical Cable SFP28 20m

The BlueOptics BO272703Q20M is a high-performance Active Optical Cable (AOC) designed for 25 Gigabit Ethernet connectivity. It is fully compatible with TP-Link SFP28-AOC-20M and provides a reliable, cost-effective solution for data center and enterprise networking applications. With a length of 20 meters, it offers flexible deployment options for short-range interconnects.

Advantages

This AOC cable integrates multi-mode fiber and SFP28 connectors, delivering 25 Gbps data rates with low power consumption (<1.5W per end). It is hot-swappable, supports full-duplex operation, and complies with IEEE 802.3by (25GBASE-SR) standards. The LSZH jacket ensures safety in confined spaces.

Suitable for

• Data center interconnect
• High-performance computing (HPC)
• Enterprise networking
• Storage area networks (SAN)

Key specifications

• Cable type: Active Optical Cable (AOC)
• Connector type: SFP28 (both ends)
• Data rate: 25 Gbps (25 Gigabit Ethernet)
• Cable length: 20 meters
• Fiber type: Multi-mode (integrated)
• Power consumption: <1.5W per end
• Voltage: 3.3V
• Standards: IEEE 802.3by, SFF-8402, SFF-8431, SFF-8472, RoHS
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Jacket material: LSZH
• Duplex mode: Full-duplex

Recommendations

For optimal performance, use with compatible TP-Link SFP28 switches and network cards. Ensure proper handling of the optical connectors to avoid damage.
