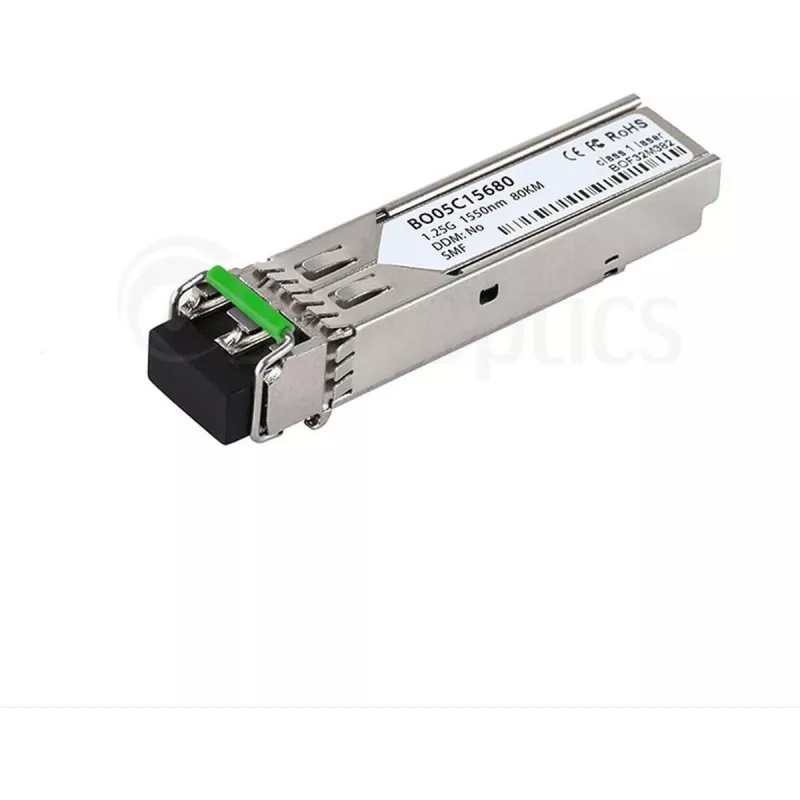

Fiber optic transceiver CBO 1100-0143-BO — single-module media converter

CBO 1100-0143-BO — single-module media converter is a fiber optic transceiver designed to provide reliable optical network connectivity by converting electrical signals to optical signals and vice versa. The module integrates into existing network equipment to extend copper-based links over fiber or to connect fiber segments, supporting industrial and commercial network infrastructures that require stable link interfaces and simple maintenance.

Advantages

The single-module media converter offers compact form factor and compatibility with standard fiber links, enabling straightforward integration into rack or chassis systems. It supports stable data transmission over optical fiber and reduces electromagnetic interference issues common to copper cabling. The transceiver's design focuses on ease of installation, predictable behavior in mixed-media networks and reduced downtime due to simplified replacement or servicing procedures.

Suitable for

• Extending Ethernet links over fiber in office networks
• Connecting network equipment across floors or buildings
• Industrial network segments requiring immunity to EMI
• Integrating fiber links into existing copper-based switches or routers
• Maintenance or temporary link conversion during infrastructure upgrades

Key specifications

• Function: single-module media converter (electrical-to-optical and optical-to-electrical conversion)
• Media supported: optical fiber (single-mode or multi-mode as specified by installation)
• Form factor: compact transceiver module suitable for module slots or adapters
• Interface: standard electrical interface for connection to host equipment and optical interface for fiber link
• Application environment: industrial and commercial networks
• Mounting: module insertion into compatible chassis or adapter bays for easy installation and replacement

How to use

Install the transceiver into a compatible module slot or media converter chassis following the host equipment manufacturer instructions. Connect the electrical port to the host device using the appropriate copper interface and attach the fiber cable to the optical port, ensuring correct fiber type and connector polarity. Power up the host system and verify link status through device LEDs or management interfaces. For maintenance, follow standard hot-swap or power-down procedures defined by the chassis or host equipment.

Recommendations

Use compatible fiber types and connectors for the link distance and data rate required. Verify optical budget, insertion loss and connector cleanliness before commissioning. Operate the module within the environmental limits specified by the host chassis and perform regular inspections of fiber connections to maintain stable optical performance.
