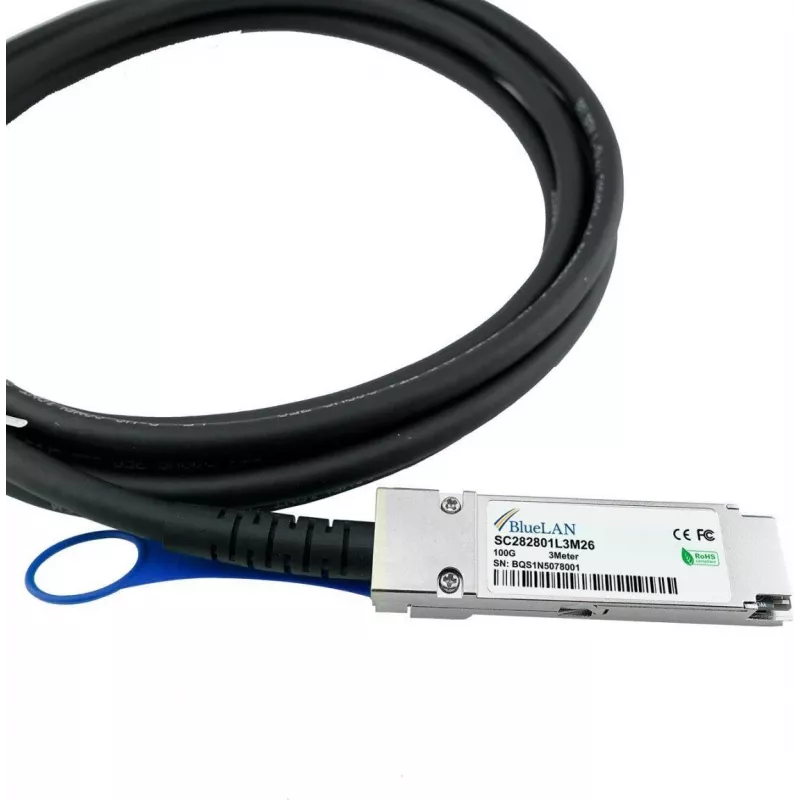

BlueOptics Edge Core ET7402-DAC-2M Compatible BlueLAN QSFP28 Direct Attach Cable, 100GBASE-CR4, Infiniband EDR, 30AWG, 2 Meter (ET7402-DAC-2M-BL)

The BlueOptics Edge Core ET7402-DAC-2M compatible BlueLAN QSFP28 Direct Attach Cable (DAC) is a high-performance passive copper cable designed for 100 Gigabit Ethernet and Infiniband EDR networks. It provides a cost-effective, low-power solution for short-range interconnects within data centers and high-performance computing environments.

Advantages

This DAC cable offers reliable, hot-pluggable connectivity with minimal power consumption (<0.5W). It is fully compliant with SFF-8665 (QSFP28 MSA) and supports 100GBASE-CR4 and Infiniband EDR standards. The 30 AWG wire gauge ensures flexibility while maintaining signal integrity over the 2-meter length.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Edge Core ET7402-DAC-2M compatible switches and network devices
• 100GbE and Infiniband EDR networks

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Transfer Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• Infiniband Standard: EDR
• Cable Length: 2 Meter
• Wire Gauge: 30 AWG
• Cable Material: Passive Copper
• Compatibility: Edge Core ET7402-DAC-2M
• Form Factor: QSFP28
• Hot-Pluggable: Yes
• Power Consumption: <0.5W
• Protocol Support: Ethernet, Infiniband
• MSA Compliance: SFF-8665
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Voltage Supply: 3.3V
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 ports and 100GBASE-CR4 or Infiniband EDR. This cable is an ideal replacement or upgrade for OEM Edge Core ET7402-DAC-2M cables.
