Blue Technology MGR-13-S-AL Paint Thickness Gauge

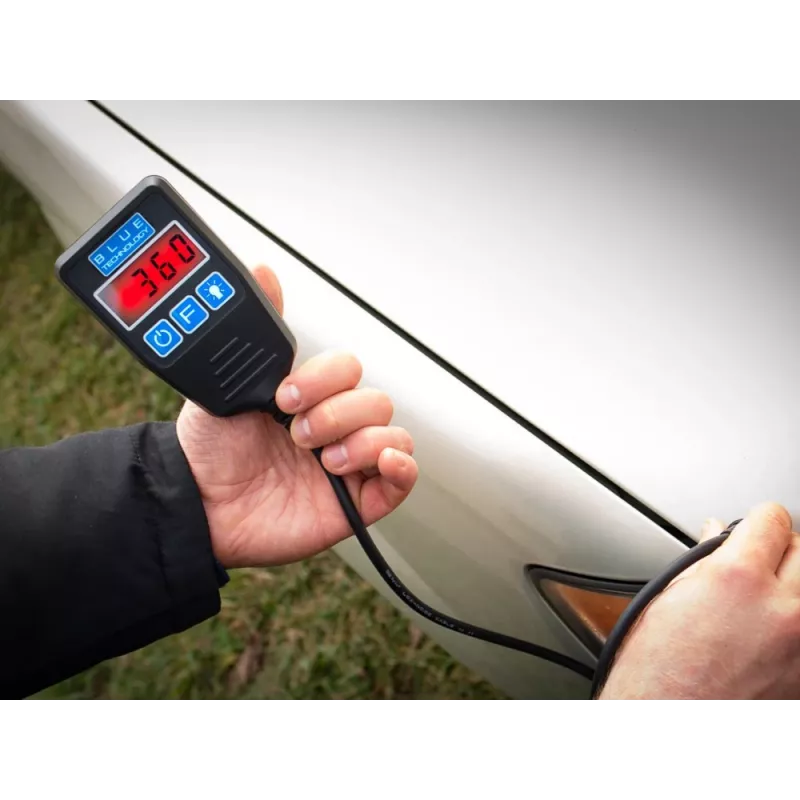

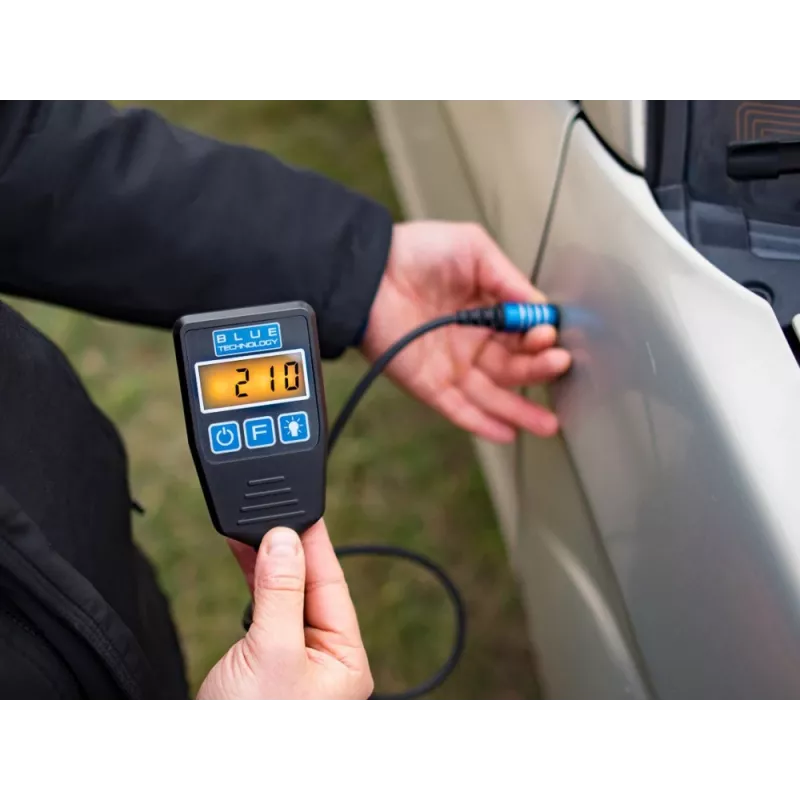

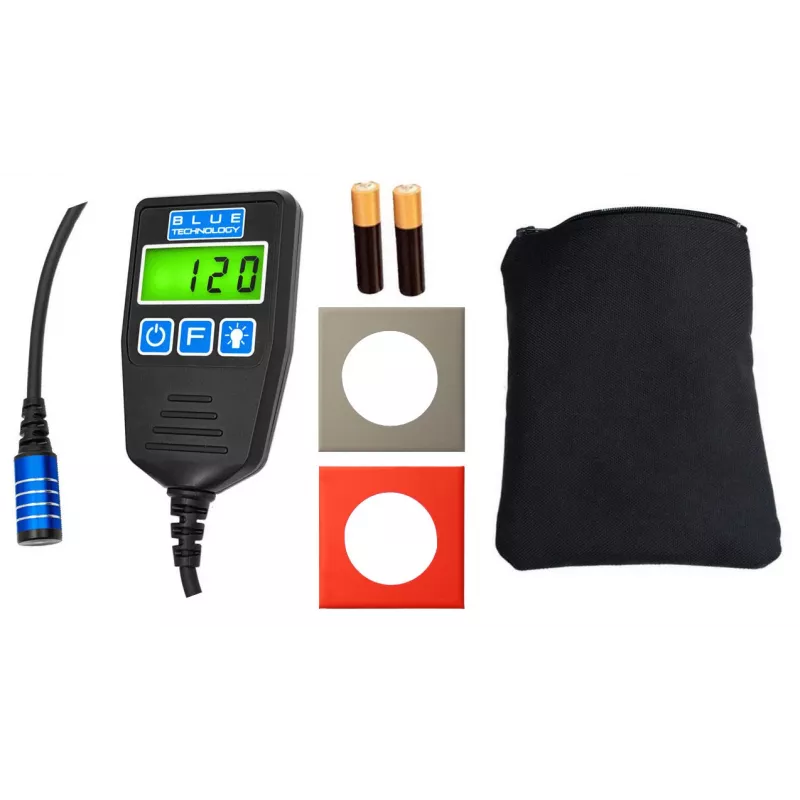

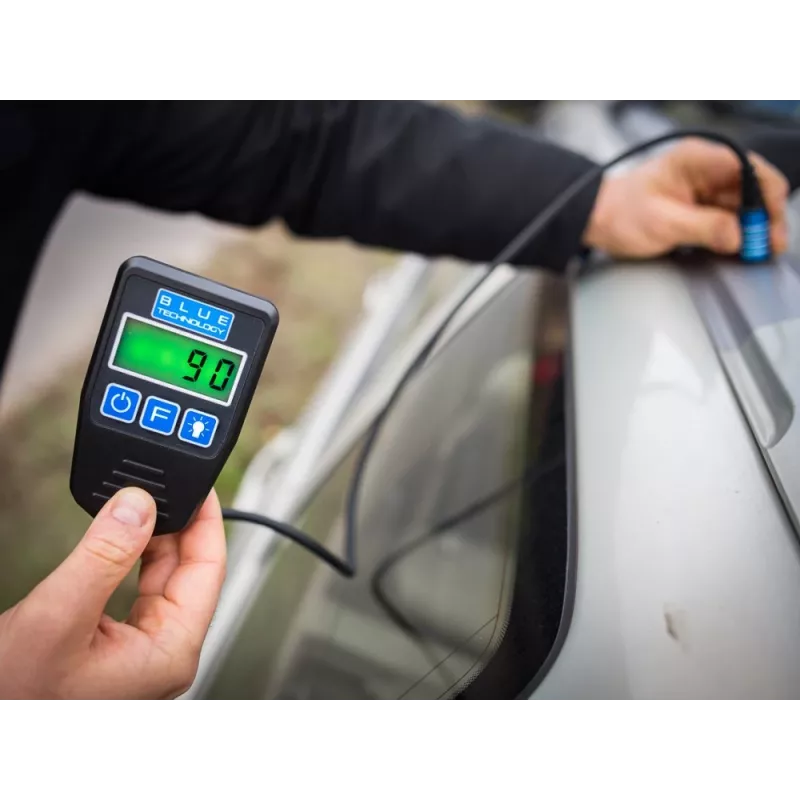

The Blue Technology MGR-13-S-AL is a professional paint thickness gauge designed for precise measurement of coatings on ferrous (Fe), non-ferrous (NFe), and aluminum (Al) substrates. With an external probe and automatic substrate detection, it ensures accurate readings across a wide range of applications, from automotive refinishing to industrial quality control.

Advantages

This gauge offers high accuracy and resolution, with a measurement range of 0 to 2000 µm. It features both single and continuous measurement modes, automatic and manual calibration, and clear visual and audible feedback via LED and sound signaling. The backlit LCD display and long battery life (up to 4000 measurements) make it ideal for extended use in various environments.

Suitable for

• Automotive paint inspection
• Industrial coating thickness measurement
• Quality control in manufacturing
• Marine and aerospace coating assessment

Key specifications

• Substrate Compatibility: Ferrous (Fe), Non-Ferrous (NFe), Aluminum (Al)
• Measurement Range: 0 to 2000 µm (0 to 2 mm)
• Resolution: 1 µm (0-500 µm), 10 µm (500-2000 µm)
• Accuracy: ±(2% + 10 µm) for 0-500 µm; ±(2% + 20 µm) for 500-2000 µm
• Probe: External, cable length 80 cm
• Display: LCD with backlight
• Units: µm, Mils

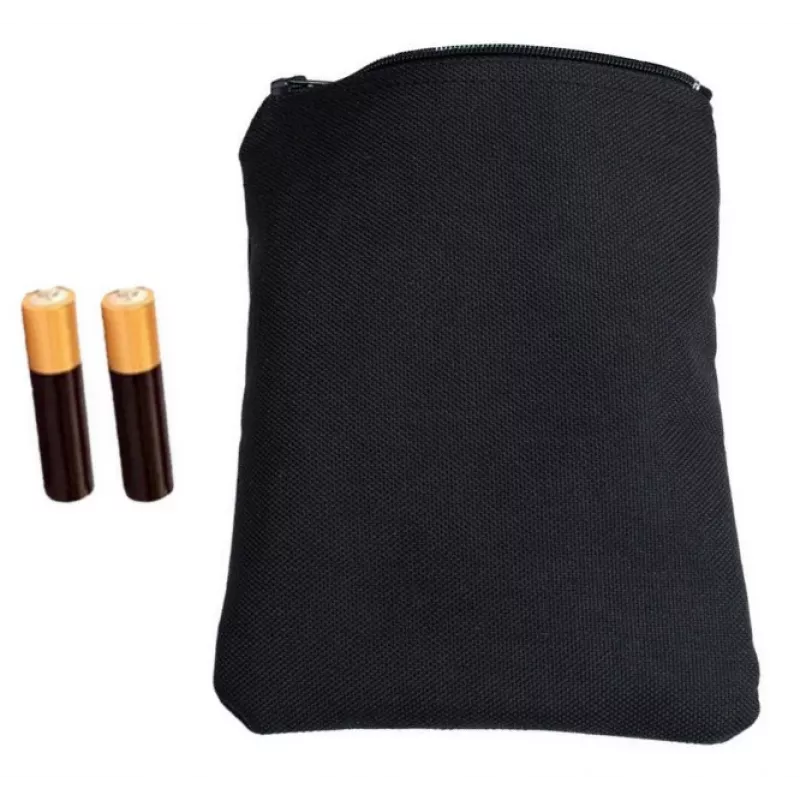

• Power: 2x AAA batteries (not included)
• Automatic Shut-off: After 2 minutes of inactivity
• Operating Temperature: -20°C to +40°C

Recommendations

For best results, calibrate the gauge before each use using the provided calibration standards. Ensure the surface is clean and free of debris. The MGR-13-S-AL is a reliable tool for professionals seeking consistent and accurate coating thickness measurements.
