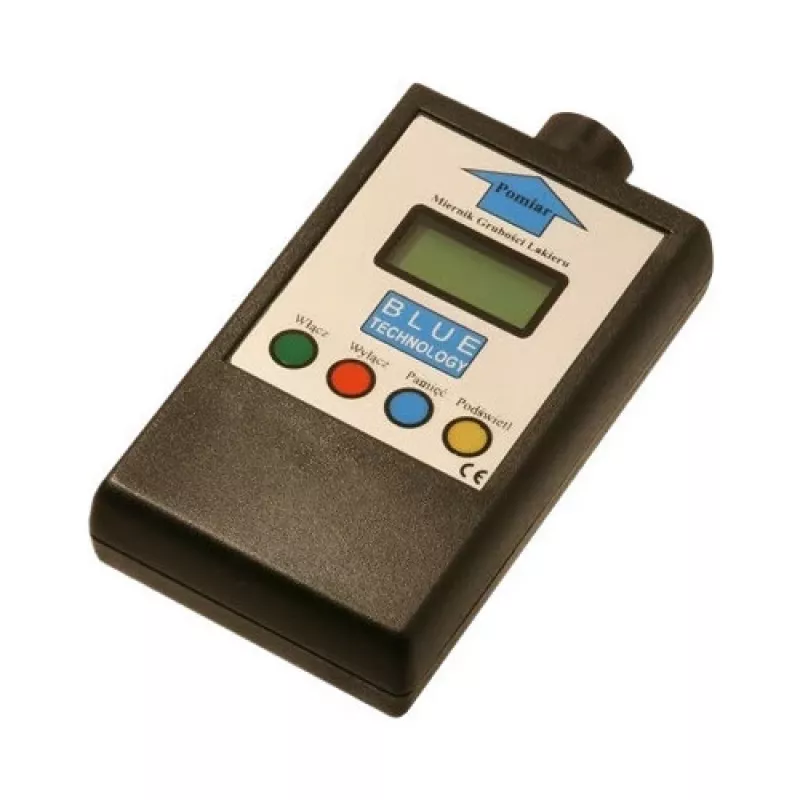

Blue Technology MGR-10-FE Paint Thickness Gauge

The Blue Technology MGR-10-FE is a professional paint thickness gauge designed for precise measurement of coatings on ferrous metal substrates. Using magnetic induction (F-probe) technology, it delivers accurate readings for quality control, automotive inspection, and industrial maintenance.

Advantages

High accuracy with ±(10 µm + 2%) in the 0-500 µm range, automatic and manual zeroing, built-in LED flashlight and UV lamp for enhanced visibility, and automatic shutdown to conserve battery life.

Suitable for

• Automotive paint thickness measurement
• Industrial coating inspection on steel and galvanized steel
• Quality control in manufacturing
• Marine and aerospace coating assessment

Key specifications

• Measurement range: 0 to 2000 µm (0 to 78.7 mils)
• Resolution: 1 µm (0-500 µm), 10 µm (>500 µm)
• Accuracy: ±(10 µm + 2%) for 0-500 µm; ±(20 µm + 2%) for >500 µm
• Units: µm, mils
• Probe: Integrated
• Display: Backlit LCD
• Power: 2x AAA batteries (included)
• Operating temperature: -20°C to 40°C
• Automatic shutdown: Yes
• Calibration: Automatic, manual zeroing
• Minimum measurement area: 15 x 15 mm
• Minimum curvature radius (convex): 5 mm; (concave): 25 mm
• Measurement modes: Single, Continuous
• Included accessories: Calibration plate (steel), calibration foil, carrying case, batteries

Recommendations

For best results, perform zero calibration on an uncoated ferrous substrate before each use. Store in the provided carrying case when not in use.
