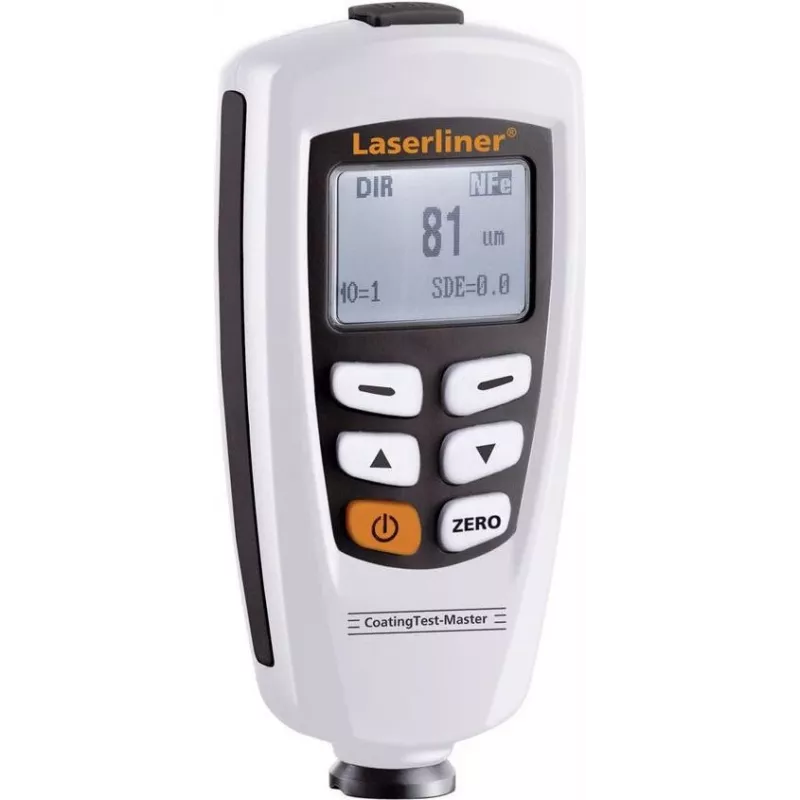

Laserliner CoatingTest-Master Coating Thickness Gauge, 0-1250 µm, Magnetic Induction & Eddy Current, Black/White 082.150A

Measure coatings on ferrous and non-ferrous metals with laboratory-grade precision: the Laserliner CoatingTest-Master delivers an accuracy of ±(3% + 1 µm) across a 0–1250 µm range, making it the go-to tool for automotive, industrial, and corrosion-protection inspections.

Overview

The CoatingTest-Master is a professional coating thickness gauge that combines magnetic induction and eddy current measurement principles to handle both steel and aluminum substrates automatically. Its backlit LCD shows readings in micrometers or mils, while single and continuous measurement modes adapt to flat or curved surfaces. With storage for up to 400 readings and statistical functions (min, max, average), you can document quality control on the spot.

What stands out

• Dual measurement technology: automatically detects ferrous (Fe) and non-ferrous (NFe) bases.
• High resolution: 0.1 µm in the 0–100 µm range, 1 µm above 100 µm.
• Versatile calibration: zero-point, two-point, and multi-point calibration for maximum accuracy on different substrates.
• Data logging: saves 400 measurements for later review or transfer.
• Compact and rugged: black/white housing with ergonomic grip, runs on two AAA batteries.

Technical details

• Measurement principle: magnetic induction (Fe) and eddy current (NFe)
• Measurement range: 0–1250 µm (0–49.2 mils)
• Accuracy: ±(3% + 1 µm)
• Resolution: 0.1 µm (0–100 µm), 1 µm (>100 µm)
• Display: backlit LCD
• Units: µm, mil
• Calibration modes: zero-point, two-point, multi-point
• Data storage: up to 400 readings
• Measurement modes: single, continuous
• Statistics: min, max, average
• Power: 2x AAA batteries (included)
• Auto power off: yes
• Operating temperature: 0°C to 40°C
• Colour: black/white

Our verdict

The Laserliner CoatingTest-Master is a precise, user-friendly gauge that covers both common metal types without switching probes. Its generous memory and statistical tools make it ideal for professionals who need reliable coating thickness data in the field or lab.
