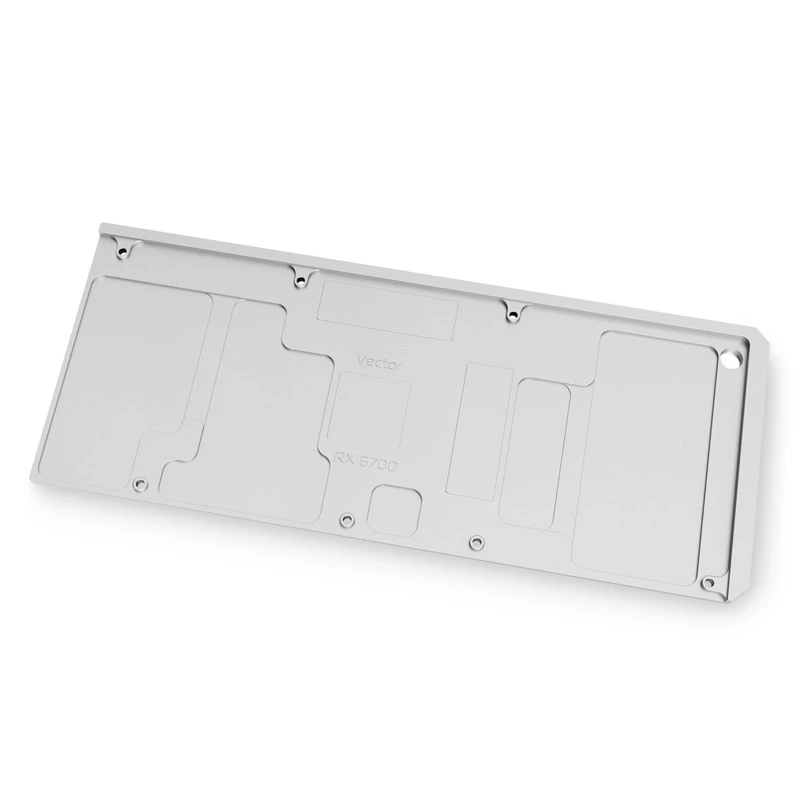

Backplate EK Water Blocks Quantum Vector RX 6700XT White 249.5x102x6 mm

EK-Quantum Vector RX 6700XT Backplate - Nickel is a CNC-machined retention backplate made from nickel-plated aluminum that is compatible with the EK-Quantum Vector RX 6700XT D-RGB - Nickel + Plexi water block. The backplate spans the full length of the graphics card PCB, providing an integrated aesthetic finish while also contributing to passive heat dissipation for the backside of the voltage regulation module (VRM), VRAM and GPU core.

Advantages

The backplate is precision CNC machined from nickel-plated aluminum for a durable, accurately fitting component. It covers the entire PCB length to provide a uniform appearance and adds passive cooling to components on the card's rear side. The product is compatible with the specified EK Vector RX 6700XT D-RGB - Nickel + Plexi water block to ensure correct fitment.

Suitable for

• Custom liquid-cooled AMD Radeon RX 6700 XT builds using EK-Quantum Vector RX 6700XT D-RGB - Nickel + Plexi water block
• PC builds where rear-side passive cooling of VRM, VRAM and GPU core is desired
• Users seeking a clean, uniform appearance for the graphics card PCB

Key specifications

• Material: Nickel-plated aluminum (CNC machined)
• Compatibility: EK-Quantum Vector RX 6700XT D-RGB - Nickel + Plexi water block
• Dimensions (manufacturer data): 249.5 x 102 x 6 mm
• Finish: Nickel (product title indicates nickel finish; product data lists white variant dimensions and sizing)

How to use

Install the backplate in accordance with EK Water Blocks' installation instructions for the EK-Quantum Vector RX 6700XT series. Remove the graphics card from the system, detach any existing retention solutions as instructed, align the backplate with the PCB and the water block mounting points, and secure it using the supplied screws and standoffs. Reinstall the graphics card and verify proper clearance and fit before powering the system.

Recommendations

Ensure compatibility by confirming your graphics card uses the EK-Quantum Vector RX 6700XT D-RGB - Nickel + Plexi water block mounting layout. Follow anti-static precautions during installation and tighten fasteners to the manufacturer's recommended torque values to avoid PCB damage.
