AV transmitter & receiver Lindy 500m Cat.6 3.5mm Analogue Audio Extender

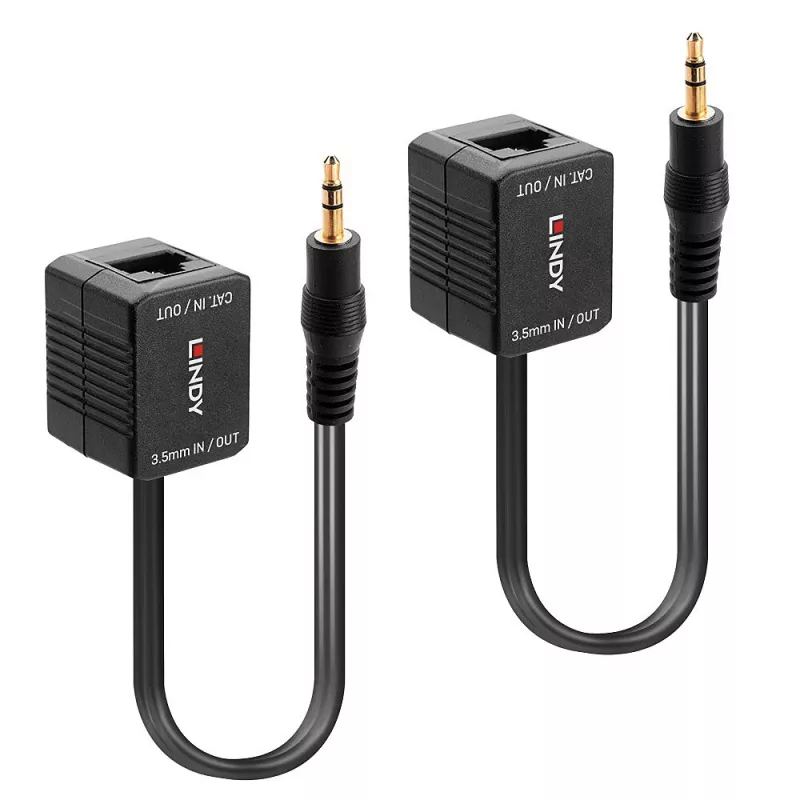

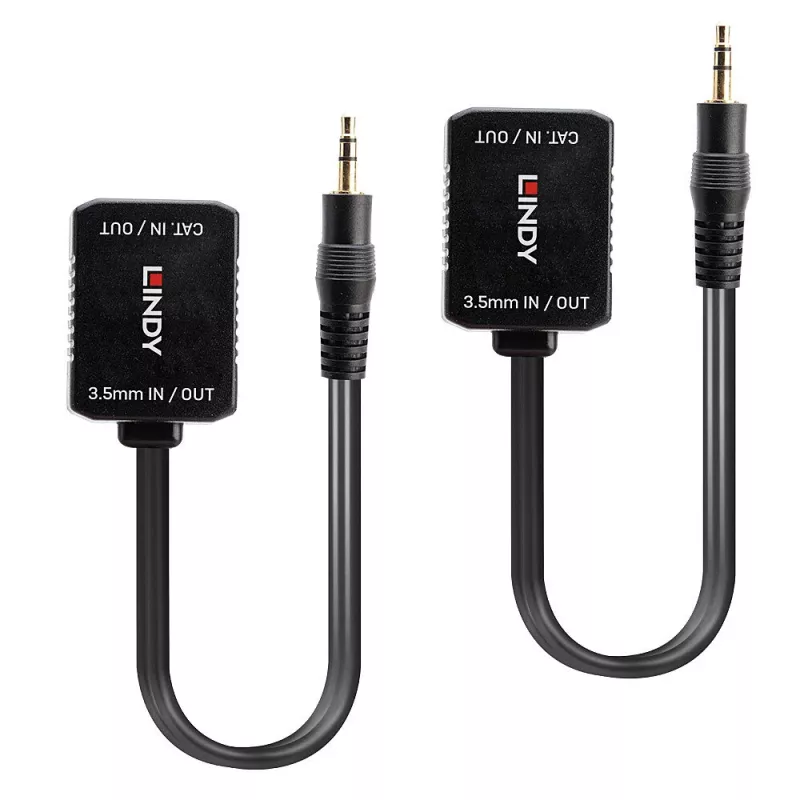

The Lindy 500m Cat.6 3.5mm Analogue Audio Extender is a compact AV transmitter and receiver pair designed to extend stereo analogue audio signals over common network cabling. The units use a pigtail-style design and require no external power, enabling discreet placement near source devices and analogue speakers while maintaining compatibility between either transceiver at both ends.

Advantages

This extender transmits stereo analogue audio over Cat5 or Cat6 cabling, offering a practical means to carry audio signals over longer runs than standard audio leads. Its compact, power-free design simplifies installation and reduces cable clutter. The transceiver pair is interoperable, so either unit can be used at the source or destination.

Suitable for

• Extending stereo analogue audio between rooms using Cat5/Cat6 cable
• AV installations where power outlets near devices are limited
• Connecting analogue sources (3.5 mm) to remote speakers or mixers

Key specifications

• Type: AV transmitter & receiver
• Connector: 3.5 mm analogue audio
• RJ-45 input ports: 1
• RJ-45 output ports: 1
• Cable types supported: Cat5, Cat6
• Maximum transfer distance: 100 m
• Product colour: Black
• Brand: Lindy
• MPN: 70450
• EAN: 4002888704502

How to use

Connect the 3.5 mm analogue audio output of the source device to the 3.5 mm input on one transceiver. Run Cat5 or Cat6 cable between the transceiver units and plug into the RJ-45 ports. Connect the 3.5 mm output on the second unit to the destination device or speaker. No external power is required; once connected, the units transmit the stereo audio over the network cable.

Recommendations

For best performance use quality Cat6 cable and keep cable runs within the specified maximum transfer distance of 100 m. Avoid running the cable alongside high-voltage power lines to reduce the risk of interference.
