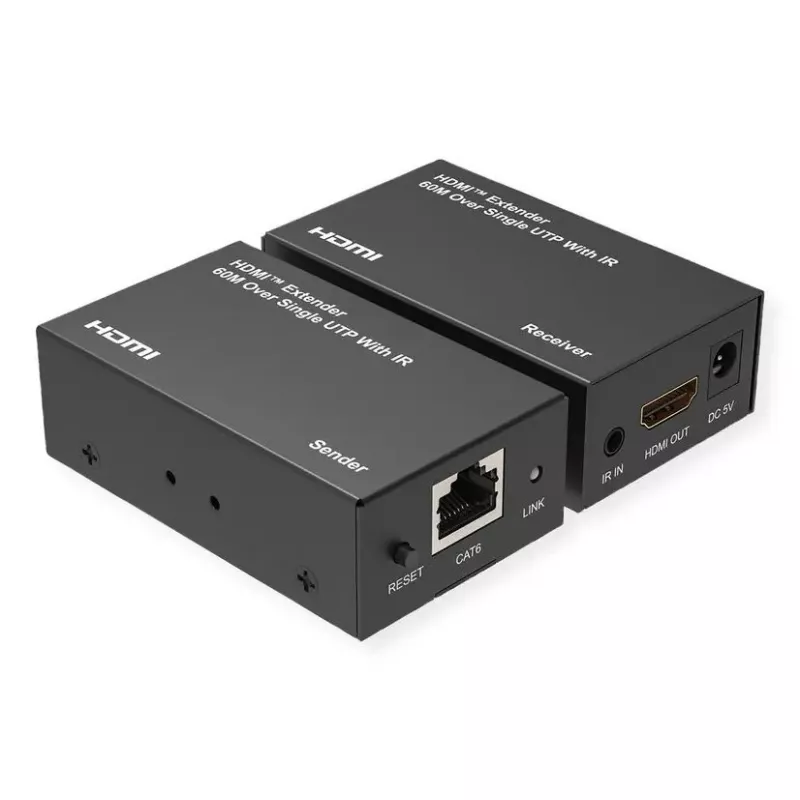

AV extender (transmitter & receiver) VALUE 14.99.3569 — Cat6, up to 1920×1200, 5V/1A

VALUE 14.99.3569 is a wired AV extender set consisting of a transmitter and a receiver that extends HDMI signals over a single Cat6 cable. The system supports resolutions up to 1920×1200 and transmits HDMI video and audio, as well as IR control signals, over distances up to the cable limits (specified up to 60 m with Cat6). Both units share compact housing dimensions of 48×84×26 mm; the receiver weight is 117 g. The extender operates from a 5 V/1 A DC supply and is intended for point-to-point connections between a source and a remote display or receiver.

Advantages

The VALUE AV extender provides a simple wired solution for extending HDMI signals without relying on network switches or converters. It preserves Full HD video quality and supports 60 Hz refresh rates within supported resolutions, while the included transmitter and receiver simplify installation for direct HDMI extension. The compact form factor and single-Cat6 cabling reduce installation complexity and space requirements compared with bulkier extender systems.

Suitable for

• Conference rooms and meeting room displays
• Digital signage and point-of-sale screens
• AV installations requiring a remote HDMI display up to 60 m
• Remote control of a video source via IR over the extender link

Key specifications

• Supported maximum resolution: up to 1920×1200 (including Full HD 1920×1080 @60 Hz)
• Maximum recommended cable distance: up to 60 m over Cat6 (point-to-point)
• Power supply: 5 V / 1 A (DC input)
• Form factor (each unit): 48 × 84 × 26 mm
• Receiver weight: 117 g
• Connector type: HDMI signal extension over single Cat6 cable; wired DC power input

How to use

Connect the transmitter unit to the HDMI output of your source device and the receiver unit to the HDMI input of the display. Use a single Cat6 cable to link the transmitter and receiver units; observe the recommended maximum distance (up to 60 m with Cat6) for optimal video quality. Provide 5 V/1 A DC power to the units via the wired DC-in jack as required. If IR remote control is needed, connect the IR emitter/receiver according to the installation notes so that control signals travel over the extender link to the source.

Recommendations

For reliable performance, use a solid-quality Cat6 cable with minimal splices and avoid running the cable alongside high-voltage power lines. Verify HDMI cable lengths from source to transmitter and from receiver to display are short to reduce signal loss. Test the connection at the intended resolution and refresh rate before final installation and ensure both units receive stable 5 V/1 A power.
