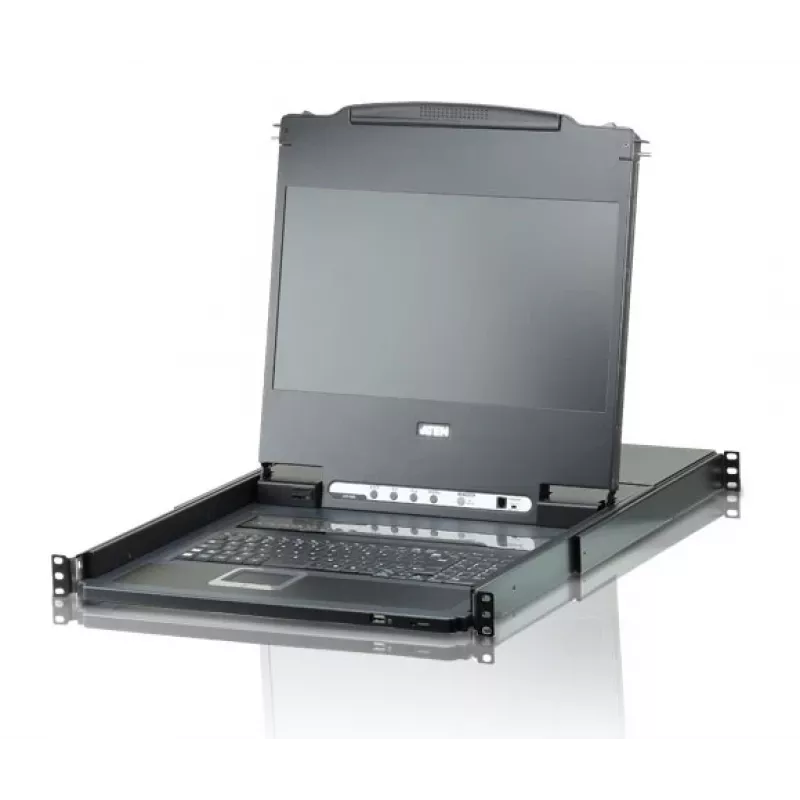

ATEN CL6708MW 19 inch Full HD DVI-D 8-Port Rack-Mount LCD KVM Console, 1U, Black

Managing multiple servers in a crowded data center or server room often means juggling separate monitors, keyboards, and mice, wasting rack space and complicating administration. The ATEN CL6708MW solves this by integrating a 19-inch Full HD LCD panel, keyboard, and touchpad into a single 1U rack-mountable console, while also providing 8 KVM ports to control up to 8 computers directly. With DVI-D video input and daisy-chain support for up to 31 additional switches, it streamlines server management and maximizes rack efficiency.

Who is it for

This console is ideal for IT administrators, data center technicians, and system integrators who need reliable, space-saving access to multiple servers. It suits environments where rack space is at a premium, such as server rooms, network closets, and industrial control rooms. Its Full HD resolution and broad OS compatibility make it suitable for mixed-platform environments including Windows, Mac, Sun, and Linux.

Main features

• Integrated 19-inch widescreen LCD with 1920 x 1080 Full HD resolution for crisp, detailed display.
• 8 KVM ports for direct control of up to 8 computers, with daisy-chain support for up to 31 additional switches.
• DVI-D Single Link video interface ensures high-quality digital video from connected servers.
• Space-saving 1U rack-mount design with included rack mounting kit.
• Built-in keyboard and touchpad eliminate the need for external peripherals.
• On-Screen Display (OSD) for easy server selection and configuration.
• Two-level password security to prevent unauthorized access.
• Hot-pluggable: add or remove computers without powering down the switch.
• Audio support for 2-channel stereo, enabling multimedia applications.
• Firmware upgradeable for future enhancements.

Specifications

• Display diagonal: 19 inches
• Display resolution: 1920 x 1080 (Full HD)
• Video interface: DVI-D (Single Link)
• KVM ports: 8
• Console ports: 2 x USB 2.0 Type A (front), 1 x USB 2.0 Type B (rear)
• Keyboard & mouse: Integrated keyboard and touchpad
• Rack height: 1U
• Daisy chain: Yes, up to 31 additional KVM switches
• Audio: Yes, 2-channel stereo
• On-Screen Display (OSD): Yes
• Hot-pluggable: Yes
• OS compatibility: Windows, Mac, Sun, Linux
• Security: 2-level password security
• Power consumption: 28.8W (120V) / 29.2W (230V)
• Color: Black
• Mounting: Rack-mount

Tips

To maximize the benefits of this console, plan your cabling carefully to keep the rear of the rack tidy. Use the OSD to assign meaningful names to each connected server for quick identification. Since the console supports daisy chaining, you can start with one unit and expand as your server count grows. For security, set strong passwords and change them regularly. Ensure adequate ventilation in the rack to maintain optimal operating temperature.
