KVM switch ATEN CL5708M Rack mounting Black 1U 17 inch LCD

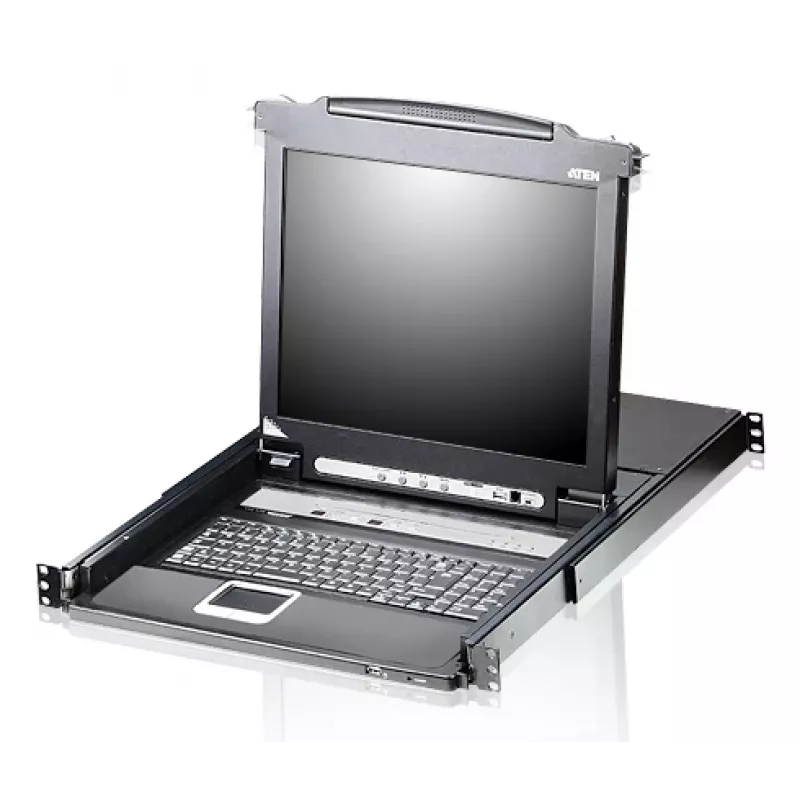

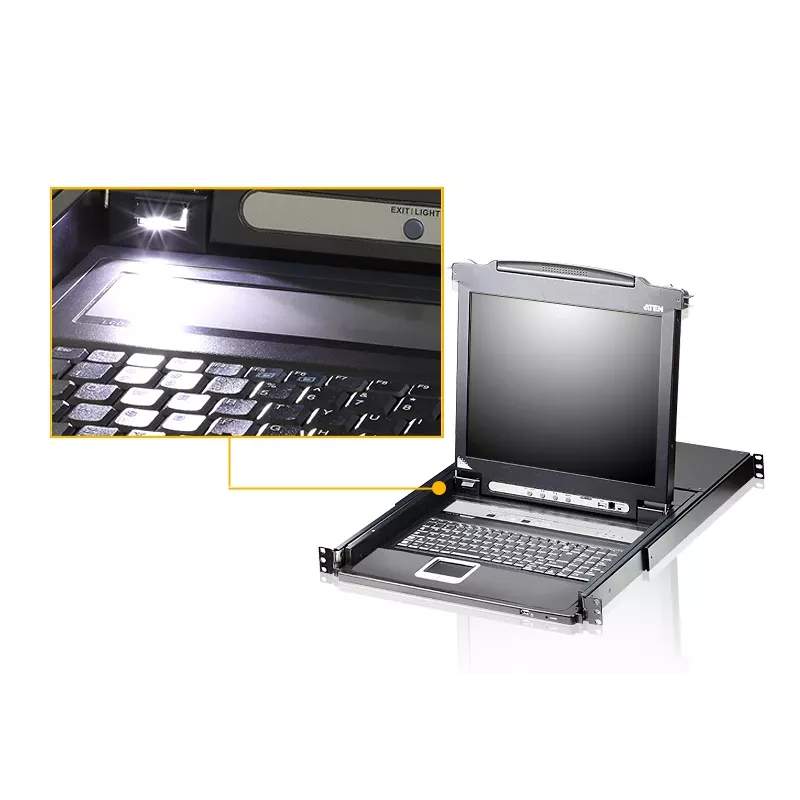

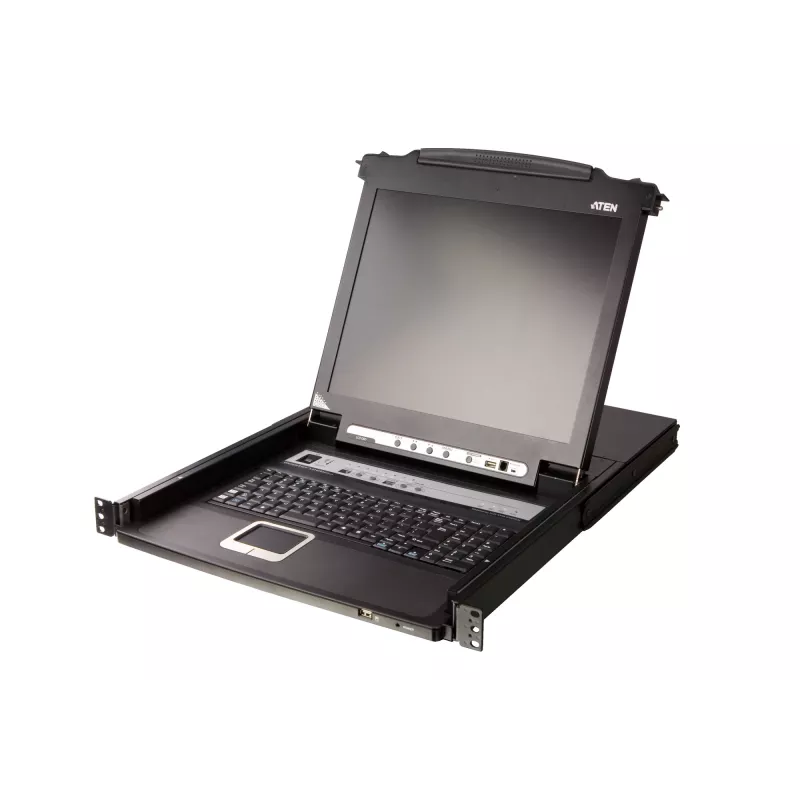

The ATEN CL5708M Slideaway is a 1U rack-mountable KVM switch with an integrated 17" LED-backlit LCD, keyboard and touchpad, designed to provide centralized control of multiple computers from a single console. The unit supports up to 8 directly connected computers and can be expanded by daisy-chaining additional switches to manage up to 256 systems. The CL5708M supports video resolutions up to 1920 x 1200 and offers both PS/2-style SPHD-17 and USB connectivity for keyboard and mouse, all housed in a metal and plastic chassis suitable for server racks.

Advantages

The CL5708M saves rack space by combining a 17" monitor, keyboard and touchpad into a single 1U sliding housing while still providing expansion via daisy-chaining. It offers versatile connection options with SPHD-17 and USB ports, supports high-resolution video, and its modular design allows the KVM section to be detached for easier maintenance. An optional fingerprint identification module is available to add an extra layer of access control.

Suitable for

• Server rooms and data centers where compact, rack-mounted multi-computer management is required
• IT cabinets managing up to 8 local servers with the ability to expand via daisy-chain
• Environments needing a built-in monitor and integrated keyboard/touchpad to save console space

When it may not be suitable

This model is aimed at rack environments and may not be appropriate for desktop users who do not need 1U rack mounting or an integrated 17" display. It also does not include specific multimedia features beyond standard KVM functionality, so use cases requiring advanced audio/video switching or very large displays may require a different solution.

Key specifications

• Form factor: 1U rack-mountable sliding housing with integrated 17" LED-backlit LCD
• Local ports: supports up to 8 directly connected computers (expandable via daisy-chain to control up to 256)
• Video support: up to 1920 x 1200 resolution
• Console interfaces: SPHD-17 and USB ports for keyboard and mouse
• Integrated input device: keyboard and touchpad
• Construction: metal and plastic chassis
• Modular design: detachable KVM section for maintenance

How to use

Mount the CL5708M in a standard 19" equipment rack using appropriate rack-mount hardware. Connect each server to the switch using the compatible KVM cables on the SPHD-17 or USB ports. Use the integrated keyboard, touchpad and on-screen display to switch between connected computers. To expand capacity, daisy-chain additional compatible CL5708 series switches according to the manufacturer’s instructions to increase the total number of controllable systems.

What to consider before purchase

• Verify that a 1U rack-mounted integrated monitor and keyboard meet your console and rack space requirements
• Confirm the needed number and type of KVM connections (SPHD-17 or USB) for your servers
• Check the supported maximum video resolution (1920 x 1200) against your display needs
• Decide whether optional accessories such as fingerprint identification or specific rack-mount kits are required

Recommendations

For reliable operation in multi-server environments, use ATEN-compatible KVM cables, follow the recommended rack-mount procedures, and plan cable routing to maintain airflow and ease of maintenance. Consider enabling the fingerprint access option if stricter console access control is required.
