ATEN CL3700NW rack console 47 cm (18.5 inch) 1920 x 1080 pixels Metal, Plastic Black 1U

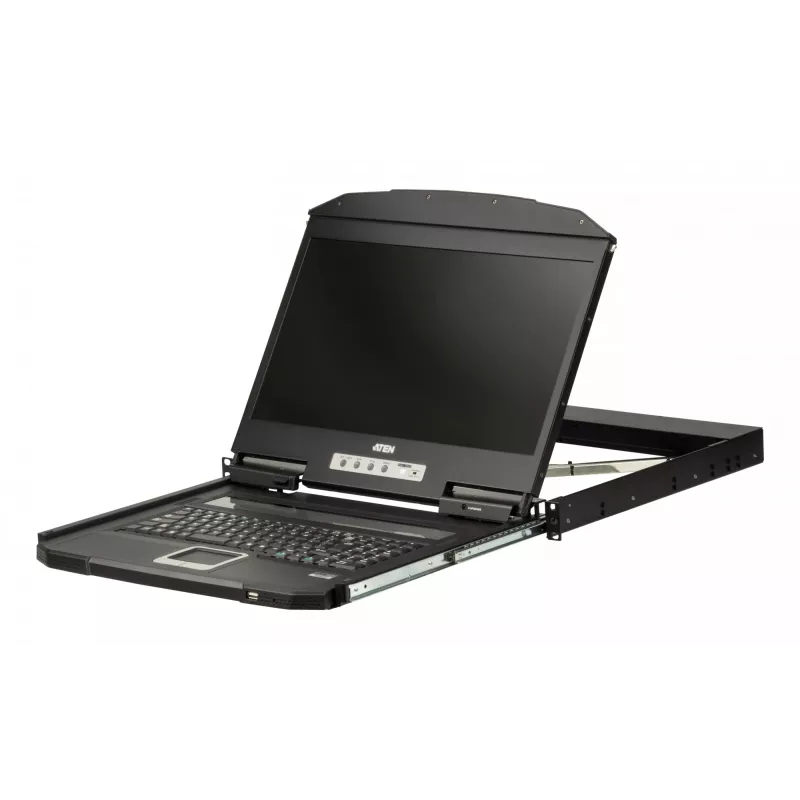

The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

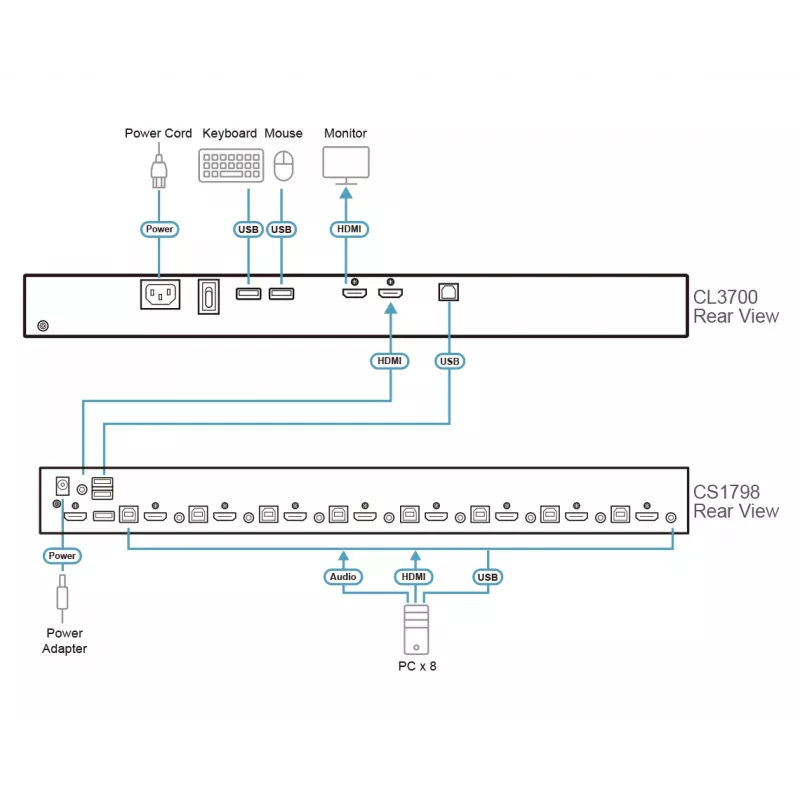

The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.

With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

In addition, testing is performed using the MIL-STD-810G* procedure to verify High/Low Temperature, Vibration, and Shock Resistance. MIL-STD-810G testing ensures the CL3700NW operates reliably in harsh environments by subjecting the equipment to rigorous testing. This process emphasizes the equipment's environmental design and limits under real-world conditions it will encounter throughout its lifespan, such as operating in extreme temperature ranges or on vessels experiencing frequent high vibrations and shocks on the ocean.

Note:
Suggest to collocate with 2K-0003/ 2K-0004, and 2X-EA12 (LockPro HDMI cable lock), 2X-EA07 (Lok-U-Plug cable holder) to install

ATEN CL3700NW. Display diagonal: 47 cm (18.5"), Display resolution: 1920 x 1080 pixels, Display: LCD. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. Keyboard language: Nordic, Keyboard layout: QWERTY. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Input current: 1 A. Other operating systems supported: SunOS

How to use

Install the CL3700NW into a 19" rack occupying 1U of rack space and connect the supplied AC, HDMI and USB cables. Use the integrated keyboard and touchpad to control the connected computer, or attach an external HDMI monitor and USB keyboard/mouse to the rear-panel ports for a second console. A front-panel USB port is available for an external mouse if required. Ensure the unit receives suitable AC power within the specified 100–240 V range.

Recommendations

For reliable operation in mobile or space-constrained installations, mount the console securely in a compatible 19" rack, route cables to avoid strain on connectors, and use the external console ports when simultaneous local and remote monitoring or extended display space is needed.
