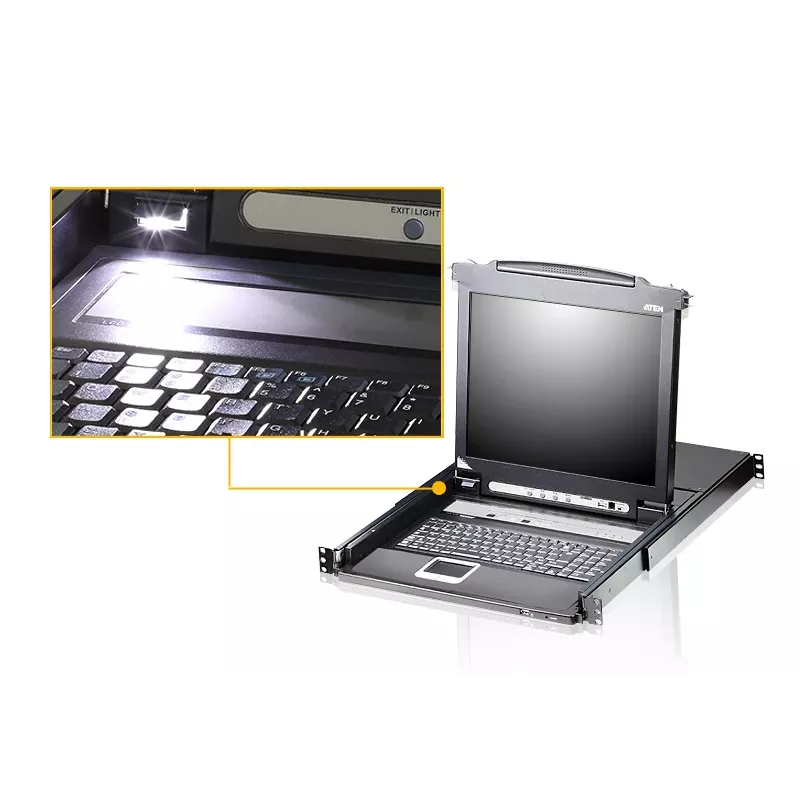

ATEN 8-Port 19 inch LCD KVM Switch (USB - PS/2 VGA) with USB Peripheral port

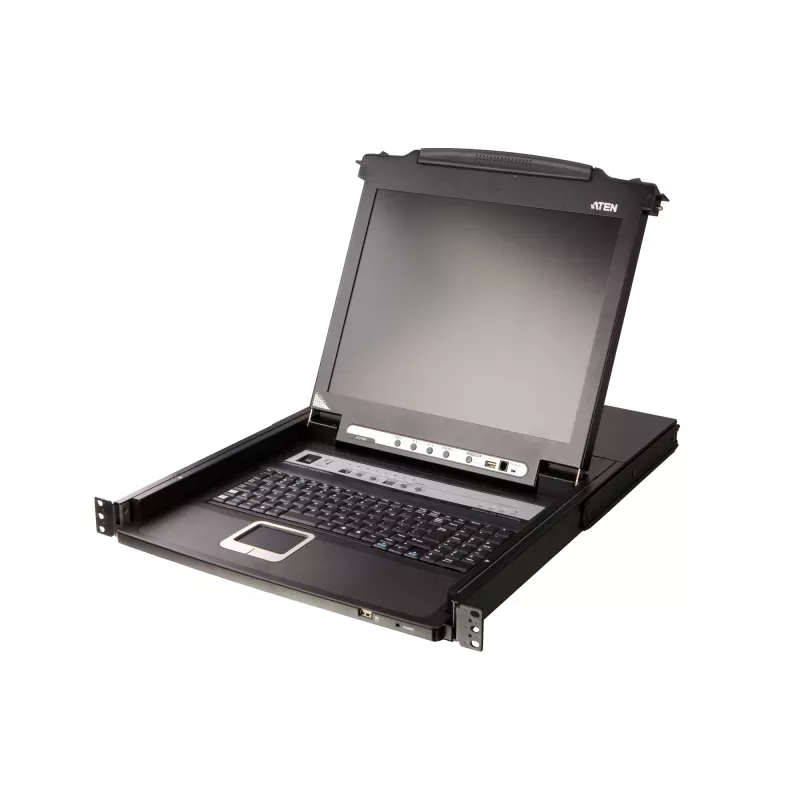

The ATEN CL5708N Rack mounting Black is a 1U Slideaway™ LCD KVM switch designed to provide centralized control of multiple servers from a single integrated console. The unit combines a built-in LED-backlit 17"/19" compatible LCD, keyboard and touchpad in a sliding rack-mount housing, saving rack space while offering direct access to connected systems. It supports up to 8 computers locally and can be daisy-chained with additional KVM switches to expand control capacity. The device supports a maximum display resolution of 1280 x 1024 pixels and uses a USB Type-A interface for mouse connectivity. Encased in a metal and plastic housing, the switch is compact (689.2 mm W x 480 mm D x 44 mm H) and suitable for professional server room environments where durable, space-efficient management hardware is required.

Advantages

The CL5708N integrates an LCD monitor, keyboard and touchpad into a 1U sliding form factor, reducing the need for separate console equipment in the rack. Its support for USB mouse connectivity and a 1280 x 1024 maximum resolution provides consistent local control and clear system access. The metal and plastic construction offers durability for continuous use, while the 1.255-second scan interval enables timely switching and monitoring across connected systems. Compact dimensions and rack-mount compatibility make it practical for environments with limited space.

Suitable for

• Server rooms and data centers with limited rack space
• IT cabinets requiring local console access to multiple servers
• Environments where a single operator must manage up to eight computers locally
• Installations that may expand control via daisy-chaining additional KVM units

Key specifications

• Form factor: 1U rack-mountable sliding KVM console
• Local control capacity: up to 8 computers
• Expandable control: supports daisy-chaining additional switches for larger deployments
• Integrated display: LED-backlit 17"/19" compatible LCD, maximum resolution 1280 x 1024 pixels
• Mouse interface: USB Type-A
• Scan interval: 1.255 seconds
• Construction: metal and plastic housing
• Dimensions: 689.2 mm (W) x 480 mm (D) x 44 mm (H)
• Weight: 13.39 kg
• Colour: Black

How to use

Mount the CL5708N into a standard 19" rack using the included rack-mount hardware and slide it into position. Connect the console keyboard, monitor and mouse to the integrated front panel and attach KVM cables from each server to the corresponding ports on the rear panel. Power on the unit and connected computers; use the front-panel controls or keyboard shortcuts to switch between connected systems. For larger deployments, link additional compatible KVM switches via daisy-chain ports to expand the number of controllable computers. Refer to the manufacturer's manual for detailed cabling diagrams and keyboard hotkey commands.

Recommendations

Place the unit at a convenient rack height for operator access, ensure proper ventilation around the 1U housing, and secure all rear connections to prevent accidental disconnection. Use high-quality KVM cabling for stable video and USB mouse operation and consult ATEN documentation when planning daisy-chain expansion to maintain reliable control across multiple switches.
