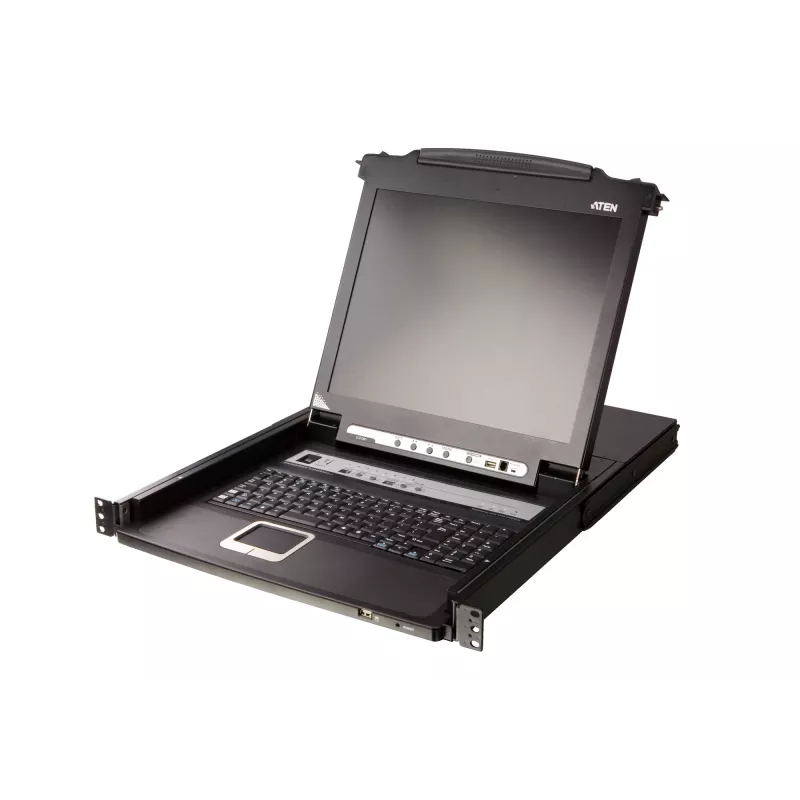

ATEN CL5708M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U

ATEN CL5708M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5708M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5708M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5708M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5708M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5708M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5708M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5708M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5708M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5708M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
R21,170
The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, s... Read More
Stock 5 Code 1206674 Brand ATEN Model CL5708M-ATA-SWG Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.

The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

ATEN CL5708M. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display: LCD. Keyboard port type: USB, Mouse port type: USB. Keyboard language: Swiss, Keyboard layout: QWERTZ. Power consumption (typical): 16 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 642.7 mm, Height: 44 mm, Depth: 480 mm

Key Highlights

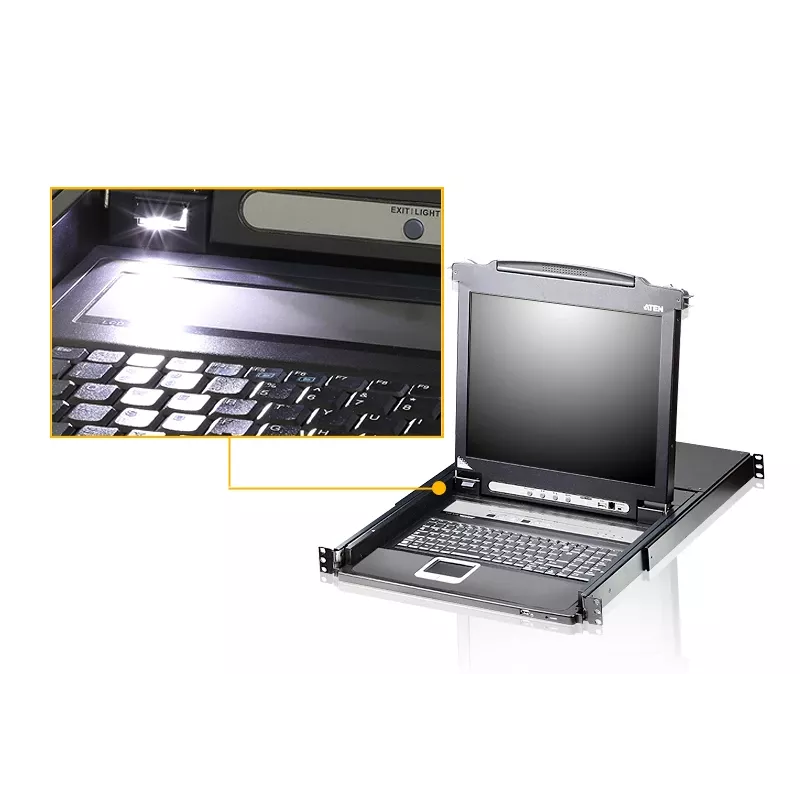

  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
  • Integrated KVM console with 17", 17.3” or 19" LED-backlit LCD monitor in a Slideaway™ housing
  • Daisy-chain up to 31 additional units – controls up to 256 computers from a single console
  • USB port allows each computer to access USB peripherals (inapplicable to CL5708MW)
  • 43.2 cm (17") TFT 1280 x 1024 pixels 250 cd/m² 1000:1
  • Rack mounting 1U
  • On Screen Display (OSD)
  • Keyboard port type: USB Mouse port type: USB
  • Keyboard layout: QWERTZ
  • Metal, Plastic
  • Black
Specifications
AC (power) in
Yes
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
Auto scan delay (max)
255 s
Auto scan delay (min)
1 s
Built-in KVM switch
Yes
Built-in touchpad
Yes
Cables included
AC, KVM
Compliance certificates
RoHS
Console port
SPHD-18
Contrast ratio (typical)
1000:1
Daisy chain
Yes
Depth
480 mm
Display
LCD
Display brightness
250 cd/m²
Display diagonal
43.2 cm (17")
Display resolution
1280 x 1024 pixels
Display type
TFT
Height
44 mm
Hot keys
Yes
Hot-Plug support
Yes
I/O ports
1x DB-25 1x RJ-11
Input current
1 A
Keyboard language
Swiss
Keyboard layout
QWERTZ
Keyboard port type
USB
KVM switch ports quantity
8
LED indicators
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Manual
Yes
Material
Metal, Plastic
Maximum resolution
1920 x 1200 pixels
Mouse port type
USB
Number of computers controlled
256
On Screen Display (OSD)
Yes
On/off switch
Yes
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 50 °C
Pixel pitch
0.264 x 0.264 mm
Power consumption (typical)
16 W
Product colour
Black
Push button
Yes
Quick installation guide
Yes
Rack capacity
1U
Rack mount kit
Yes
Rack mounting
Yes
Response time
5 ms
RJ-45 ports quantity
1
Serial ports quantity
1
Storage temperature (T-T)
-20 - 60 °C
Supported resolutions
1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
USB 2.0 Type-A ports quantity
2
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Weight
13.5 kg
Width
642.7 mm
Windows operating systems supported
Yes

Manual

Open Manual

Leaflet

Open Leaflet
