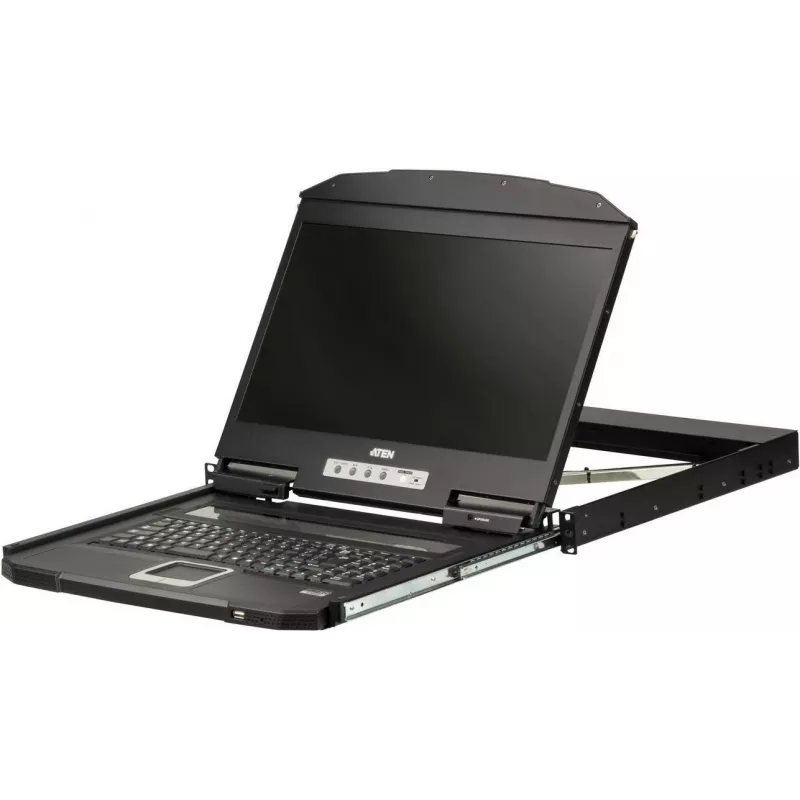

ATEN CL3700NW-IT 1U Short Depth USB HDMI LCD KVM Console - 17 inch 1280x1024, Italian Keyboard

When rack space is at a premium, the ATEN CL3700NW-IT delivers full KVM control without the bulk. This 1U short-depth console integrates a 17-inch TFT-LCD panel, Italian keyboard, and touchpad into a single slide-away unit that mounts in just 391 mm of depth—ideal for shallow racks, wall-mount enclosures, or mobile flight cases where standard consoles simply won't fit. Unlike deep-rack alternatives, it leaves room behind for cable management and airflow, while still providing crisp 1280 x 1024 resolution and multi-platform compatibility.

Highlights

• 1U short-depth design: only 391 mm (15.39") deep for shallow rack installations
• 17-inch TFT-LCD display with 1280 x 1024 @ 75 Hz resolution
• Italian keyboard layout with integrated touchpad
• Supports USB, HDMI, DVI, and VGA KVM connections
• Built-in 2-port USB 2.0 hub for peripheral sharing
• External VGA port for connecting a secondary monitor
• Hot-pluggable: add or remove computers without rebooting
• Compatible with Windows, Linux, Mac, and Sun systems

In daily use

The CL3700NW-IT is a true workhorse for data centers, broadcast studios, and industrial control rooms. Its short depth means you can install it in network cabinets with limited rear clearance, while the slide-away design keeps the console protected when not in use. The Italian keyboard and responsive touchpad provide comfortable local control, and the external VGA port lets you mirror the display to a larger monitor for collaborative troubleshooting. With support for HDMI, DVI, and VGA inputs, you can connect to a wide range of servers and KVM switches without adapters.

Full specifications

• Brand: ATEN
• Model: CL3700NW-IT
• Console type: Single Rail LCD KVM Console
• Rack units: 1U
• Rack depth: Short depth (391 mm / 15.39")
• Display: 17" TFT-LCD
• Maximum resolution: 1280 x 1024 @ 75 Hz
• KVM port interface: USB, HDMI, DVI, VGA
• Keyboard layout: Italian (IT)
• Pointing device: Touchpad
• USB hub: 2-port USB 2.0 Type A
• Console connectivity: 1 x USB Type B (KVM), 2 x USB Type A (peripherals), 1 x HDMI, 1 x DVI, 1 x VGA (external monitor)
• Power input: 100-240V AC, 50/60 Hz (external power adapter)
• Power consumption: 28.8 W max
• Hot-pluggable: Yes
• OS support: Windows, Linux, Mac, Sun
• Mounting: Rack mountable (standard kit included)

Final note

For IT professionals who need reliable KVM access in tight spaces, the ATEN CL3700NW-IT combines a compact footprint with full-featured control—no compromises on resolution, connectivity, or durability.
