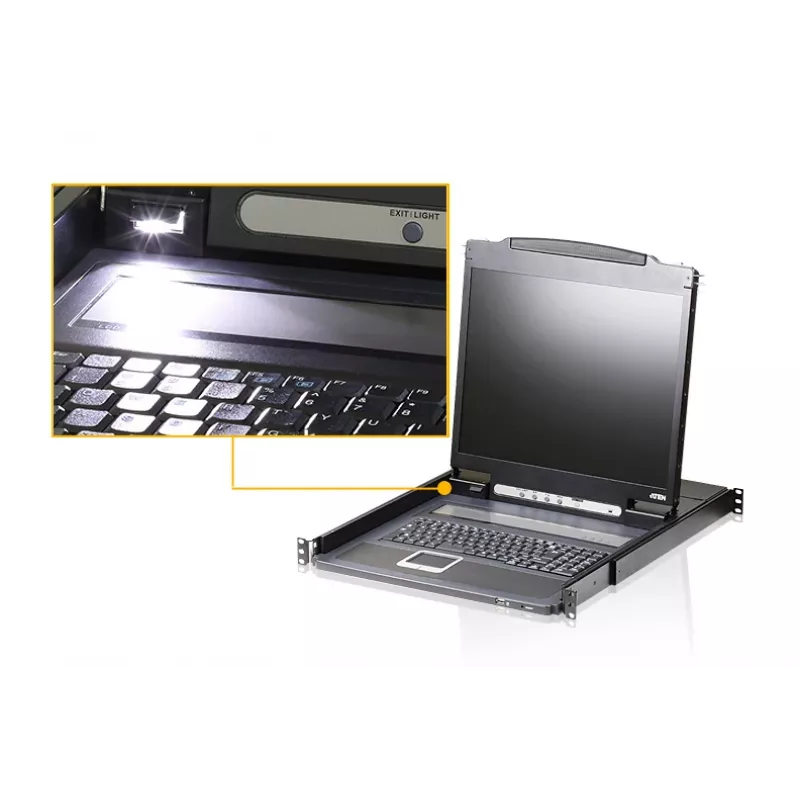

ATEN CL3000N rack console 48.3 cm (19 inch) 1280 x 1024 pixels Aluminium Black 1U

The ATEN CL3000N 19" 1280x1024 LCD USB PS/2 is a 1U rack console that integrates a 19-inch LED-backlit LCD display, keyboard and touchpad into a compact housing designed for server rack environments. The built-in display provides a 1280 x 1024 resolution and a VGA video port, while dual keyboard/mouse interfaces support USB and PS/2 connections. With typical power consumption of 22.7 W and AC input of 100–240 V, the unit balances performance and energy efficiency in a space-saving form factor (589.2 mm × 44 mm × 480 mm). The console is designed for front-end access to compatible KVM switches and has been tested for vibration resistance according to MIL-STD-810G Method 514.6 to ensure reliable operation in demanding environments.

Advantages

The CL3000N combines a high-resolution 19" display, integrated keyboard and touchpad in a single 1U rack-mount chassis, minimizing rack space usage. Support for both USB and PS/2 peripherals ensures compatibility with a wide range of servers and legacy equipment. Low typical power consumption and LED backlighting reduce operating costs and heat output. Built-in VGA connectivity provides straightforward video integration, and MIL-STD-810G vibration testing indicates enhanced durability for environments with mechanical vibration.

Suitable for

• Data center racks requiring a compact, integrated console for local server management
• Server rooms where compatibility with both USB and PS/2 devices is needed
• Environments with moderate vibration where tested durability is beneficial
• IT maintenance stations that need a space-saving KVM console to interface with KVM switches

Key specifications

• Display size: 19-inch LED-backlit LCD
• Native resolution: 1280 × 1024 pixels
• Keyboard/mouse interfaces: USB and PS/2 support
• Video interface: VGA port
• Power: Typical consumption 22.7 W; AC input voltage 100–240 V
• Form factor: 1U rack-mountable console with integrated keyboard and touchpad
• Dimensions: 589.2 mm (W) × 44 mm (H) × 480 mm (D)
• Environmental durability: Vibration tested to MIL-STD-810G Method 514.6 (Common Carrier profile)

How to use

Install the CL3000N into a standard 19-inch rack occupying a single U of space and secure it using the provided mounting points. Connect the console's VGA connector to the server or KVM switch video output and attach keyboard and mouse connections via USB or PS/2 as required. Supply mains power using an AC source within the 100–240 V range. Use the integrated keyboard and touchpad to perform local server management tasks or to access systems via a compatible KVM switch. Follow standard rack safety procedures when installing or removing the unit to avoid damage or injury.

Recommendations

For reliable operation, mount the console in a properly grounded rack and use shielded video and peripheral cables when possible. Choose USB or PS/2 connections based on connected equipment and test video settings at the native 1280×1024 resolution for optimal display clarity. In environments with significant vibration, verify rack mounting and cable strain relief to maintain the tested vibration resistance.
