ATEN CE820-ATA-G KVM extender Transmitter & receiver

ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
ATEN CE820-ATA-G KVM extender Transmitter & receiver
R11,991
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the mark... Read More
Stock 1 Code 301310 Brand ATEN Model CE820-ATA-G Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

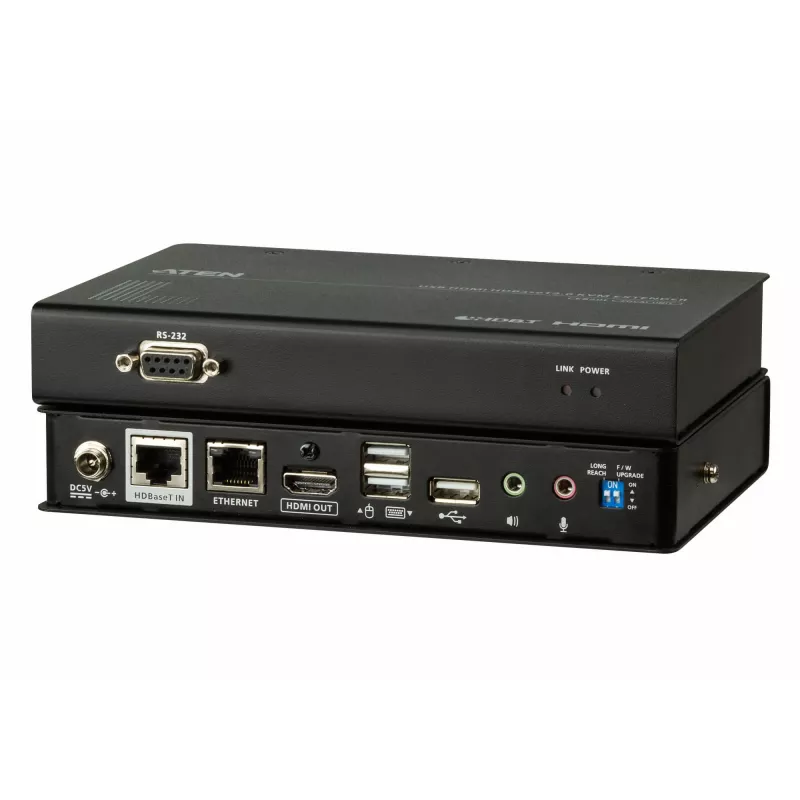

The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

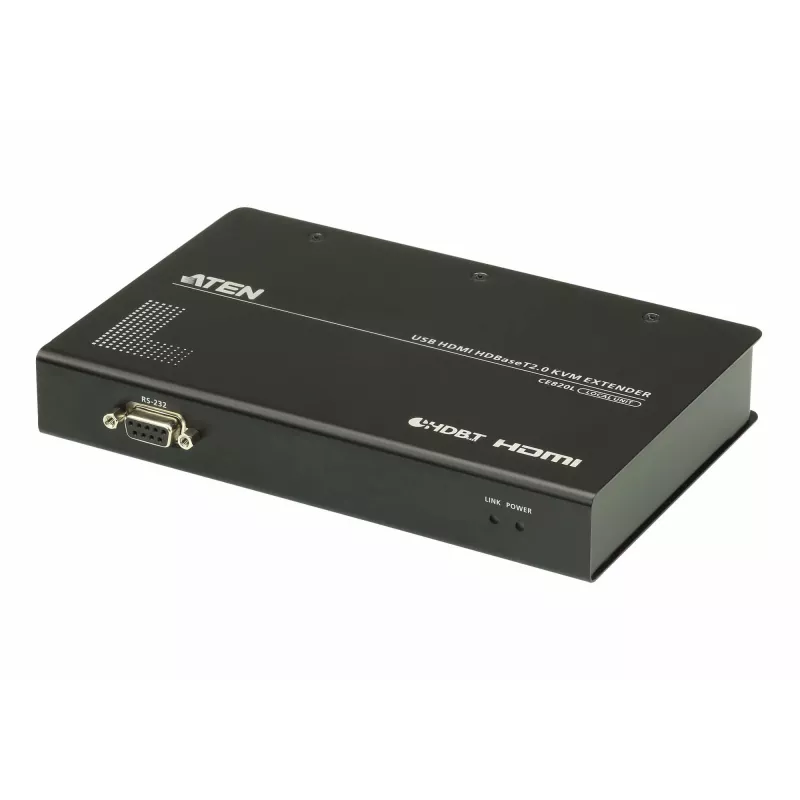

1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)

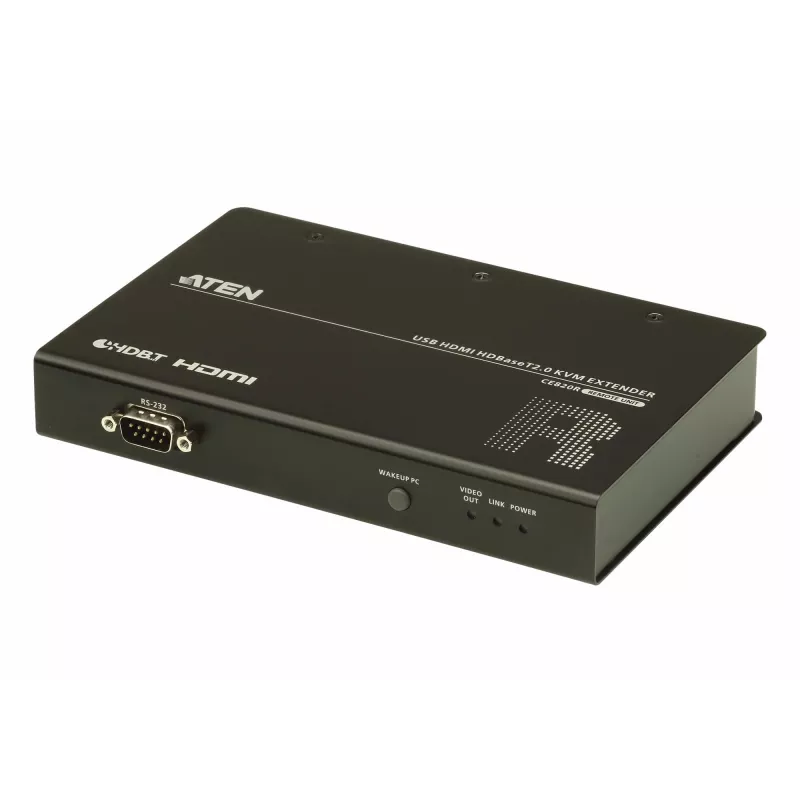

1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x 0AD6-1F05-26EG Power Adapters
2x Mounting Kits
1x User Instructions

ATEN CE820-ATA-G. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 5 V, Power consumption (transmitter) (max): 2.87 W, Power consumption (receiver) (max): 5.37 W. Transmitter width: 18.2 cm, Transmitter depth: 12.2 cm, Transmitter height: 2.87 cm

Key Highlights
  • Supports HDBaseT™ 2.0 technology
  • EDID Buffer for smooth power-up and the highest quality display
  • HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
  • Long distance with superior video quality
  • Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
  • Supports individual 2-channel stereo audio and USB 2.0 full speed ports
  • Supports PC wakeup function via single pushbutton through RS-232 channel*
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Transmitter & receiver
  • Wired Maximum transfer distance: 150 m
  • Maximum digital resolution: 4096 x 2160 pixels
  • Material: Metal
  • Transmitter video port type: HDMI Transmitter local keyboard/mouse port type: USB
  • Receiver local video port type: HDMI Receiver local keyboard/mouse port type: USB
  • PC Audio in PC Audio out
  • Power consumption (transmitter) (max): 2.87 W Power consumption (receiver) (max): 5.37 W
  • Black
Specifications
AC adapter output voltage
5 V
Cable types supported
Cat5e, Cat6, Cat6a
Connectivity technology
Wired
LED indicators
Link, Power, Video
Material
Metal
Maximum digital resolution
4096 x 2160 pixels
Maximum transfer distance
150 m
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 40 °C
PC Audio in
Yes
PC Audio out
Yes
Power consumption (receiver) (max)
5.37 W
Power consumption (transmitter) (max)
2.87 W
Product colour
Black
Rack mounting
Yes
Receiver depth
12.2 cm
Receiver height
2.87 cm
Receiver local keyboard/mouse port type
USB
Receiver local video port type
HDMI
Receiver weight
650 g
Receiver width
18.2 cm
RJ-45 ports quantity (receiver)
1
RJ-45 ports quantity (transmitter)
1
Storage temperature (T-T)
-20 - 60 °C
Transmitter depth
12.2 cm
Transmitter height
2.87 cm
Transmitter local keyboard/mouse port type
USB
Transmitter local video port
Yes
Transmitter local video port type
HDMI
Transmitter video port type
HDMI
Transmitter weight
630 g
Transmitter width
18.2 cm
Type
Transmitter & receiver
USB 2.0 ports quantity
4
