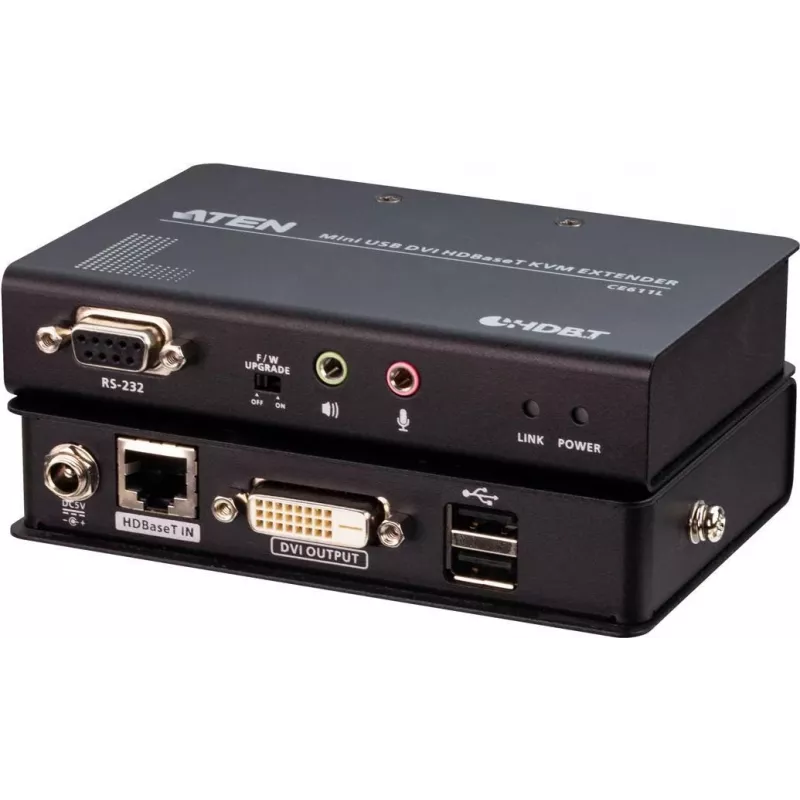

ATEN CE611 Mini USB HDBaseT DVI KVM Extender - Transmitter & Receiver - Up to 100 m

The ATEN CE611 is a high-performance KVM extender that transmits DVI video, USB, audio, and serial signals over a single HDBaseT cable up to 100 meters. Ideal for extending your workstation or control room, it supports Full HD resolution and provides reliable, low-latency connectivity.

Advantages

Extends DVI, USB, audio, and serial signals up to 100 m over a single Cat 5e/6 cable. Supports Full HD 1080p resolution. Plug-and-play installation with no software required. Compact design saves space. HDBaseT technology ensures high-quality signal transmission.

Suitable for

• Extending KVM workstations in control rooms, server rooms, or digital signage
• Remote access to computers in industrial or medical environments
• Education and corporate environments requiring flexible workstation placement

Key specifications

• Type: Transmitter & Receiver
• Connectivity technology: Wired (HDBaseT)
• Maximum transfer distance: 100 m
• Maximum resolution: Full HD (1920x1080)
• Video interface: DVI-D (transmitter and receiver)
• USB data transfer rate: 480 Mbit/s
• Serial interface type: RS-232
• Power source type: External power adapter (included)
• Product colour: Black
• Dimensions (WxDxH): Transmitter: 8.2 x 10.5 x 2.5 cm; Receiver: 8.2 x 10.5 x 2.5 cm
• Weight: Transmitter: 0.2 kg; Receiver: 0.2 kg

Recommendations

For optimal performance, use Cat 6a or higher cabling. The CE611 is HDBaseT Class A compliant and supports PoE (Power over Ethernet) for the receiver when used with a compatible PSE.
