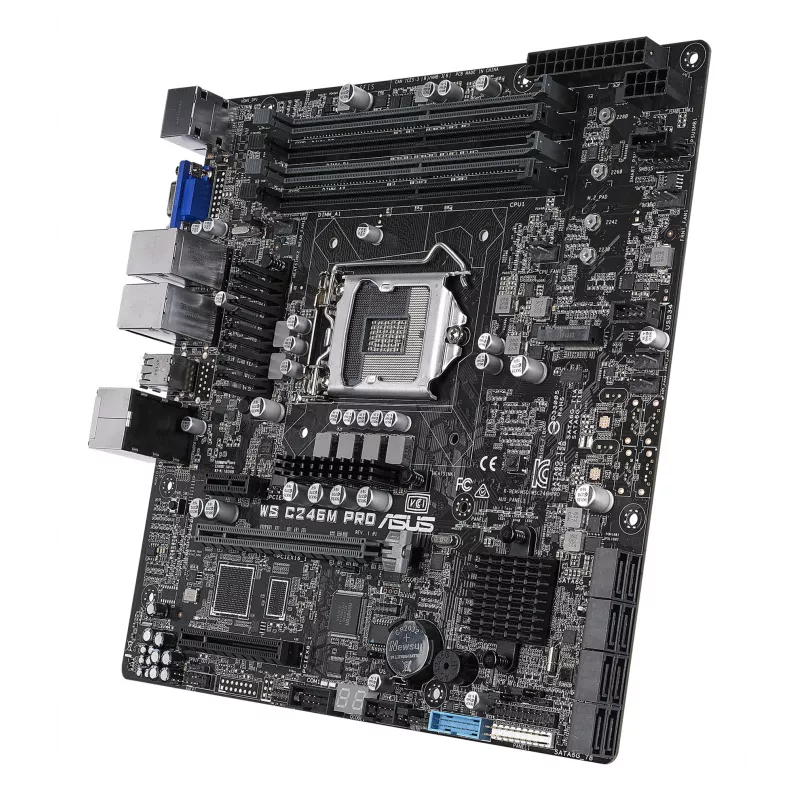

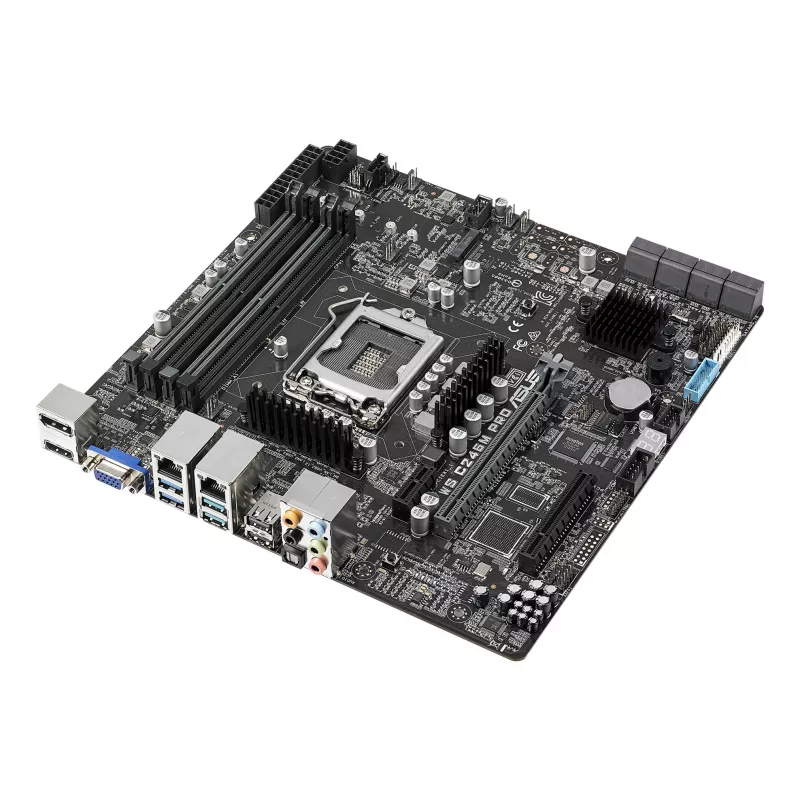

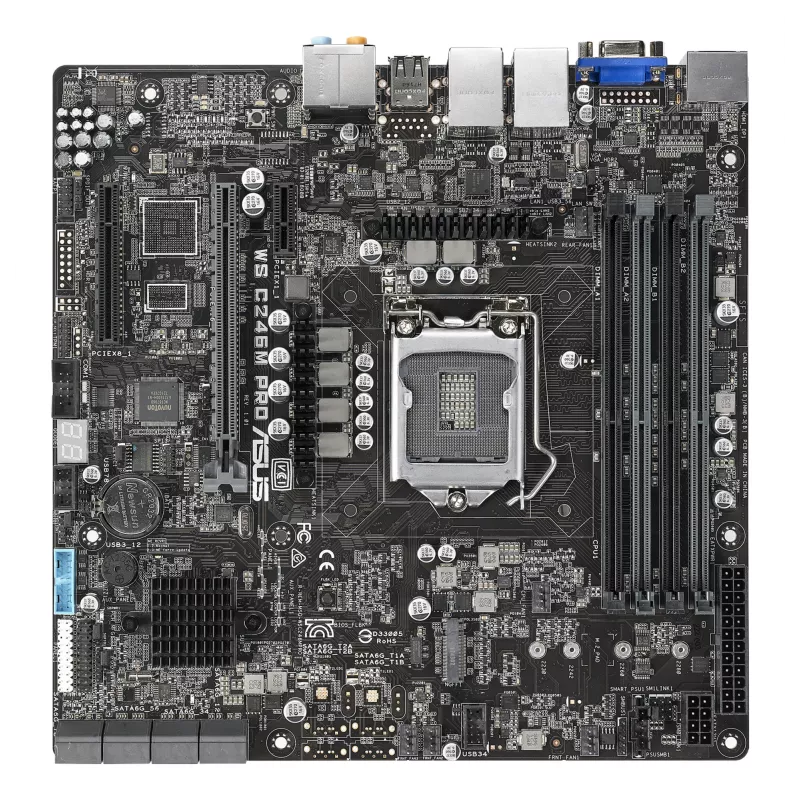

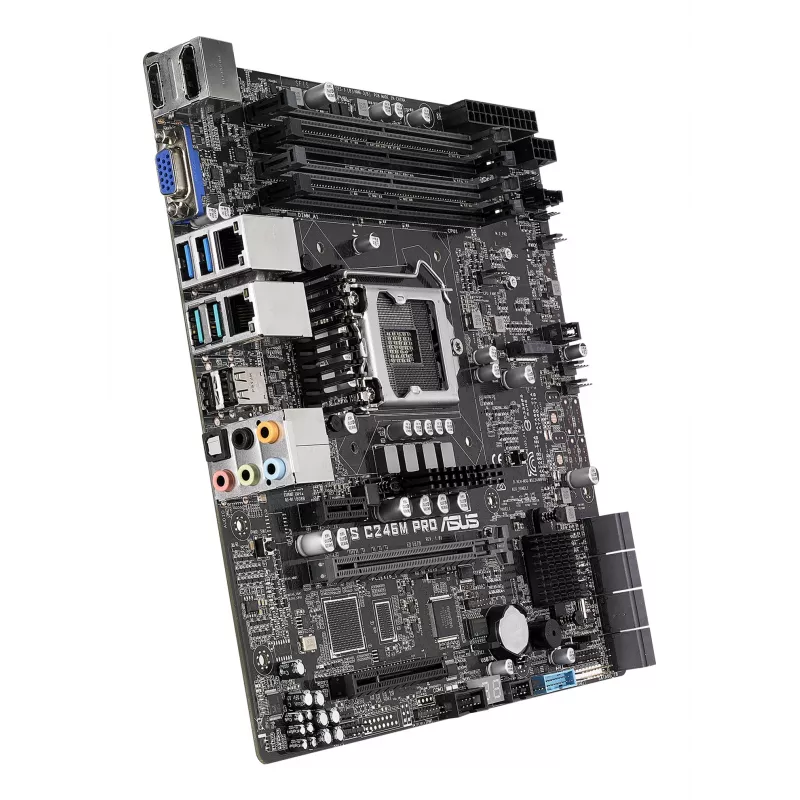

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX
ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX
ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX
ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX
36 mo.
ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX
ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX
ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX
ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX
R6,249
Rack-optimized design for better cooling efficiencyWS C246M PRO is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the deman... Read More
Stock Out Of StockNo Stock Code 2359500 Brand ASUS Model 90SW00E0-M0EAY0 Warranty 3 Years

Shipping & Returns

Rack-optimized design for better cooling efficiency
WS C246M PRO is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the demands of enterprise or academia use.

Powerful performance with Intel® Xeon® E processor and ECC memory
WS C246M PRO supports Intel® Xeon® E series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.

Supports up to three independent displays simultaneously
WS C246M PRO is equipped for total display flexibility with onboard HDMI, DisplayPort and VGA connectivity. With a compatible latest-generation Intel® processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.

Accelerated data-transfer speeds of up to 32Gbps with M.2
With PCIe 3.0 x4 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe — that's up to 5.3X faster than traditional SSDs. WS C246M PRO also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.

Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
WS C246M PRO has two onboard USB 3.1 Gen2 connectors that provide data-transfer speeds of up to 10Gbps, twice as fast USB3.1 Gen1.

SafeSlot
ASUS SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance, which protect your graphics card investment. Manufactured in a single step using a new injection-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ASUS Control Center
WS C246M PRO features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

ASUS WS C246M PRO. Processor manufacturer: Intel, Processor socket: LGA 1151 (Socket H4), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III. LAN controller: Intel® I210-AT, Intel I219LM. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Key Highlights
  • Rack-optimized design for better cooling efficiency and stability
  • Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA
  • Accelerated data-transfer speeds of up to 32Gbps with M.2
  • Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
  • Dual Intel® Gigabit LAN with teaming support
  • ASUS Control Center — A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses
  • Intel LGA 1151 (Socket H4) Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon®
  • PC micro ATX Intel C246 8.0 channels
  • DDR4-SDRAM 4 DIMM Maximum internal memory: 64 GB
  • SATA III
Specifications
ATX Power connector (24-pin)
Yes
Audio output channels
8.0 channels
Cables included
SATA
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon®
Component for
PC
Depth
244 mm
DVI-D ports quantity
1
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Harmonized System (HS) code
84733020
HDMI ports quantity
1
Headphone outputs
1
LAN controller
Intel® I210-AT, Intel I219LM
Manual
Yes
Maximum internal memory
64 GB
Maximum UDIMM memory
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
Intel C246
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Number of COM connectors
1
Number of memory slots
4
Package depth
353 mm
Package height
300 mm
Package width
367 mm
PCI Express x1 (Gen 2.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x4 (Gen 3.x) slots
1
Processor manufacturer
Intel
Processor socket
LGA 1151 (Socket H4)
Quick installation guide
Yes
Supported memory clock speeds
2133,2400,2666 MHz
Supported memory types
DDR4-SDRAM
Supported processor sockets
LGA 1151 (Socket H4)
Supported storage drive interfaces
SATA III
TPM connector
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
1
Wi-Fi
No
Width
244 mm

Manual

Open Manual

Leaflet

Open Leaflet
