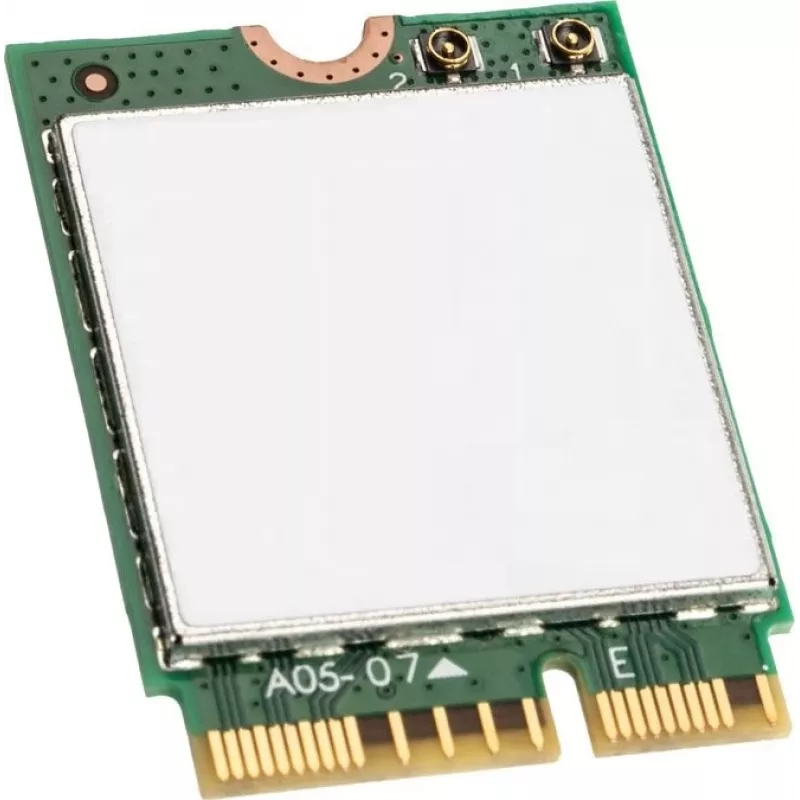

ASUS M.2 CNVI WIFI CARD Internal WLAN 2402 Mbit/s

The Internal WLAN Card ASUS M.2 CNVI 2402 Mbit/s is an internal wireless network adapter designed for M.2 slots. It implements Wi‑Fi 6 (IEEE 802.11ax) and is backward compatible with previous 802.11 standards, offering dual‑band operation on 2.4 GHz and 5 GHz bands and a maximum theoretical throughput of 2402 Mbit/s. The compact M.2 form factor and low weight make it suitable for installation inside compatible desktops and small form factor systems that provide an M.2 key for wireless modules.

Advantages

This ASUS M.2 CNVI card delivers higher throughput and improved spectral efficiency through Wi‑Fi 6 technology, reducing latency and increasing performance in congested networks. Its support for multiple IEEE 802.11 standards ensures compatibility with a wide range of routers and access points. The M.2 interface provides a direct host connection for minimal latency and neat internal installation without external dongles.

Suitable for

• Upgrading desktop or compact PC wireless connectivity via an M.2 WLAN slot
• Dual‑band home networks requiring higher throughput on 5 GHz and extended range on 2.4 GHz
• Online gaming and video streaming where lower latency and stable connections are needed
• Environments with mixed legacy and Wi‑Fi 6 devices where backward compatibility is required

Key specifications

• Wireless standard: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
• Maximum data transfer rate: up to 2402 Mbit/s
• Frequency bands: dual‑band 2.4 GHz and 5 GHz
• Host interface: M.2 module form factor for internal installation
• Connectivity technology: wired host connection via M.2 (internal)
• Weight: approximately 0.0023 kg

How to use

Power off the computer and disconnect mains power before installing the M.2 WLAN card. Locate a compatible M.2 slot on the motherboard that supports wireless modules, align the module with the notch, insert it at a slight angle and secure it with the appropriate screw. Reconnect any external antennas or antenna cables provided by the chassis or motherboard if required. Power on the system, install the appropriate drivers from the motherboard or ASUS support site if the operating system does not automatically recognize the device, and configure wireless network settings through the operating system network manager.

Recommendations

Install the card in an M.2 slot intended for WLAN modules and confirm antenna connections for optimal signal. Keep drivers up to date to ensure full Wi‑Fi 6 feature support and stability. For best performance, pair the card with a router or access point that supports Wi‑Fi 6 and place antennas or the system to minimize obstructions and interference from nearby electronics.
