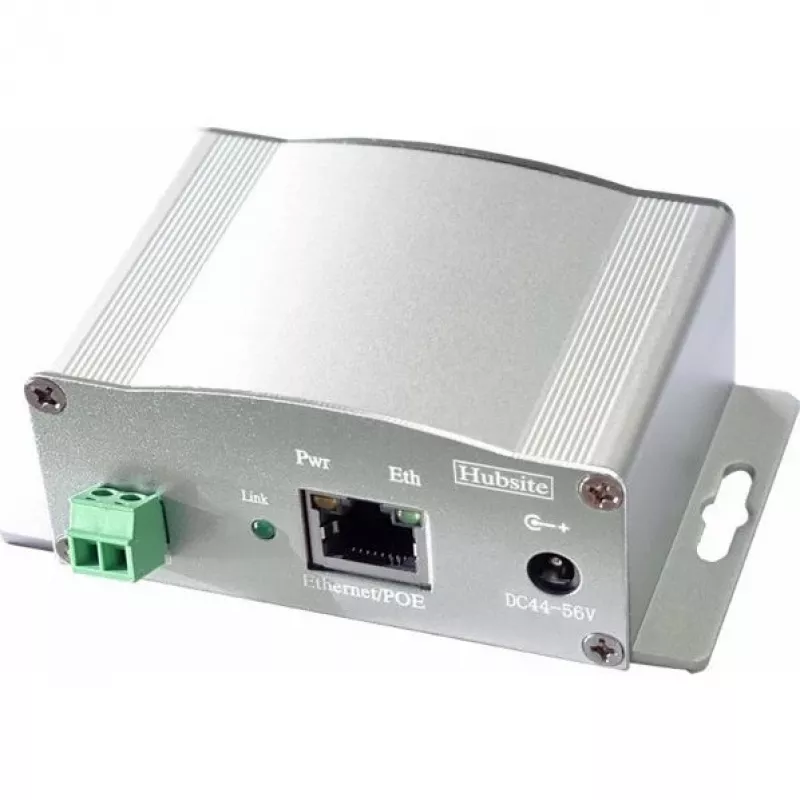

Wantec 2wIP-E-S-BC Adapter with Screw Terminal Switchsite

The Wantec 2wIP-E-S-BC Adapter with Screw Terminal is a 2-wire IP Ethernet end device designed for extending network connectivity over long distances using existing two-wire infrastructure. It enables reliable data transmission up to 500 meters and supports PoE output for powering remote devices.

Advantages

This adapter simplifies network expansion in industrial and commercial environments by utilizing existing two-wire cabling, reducing installation costs and time. With plug-and-play setup, it requires no configuration, and its metal housing ensures durability in demanding conditions.

Suitable for

• Extending Ethernet networks to remote locations such as security cameras, access points, or sensors
• Industrial automation and building management systems
• Upgrading legacy two-wire systems to IP-based communication

Key specifications

• Product Type: 2-Wire IP Ethernet Adapter (End Device)
• Ethernet Standard: 10/100Base-T (Fast Ethernet)
• PoE Output Standard: IEEE 802.3af/at (PoE/PoE+)
• Max PoE Power Output: Up to 30 W
• 2-Wire Interface: 2-pin Screw Terminal
• Ethernet Interface: 1x RJ45
• Max 2-Wire Distance: Up to 500 m
• Data Rate over 2-Wire: Up to 100 Mbps
• Power Input: Via 2-Wire from Central Unit
• LED Indicators: Link/Activity, PoE Status
• Operating Temperature: -10°C to +50°C
• Housing Material: Metal
• Installation Options: Wall Mount, DIN Rail (with optional adapter)
• Protection Features: Surge Protection, Short-Circuit Protection
• Plug & Play: Yes

Recommendations

For optimal performance, pair with a compatible Wantec central unit such as the 2wIP-Z-S-BC. Ensure proper termination and cable quality for maximum distance.
