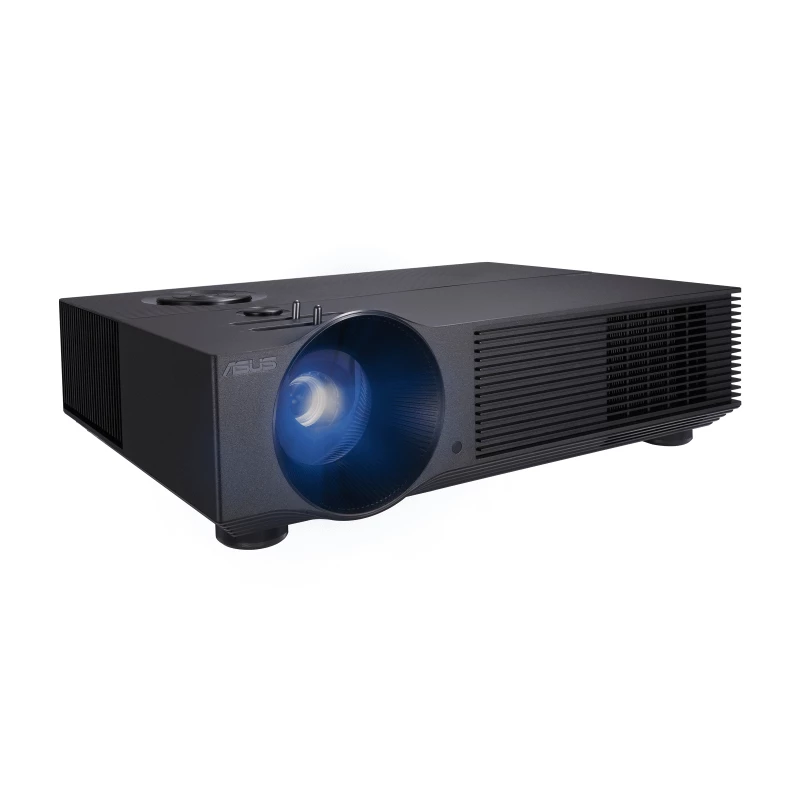

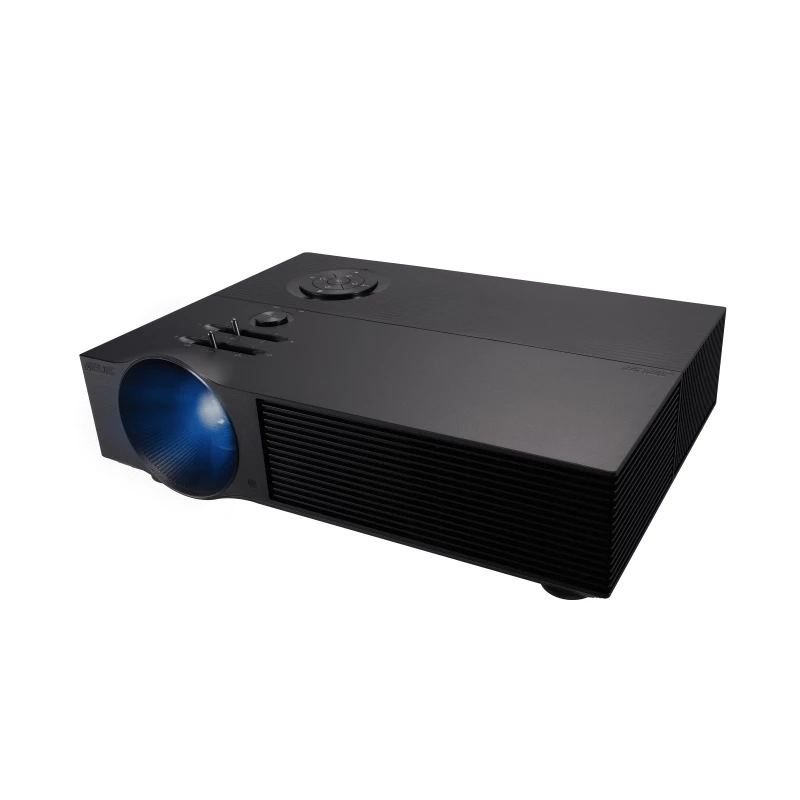

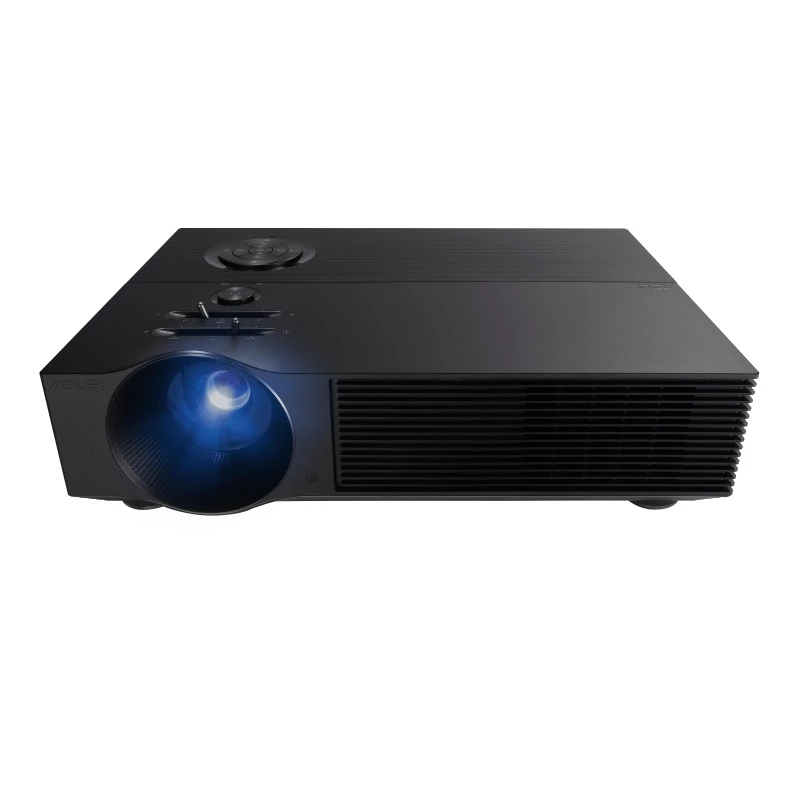

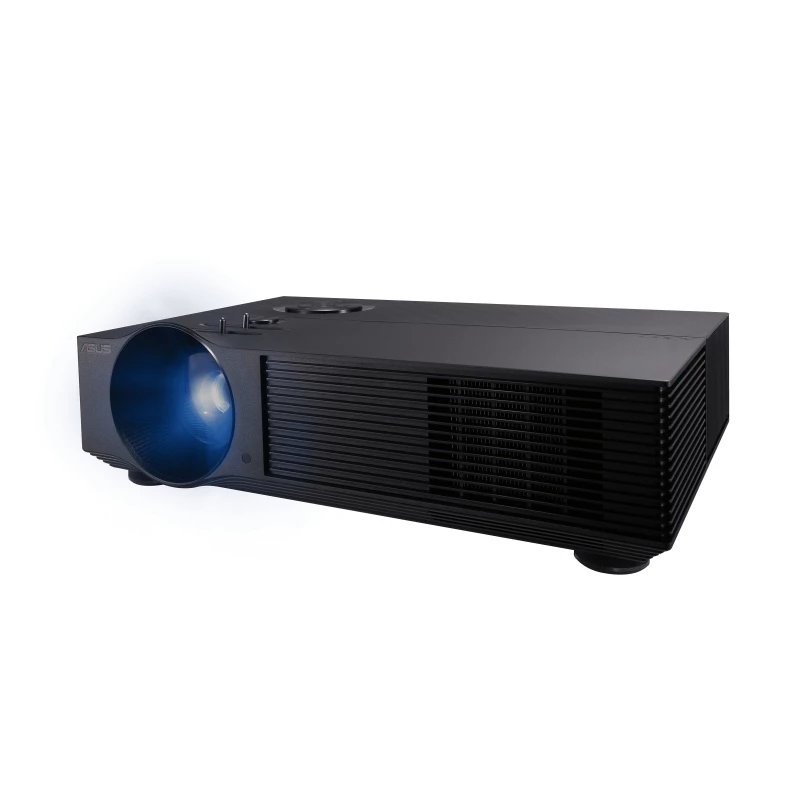

ASUS H1 LED Standard throw projector 3000 ANSI lumens 1080p (1920x1080) Black

The ASUS H1 LED projector delivers bright, crisp Full HD (1920 x 1080) images with 3000 ANSI lumens and wide color coverage (125% Rec.709 / sRGB). Its mercury-free RGB LED light source provides fade-free projection for up to 30,000 hours. With a 120 Hz refresh rate, 1.2X zoom and a throw ratio suited to a wide range of room sizes, the ASUS H1 is designed for home cinema and next‑generation console gaming.

Advantages

High brightness and wide color gamut ensure detailed, vivid images. Long-life RGB LED illumination reduces maintenance and eliminates lamp replacements for years of use. A 120 Hz refresh rate supports smooth motion for gaming and fast-paced video. Compact, elegant design allows ceiling or desktop placement, while built-in 10 W speaker and multiple input ports provide straightforward setup and use.

Suitable for

• Home cinema and movie viewing on large screens (40–200 inches)
• Console gaming with 120 Hz refresh
• Small to medium meeting rooms and presentations
• Rooms requiring flexible placement using 1.2X zoom and a 1.3–1.56:1 throw ratio

Key specifications

• Projection technology: LED
• Native resolution: 1080p (1920 x 1080)
• Brightness: 3000 ANSI lumens
• Color gamut: 125% Rec.709 / sRGB
• Light source lifetime: up to 30,000 hours
• Refresh rate: 120 Hz
• Zoom: 1.2X (manual)
• Throw ratio: 1.3:1 – 1.56:1
• Audio: built-in 10 W speaker

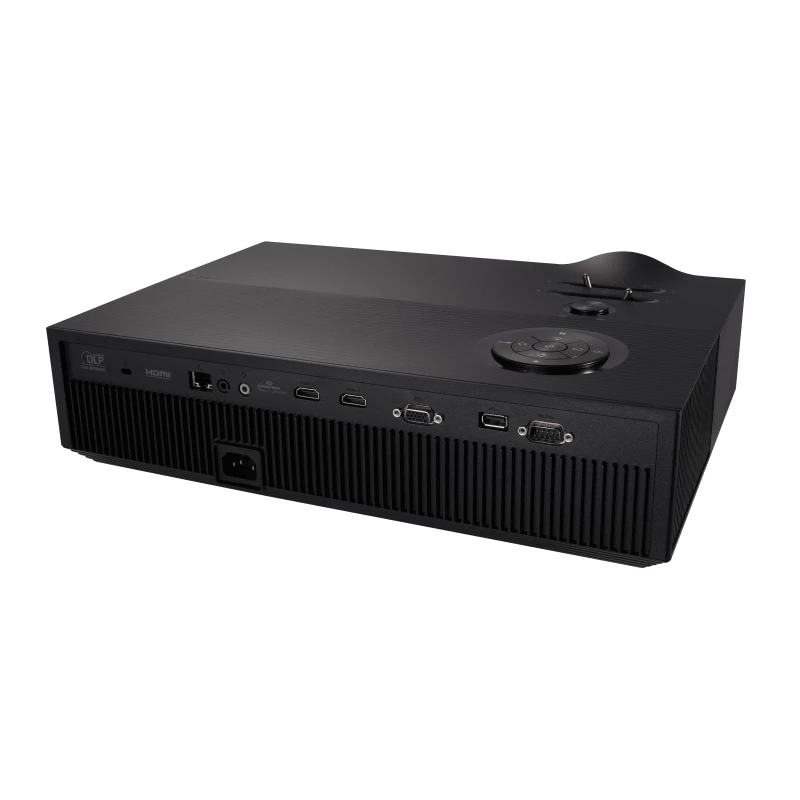

• Connectivity: 2× HDMI 2.0, VGA, audio in/out, RS-232, RJ45 (Crestron RoomView Express compatible), 1× USB Type-A
• Noise level: ~32 dB (eco ~28 dB)
• Weight: 5.7 kg
• Color: Black

How to use

Place the ASUS H1 on a stable surface or mount it on the ceiling, then adjust the manual focus and 1.2X zoom to frame the image at the desired screen size (40–200 inches). Connect source devices using HDMI 2.0 for best video quality; use the 120 Hz mode for supported gaming consoles. Configure network management via the RJ45 port if remote monitoring or scheduling with Crestron RoomView Express is required. Use the built-in speaker for basic audio or connect external speakers via audio out for enhanced sound.

Recommendations

For optimal image quality, position the projector at the correct throw distance for your chosen screen size, enable 120 Hz on compatible sources for smooth motion, and allow proper ventilation around the unit. Use eco mode to reduce fan noise during quieter viewing and extend LED life.
