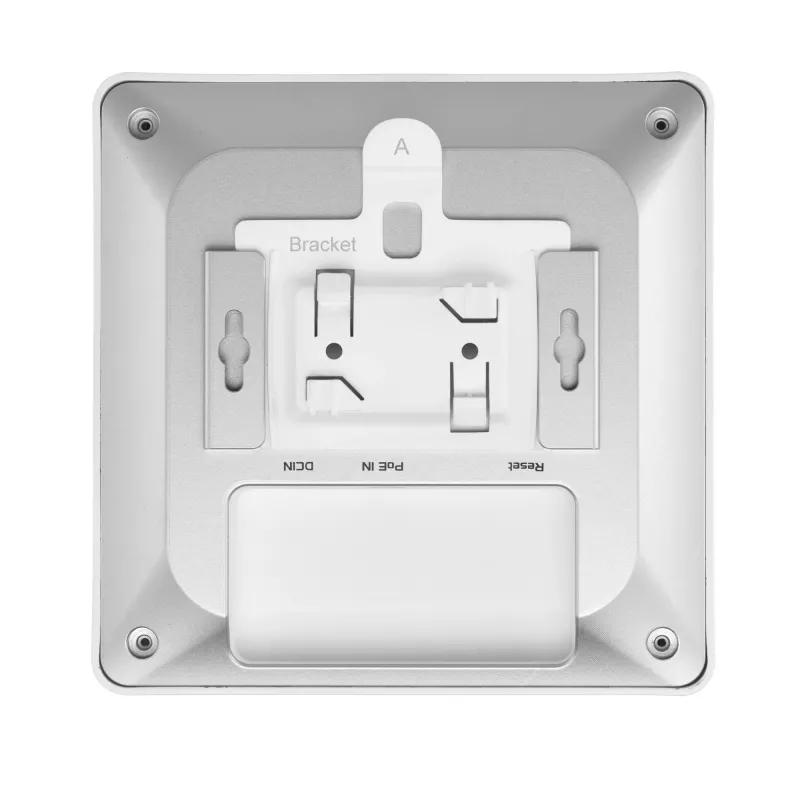

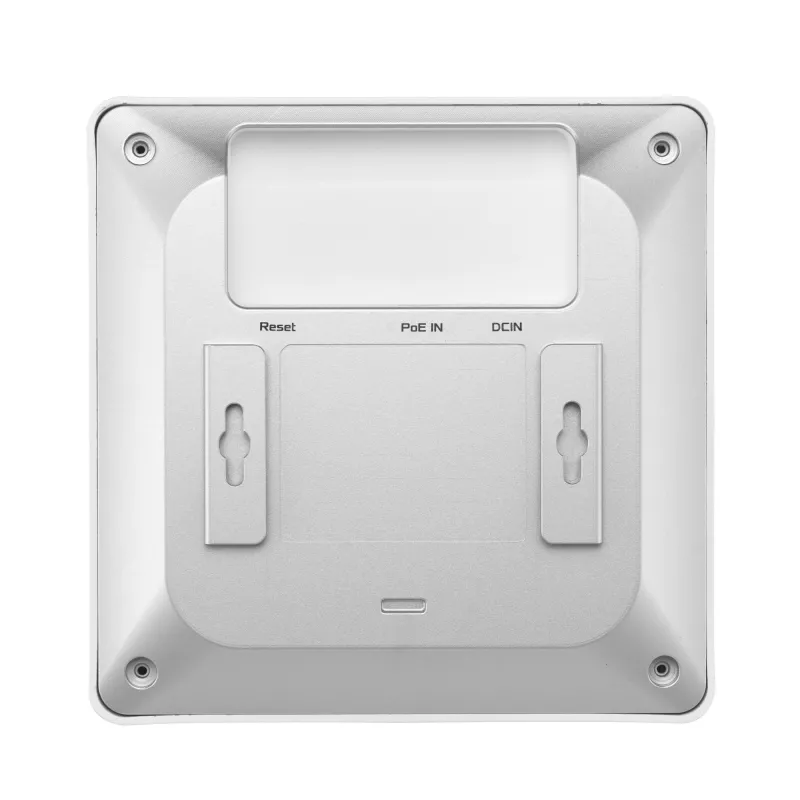

ASUS EBA63 ExpertWiFi AX3000 Dual-band PoE 2402 Mbit/s White Power over Ethernet (PoE)

The ASUS ExpertWiFi EBA63 is an AX3000 dual-band Wi‑Fi 6 access point that delivers up to 2402 Mbit/s on supported bands. Designed for small and midsize businesses, it supports Power over Ethernet (PoE) and AC adapter power, simplifying installation by carrying power and data over a single Ethernet cable. Built-in security includes IPSec, SSH, WPA-Enterprise and WPA2 to protect network traffic. The compact white unit includes four external antennas and one RJ-45 Ethernet port for wired connectivity.

Advantages

The EBA63 offers Wi‑Fi 6 performance in a compact form factor with PoE support for flexible deployment. Dual-band operation and support for IEEE 802.11ax/ac/n/a/g/b standards provide compatibility with a wide range of client devices. Security features such as IPSec, SSH and WPA-Enterprise/WPA2 enable secure authentication and encrypted connections for business networks. Integration with the ASUS ExpertWiFi ecosystem and compatibility with ASUS AiMesh routers allow scalable network expansion and centralized feature management where supported.

Suitable for

• Small and medium-sized offices
• Retail stores and boutiques
• Meeting rooms and conference areas
• Home offices requiring business-grade Wi‑Fi

Key specifications

• Model: ASUS EBA63 ExpertWiFi AX3000
• Wireless standard: IEEE 802.11ax/ac/n/a/g/b
• Maximum data rate: up to 2402 Mbit/s (5 GHz)
• Bands: Dual-band (2.4 GHz and 5 GHz)
• Antennas: 4 external antennas
• Ethernet: 1 × RJ-45 LAN port (PoE supported)
• Security: IPSec, SSH, WPA-Enterprise, WPA2
• Color: White
• Weight: 0.426 kg

How to use

Mount the access point where it provides optimal coverage and connect it to your network switch or router using a Cat5e/6 Ethernet cable. For simplified installation, connect the Ethernet cable to a PoE-capable switch or PoE injector to supply both data and power. Alternatively, use the compatible AC adapter to power the device. Configure wireless settings, security (WPA-Enterprise or WPA2) and integration with ASUS ExpertWiFi management tools through the device web interface or the vendor’s management platform.

Recommendations

Place the EBA63 centrally in the coverage area, avoid metal obstacles and dense partitions, and use PoE for cleaner installations. For multi-device deployments, integrate multiple ExpertWiFi units and, if needed, connect with an AiMesh-capable ASUS router to enable expanded management features where supported by the primary router.
