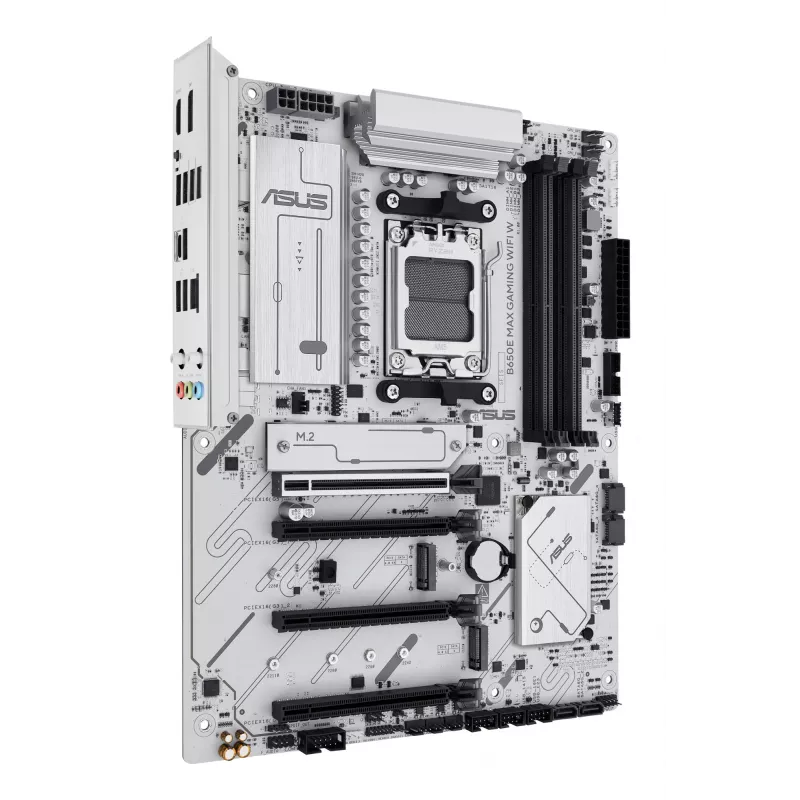

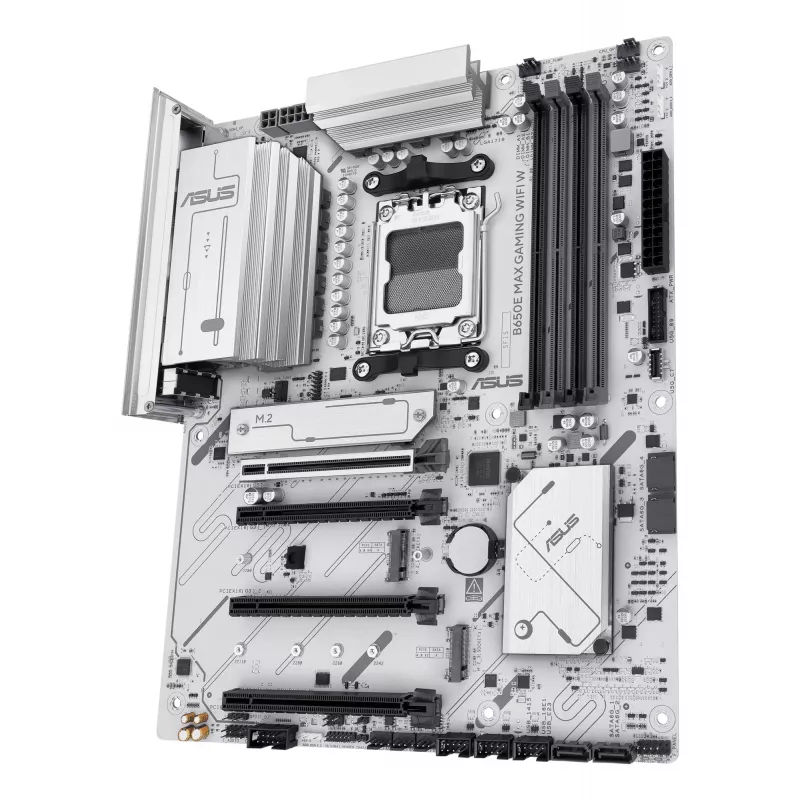

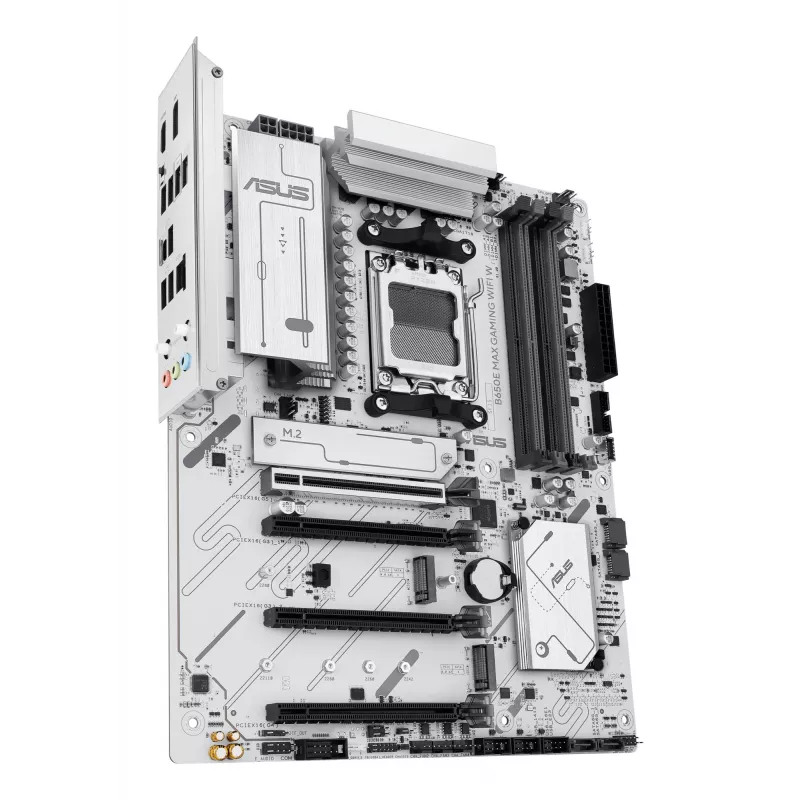

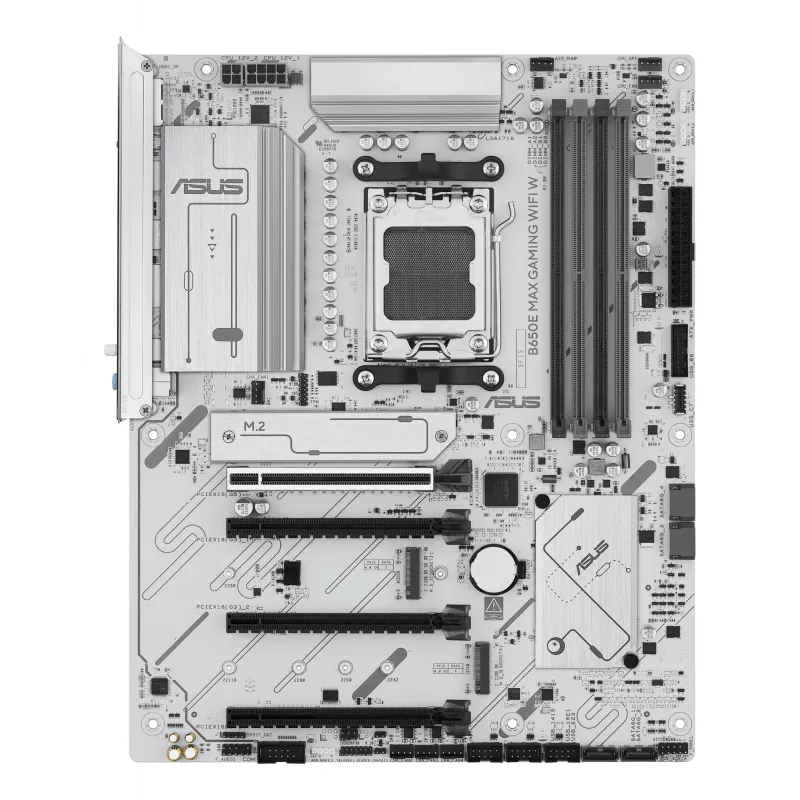

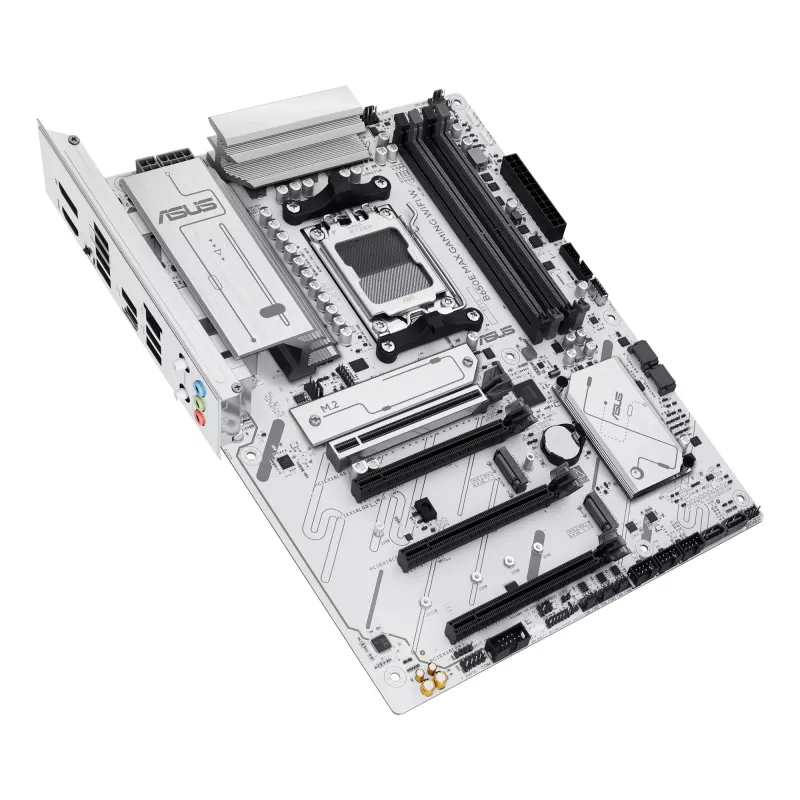

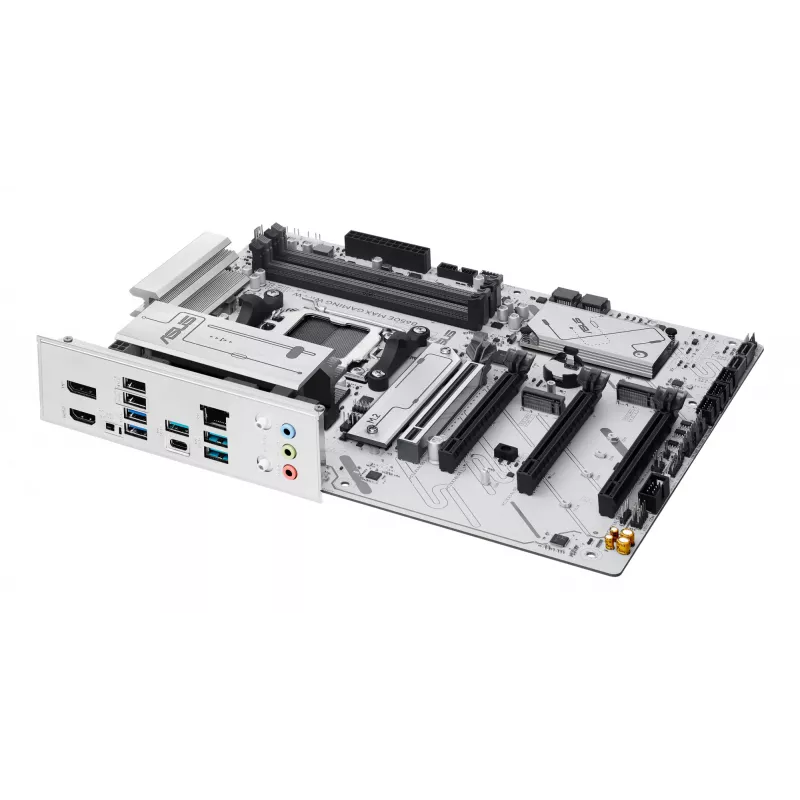

Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX

Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
36 mo.
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Motherboard ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
R5,667
ASUS B650E MAX GAMING WIFI W is a B650E-series motherboard designed to support AMD Ryzen 9000, 8000 and 7000 Series processors. The board combines a strong power delivery subsystem, comprehensive cooling features and built-in Wi‑Fi connectivity to meet the performance and connectivity needs of advan... Read More
Stock Out Of StockNo Stock Code 132330 Brand ASUS Model 90MB1M00-M0EAY0 Warranty 3 Years

Shipping & Returns

ASUS B650E MAX GAMING WIFI W is a B650E-series motherboard designed to support AMD Ryzen 9000, 8000 and 7000 Series processors. The board combines a strong power delivery subsystem, comprehensive cooling features and built-in Wi‑Fi connectivity to meet the performance and connectivity needs of advanced desktop and AI‑enabled PC builds.

Advantages

The motherboard offers a robust power design for stable CPU operation under heavy loads, extensive cooling options to maintain optimal temperatures, and intelligent firmware and software tuning tools for performance optimization. Integrated high-speed networking and modern connectivity ports simplify building systems for gaming, productivity and AI applications.

Key specifications

  • Chipset: AMD B650E
  • CPU support: AMD Ryzen 9000, 8000, 7000 Series processors
  • Form factor: Standard ATX (exact dimensions depend on model)
  • Power design: Enhanced VRM for stable power delivery
  • Cooling: Comprehensive heatsinks and fan headers for system cooling
  • Networking: Integrated Wi‑Fi (MAX GAMING WIFI W variant) and Ethernet
  • Expansion: PCIe slots supporting high‑speed graphics and storage devices
  • Storage: Multiple M.2 and SATA ports for SSDs and HDDs
  • Firmware & software: BIOS and tuning utilities for performance and stability

How to use

Install the motherboard into a compatible ATX case and mount a supported AMD Ryzen processor on the AM5 socket following the manufacturer’s installation guidelines. Connect memory modules, storage devices and PCIe cards, attach cooling fans and power supply cables, then configure BIOS settings and use included ASUS utilities to tune performance and update firmware as needed.

Recommendations

Use high‑quality CPU coolers and a reliable power supply to fully utilize the board’s power delivery capabilities. Ensure BIOS is updated before installing an operating system to guarantee compatibility with the latest Ryzen processors and features.

Key Highlights
  • AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

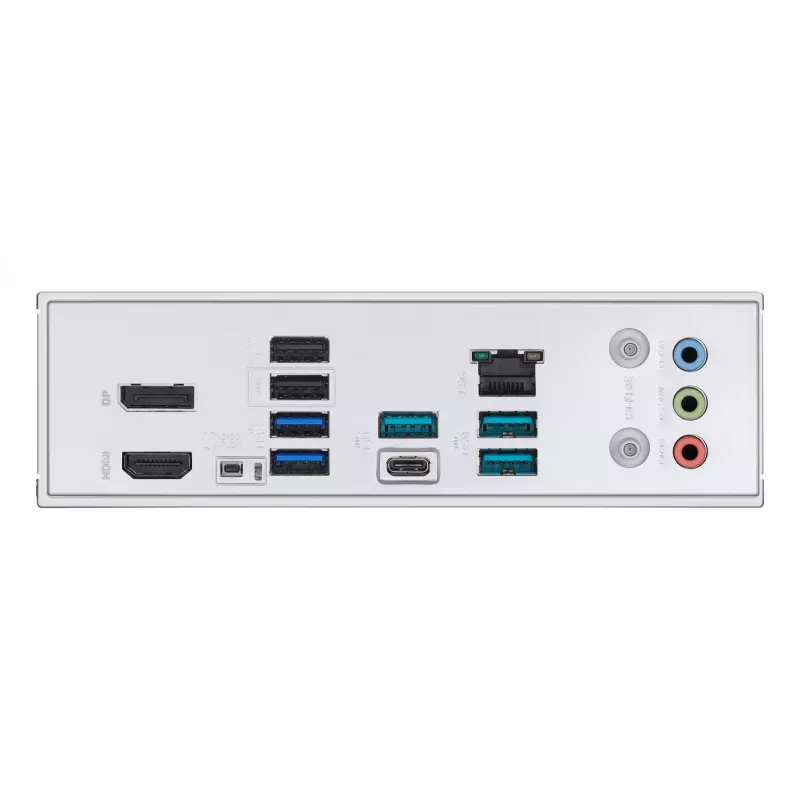

  • Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A & Type-C® ports, and front USB 5Gbps Type-C® support
  • Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+

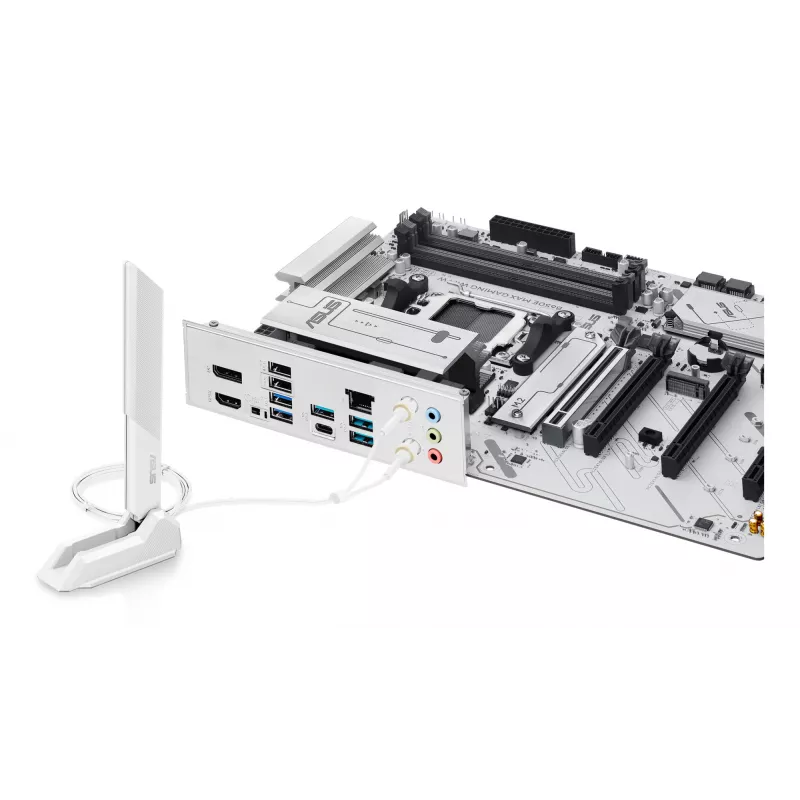

  • DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBack™, Q-Antenna, Q-LED Core
  • Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
  • CEC Tier II ready
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD B650 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio output channels
7.1 channels
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Cables included
SATA
Chassis intrusion connector
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Cooling type
Passive
CPU fan connector
Yes
Depth
244 mm
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDMI ports quantity
1
Line-in
Yes
Maximum internal memory
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD B650
Motherboard chipset family
AMD
Motherboard form factor
ATX
mSATA ports quantity
0
Number of chassis fan connectors
4
Number of COM connectors
1
Number of CPU fan connectors
1
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
3
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
Number of storage drives supported
7
On-board graphics card
No
Package depth
273 mm
Package height
68 mm
Package weight
1.26 kg
Package width
353 mm
Parallel processing technology support
Not supported
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Peripheral (Molex) power connectors (4-pin)
1
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
White
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out connector
Yes
Screws included
Yes
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Thunderbolt headers
1
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
3
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
VGA (D-Sub) ports quantity
0
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Width
305 mm
WiFi-AP antenna jack
1
Windows operating systems supported
Windows 10 x64, Windows 11

Manual

Open Manual

Leaflet

Open Leaflet
