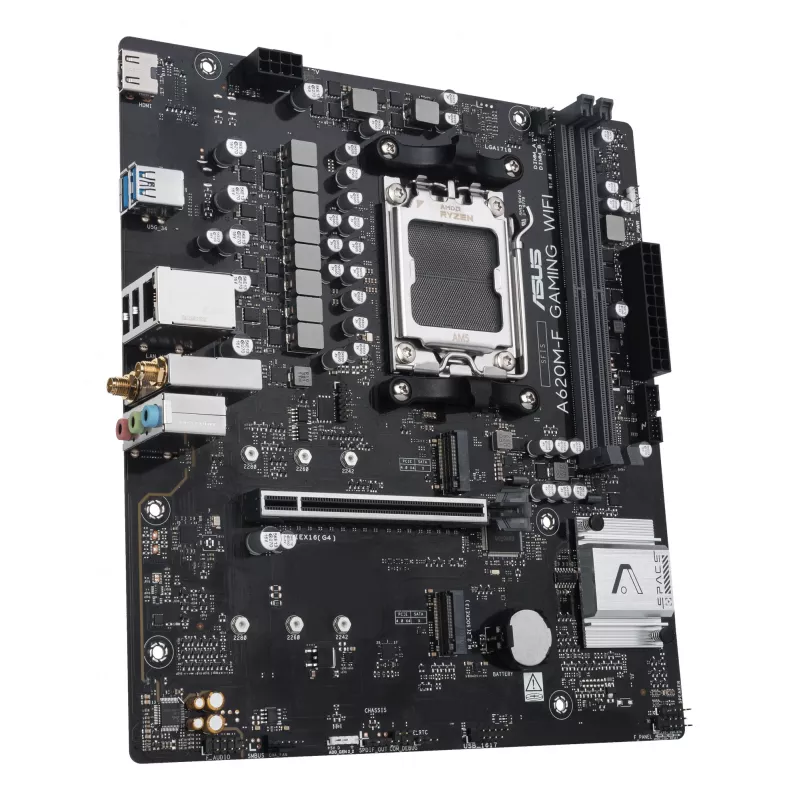

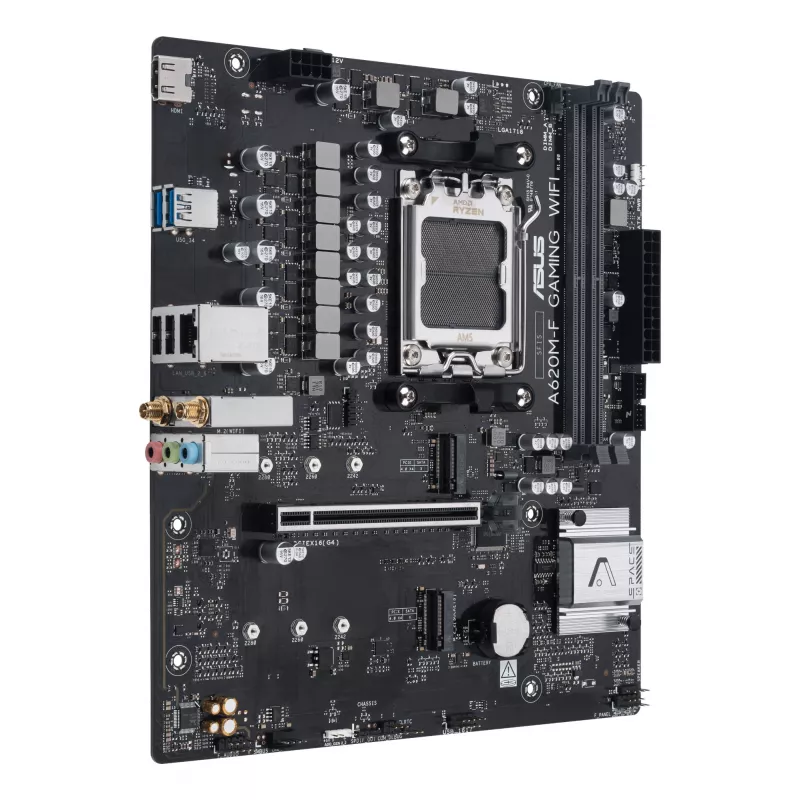

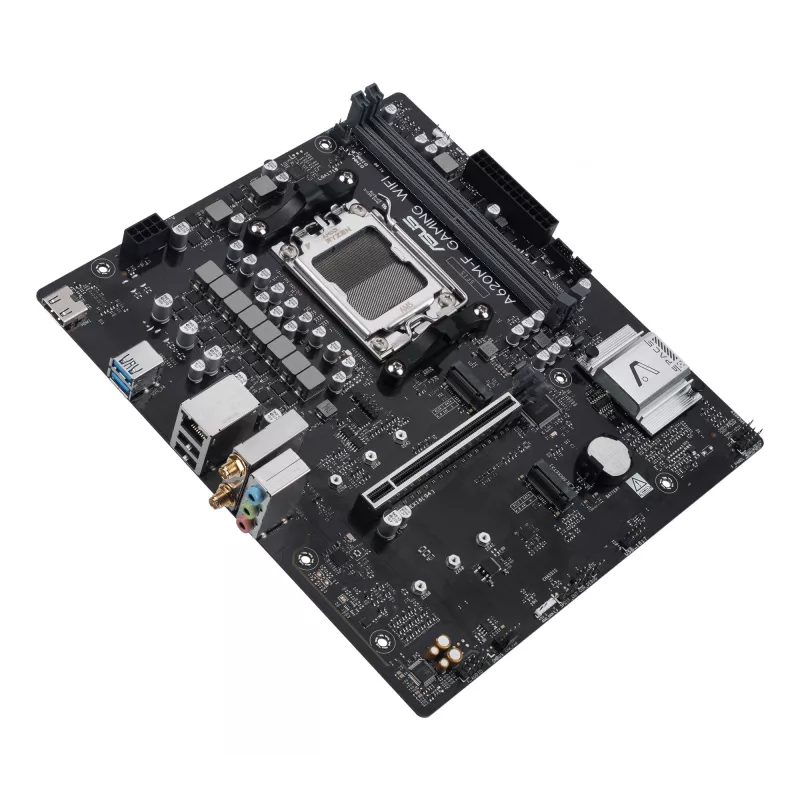

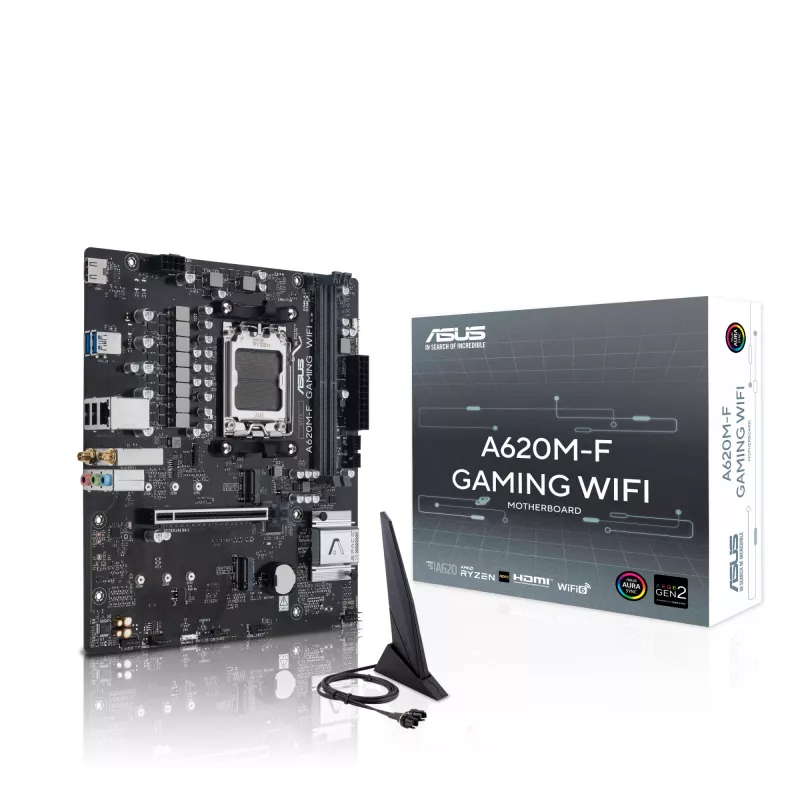

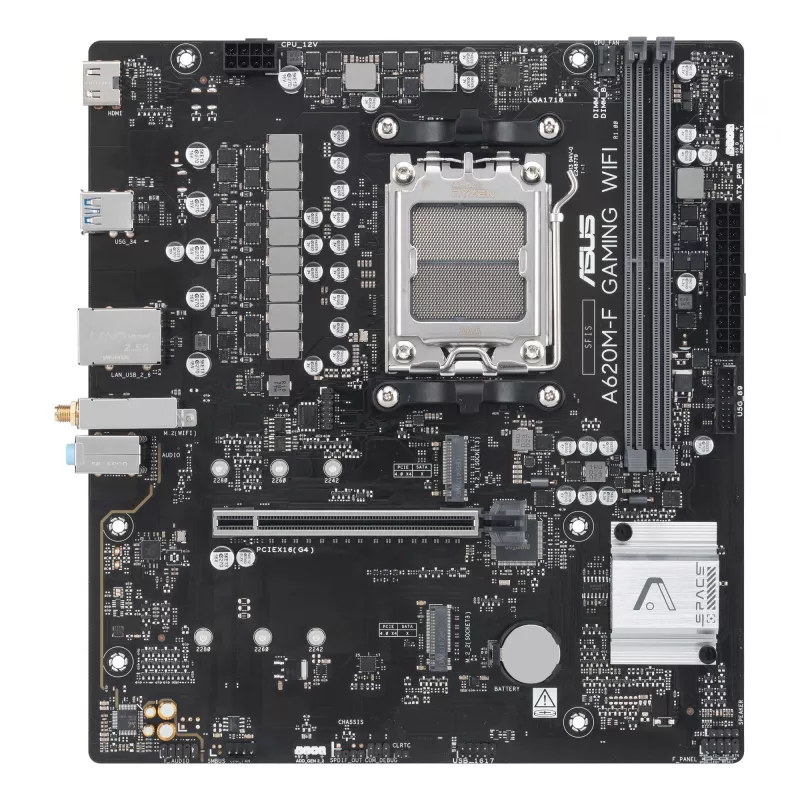

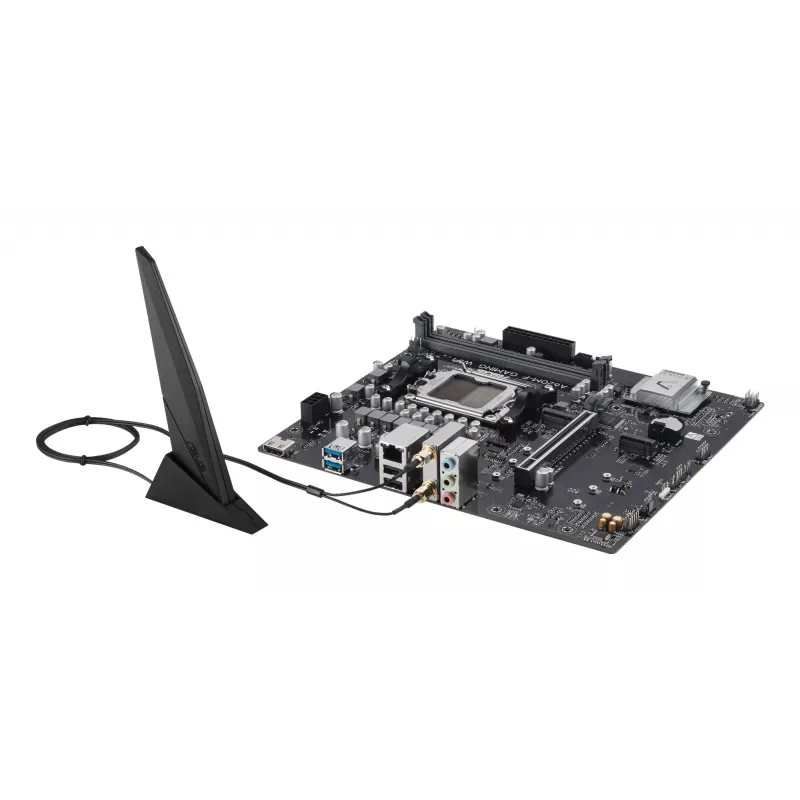

ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX

ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
ASUS A620M-F GAMING WIFI AMD A620 Socket AM5 micro ATX
R3,433
AMD A620 (Ryzen AM5) mATX motherboard with DDR5, PCIe 4.0 support, dual M.2 slots, HDMI™, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 5Gbps ports, Aura SyncA620M-F GAMING WIFIASUS A620 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasti... Read More
Stock Out Of StockNo Stock Code 2623800 Brand ASUS Model 90MB1KT0-M0EAY0 Warranty 2 Years

Shipping & Returns

AMD A620 (Ryzen AM5) mATX motherboard with DDR5, PCIe 4.0 support, dual M.2 slots, HDMI™, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 5Gbps ports, Aura Sync

A620M-F GAMING WIFI
ASUS A620 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, A620M-F GAMING WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
Key Highlights
  • Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AM5 Socket for AMD Ryzen™ Desktop Processors
  • Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 5Gbps ports, front USB 5Gbps Type-A
  • Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers, easily synced with Aura Sync-capable hardware
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC micro ATX AMD A620 7.1 channels
  • DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
  • SSD M.2 RAID support Number of storage drives supported: 2
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3
Specifications
12V power connector
Yes
ATX Power connector (24-pin)
Yes
Audio output channels
7.1 channels
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
CPU fan connector
Yes
Depth
221 mm
DVI-D ports quantity
0
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
HDMI ports quantity
1
Headphone outputs
1
LAN controller
Realtek RTL8125D
Maximum internal memory
128 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
AMD A620
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Number of chassis fan connectors
1
Number of CPU fan connectors
1
Number of M.2 (M) slots
2
Number of memory slots
2
Number of SATA III connectors
0
Number of storage drives supported
2
Parallel processing technology support
Not supported
PCI Express x16 (Gen 4.x) slots
1
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
Multicolour
RAID levels
0, 1, 5, 10
RAID support
Yes
S/PDIF out connector
Yes
Supported memory clock speed (max)
8000 MHz
Supported memory clock speeds
5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz
Supported memory types
DDR5-SDRAM
Supported storage drive interfaces
M.2
Supported storage drive types
SSD
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Unbuffered memory
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB connector type
USB Type-A
VGA (D-Sub) ports quantity
0
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width
244 mm
Windows operating systems supported
Windows 10 x64, Windows 11
