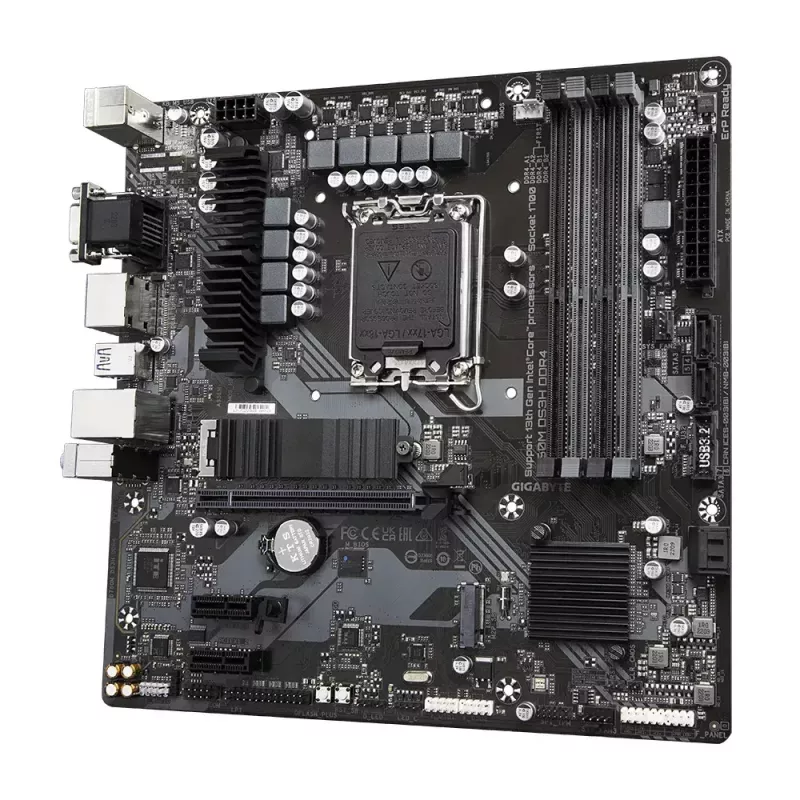

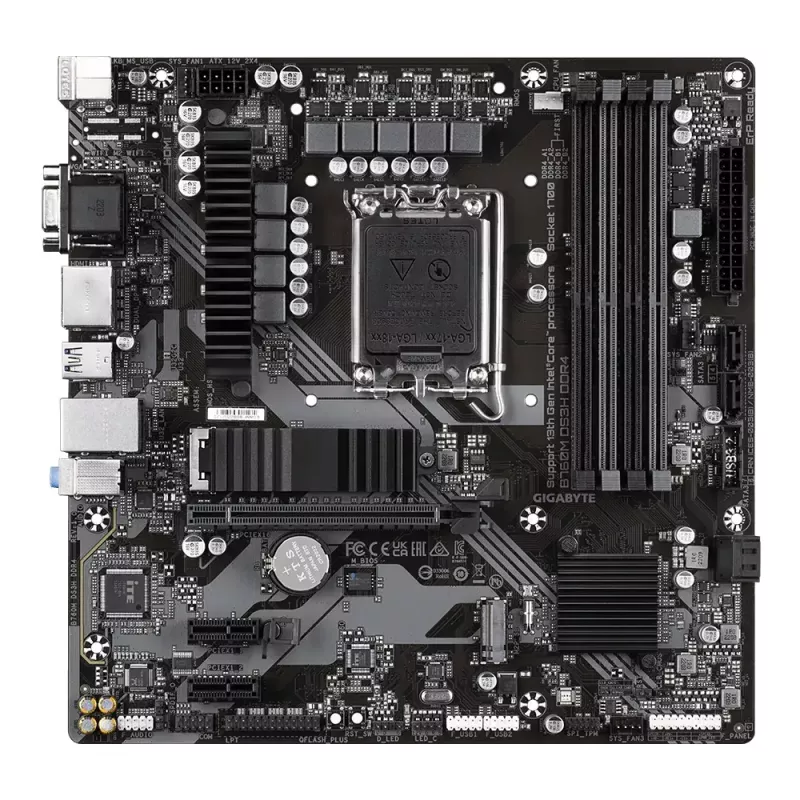

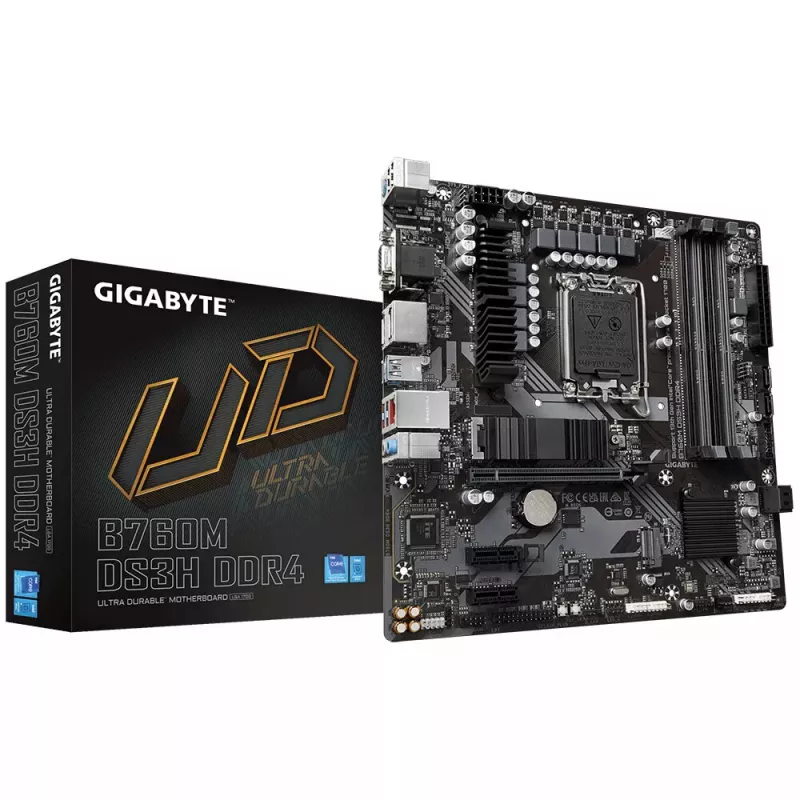

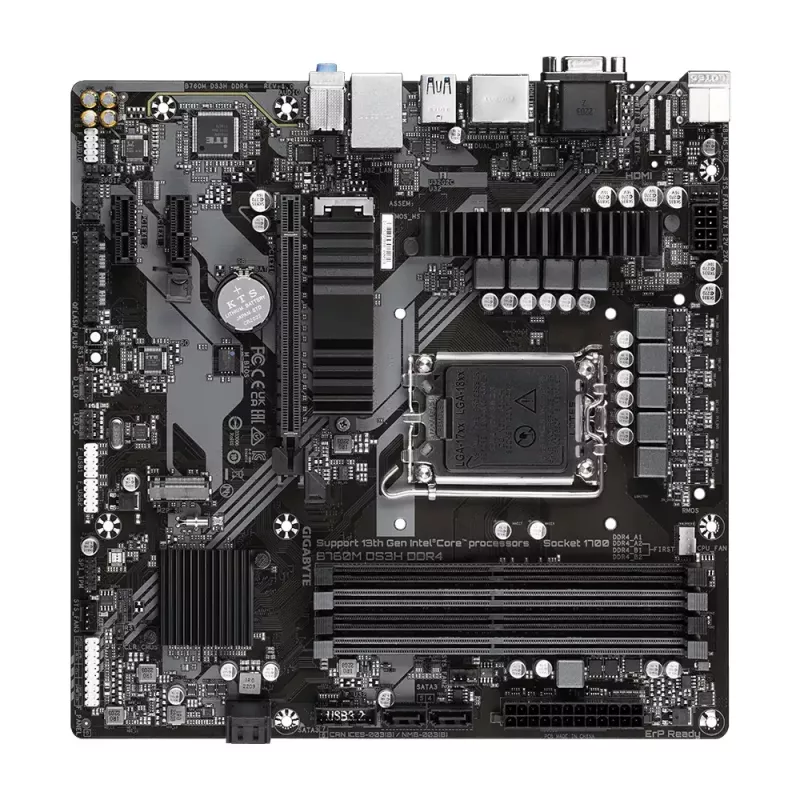

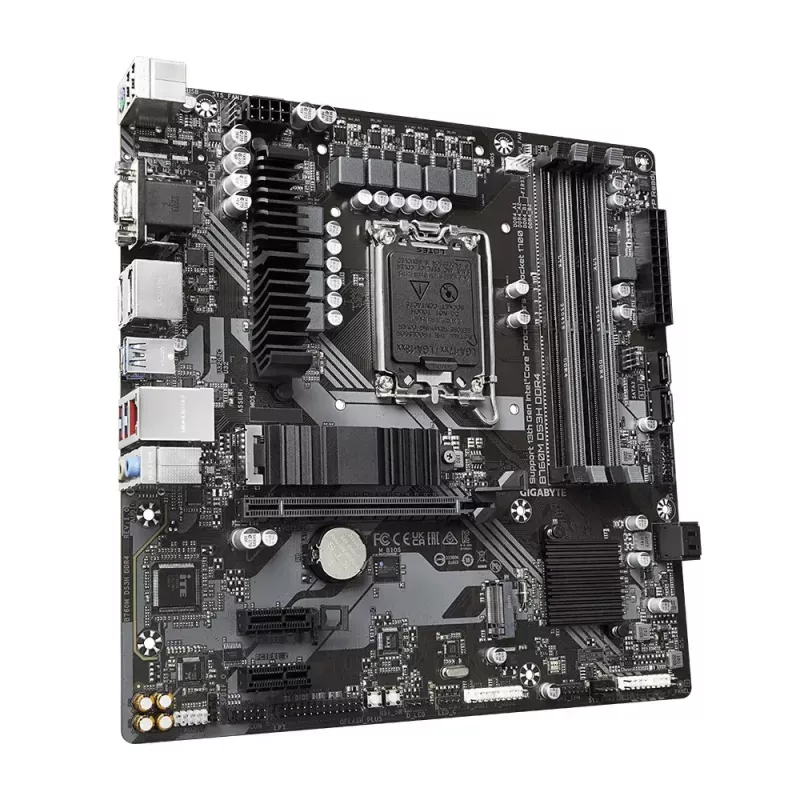

Motherboard GIGABYTE B760M DS3H DDR4 Micro ATX, Intel LGA 1700, 4x DIMM, 128GB, 2.5Gb LAN, 2x M.2, HDMI+DP

The GIGABYTE B760M DS3H DDR4 Micro ATX motherboard supports Intel LGA 1700 CPUs including 14th Gen processors and is built on the Intel B760 Express chipset. Designed for compact desktop systems, it accommodates up to 128 GB of DDR4 memory across four slots with OC support up to 5333 MHz. The board includes a 6+2+1 Phases Digital VRM for stable power delivery, a PCIe x16 slot for a discrete GPU, dual PCIe 4.0 M.2 slots for high-speed NVMe storage and a 2.5GbE LAN port for fast network connectivity.

Advantages

The B760M DS3H DDR4 offers a balance of performance and expandability in a Micro ATX form factor. Its robust digital VRM and multi-slot memory support enable reliable operation with modern Intel CPUs, while dual M.2 slots and 2.5GbE LAN provide flexible high-speed storage and networking options. Compatibility with DDR4 memory keeps upgrade and component options broad for users building cost-effective systems.

Suitable for

• Home and office desktop builds where space is limited
• Gaming PCs using a discrete graphics card in a Micro ATX chassis
• Content creation and productivity systems requiring fast storage and network
• Upgrading older DDR4-based systems to Intel 12th–14th Gen platforms

Key specifications

• Form factor: Micro ATX
• Chipset: Intel B760 Express
• CPU socket: LGA 1700 (supports Intel 14th Gen)
• Memory: 4 × DDR4 slots, up to 128 GB, up to 5333 MHz (OC)
• Expansion: 1 × PCIe x16 (Gen3.x)
• Storage: Dual PCIe 4.0 M.2 slots; SATA support for HDD/SSD
• Networking: 2.5GbE LAN

How to use

Install the motherboard into a compatible Micro ATX case and secure it with standoffs. Fit an LGA 1700-compatible CPU and apply appropriate thermal interface material before mounting a compatible cooler. Populate DDR4 memory modules in the recommended slot configuration for dual-channel operation. Connect storage devices to the M.2 slots or SATA ports and install a discrete GPU into the PCIe x16 slot if required. Attach power from a compatible PSU to the 24-pin ATX and CPU power connectors, then connect front-panel headers, USB, and audio as needed. Complete the setup by flashing or configuring BIOS settings to recognize installed components and enable memory XMP/OC profiles if desired.

Recommendations

Use high-quality DDR4 memory modules matched in pairs for optimal dual-channel performance, ensure the CPU cooler is compatible with LGA 1700 mounting, and update the BIOS to the latest version provided by GIGABYTE to guarantee full support for 14th Gen Intel processors and improved stability.
