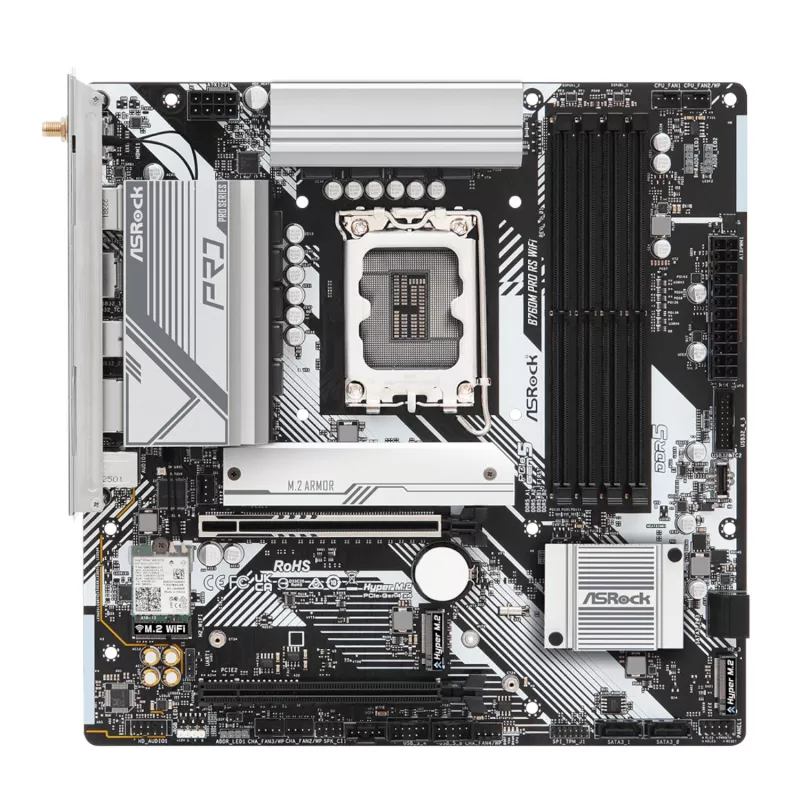

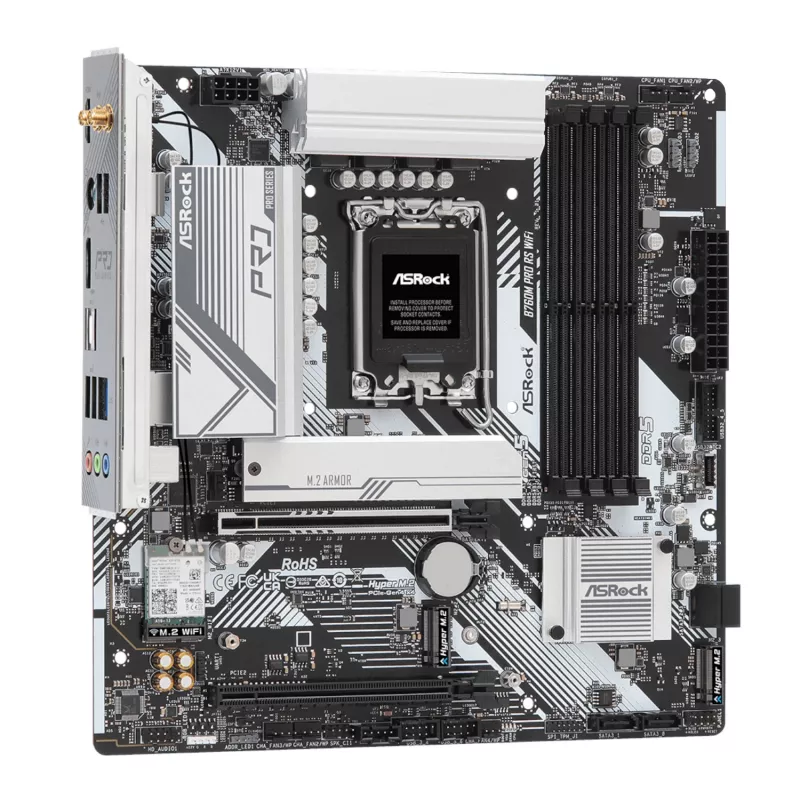

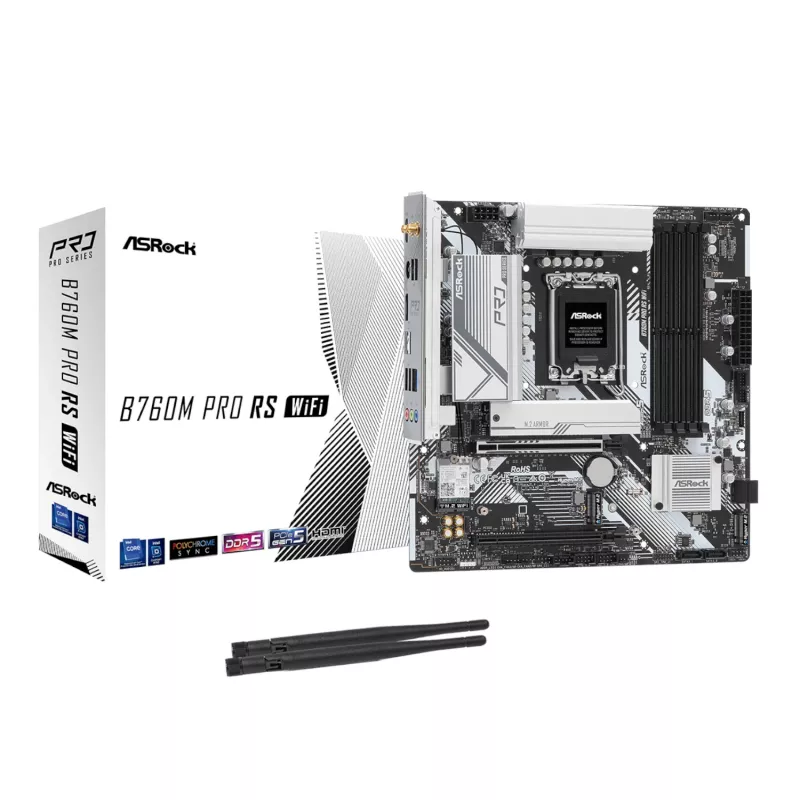

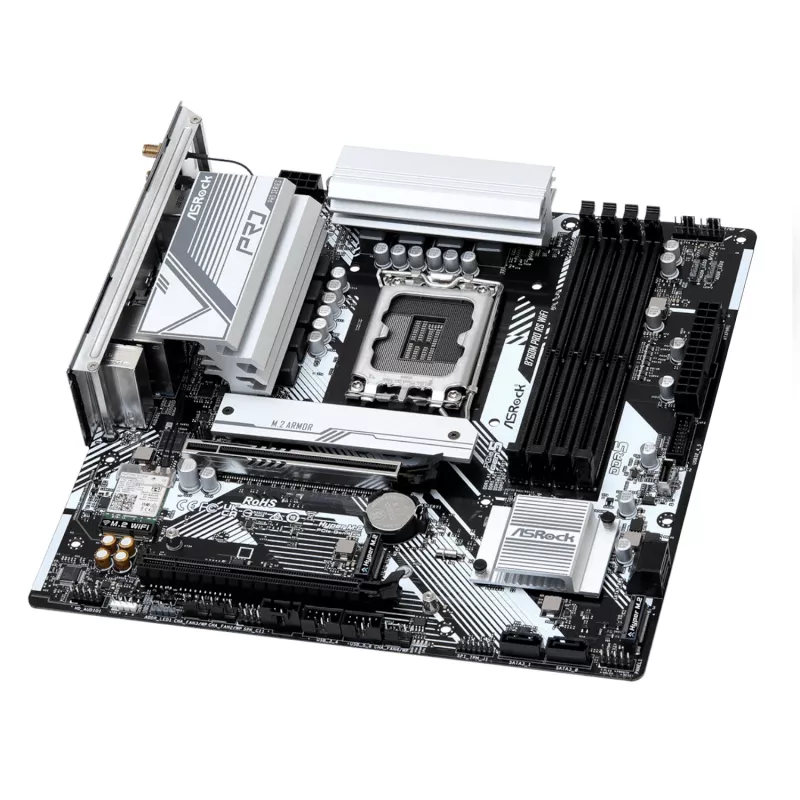

ASRock B760M Pro RS WiFi Intel LGA 1700 Micro-ATX Gaming Motherboard

Unlock the full potential of Intel's 12th and 13th Gen processors with the ASRock B760M Pro RS WiFi, a Micro-ATX motherboard engineered for gamers and PC enthusiasts who demand high-speed connectivity and robust power delivery. Featuring 2.5 Gigabit LAN and Wi-Fi 6E, this board ensures lag-free online gaming and rapid file transfers, while the 7+1+1 power phase design provides stable power for demanding CPUs.

Overview

The ASRock B760M Pro RS WiFi is built on the Intel B760 chipset, supporting LGA 1700 processors and DDR4 memory up to 5333+ MHz (OC). Its Micro-ATX form factor fits a wide range of cases, offering a balance of expandability and compactness. With dual M.2 slots for PCIe Gen4 x4 SSDs, four SATA III ports, and a host of USB options including a rear USB 3.2 Gen2 Type-C, you have ample storage and peripheral connectivity.

What stands out

• Next-gen wireless: Wi-Fi 6E and Bluetooth 5.2 for ultra-low latency and high bandwidth.
• 2.5 Gigabit LAN: Realtek Dragon RTL8125BG for wired networking up to 2.5 Gbps.
• Robust power design: 7+1+1 power phases with premium components for stable overclocking.
• Dual M.2 slots: Both support PCIe Gen4 x4 for blazing-fast NVMe SSDs.
• Comprehensive connectivity: Rear USB 3.2 Gen2 Type-C, three USB 3.2 Gen1 Type-A, and two USB 2.0 ports.
• High-quality audio: Realtek ALC897 codec delivers 7.1-channel HD audio.

Technical details

• CPU Socket: Intel LGA 1700
• Chipset: Intel B760
• Form Factor: Micro ATX
• Memory: 4x DDR4 DIMM slots, max 128 GB, up to 5333+ MHz (OC)
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4 mode), 1x PCIe 3.0 x1
• Storage: 2x M.2 (PCIe Gen4 x4), 4x SATA III
• Networking: Realtek 2.5 Gigabit LAN, 802.11ax Wi-Fi 6E, Bluetooth 5.2
• Audio: Realtek ALC897 7.1 CH HD Audio

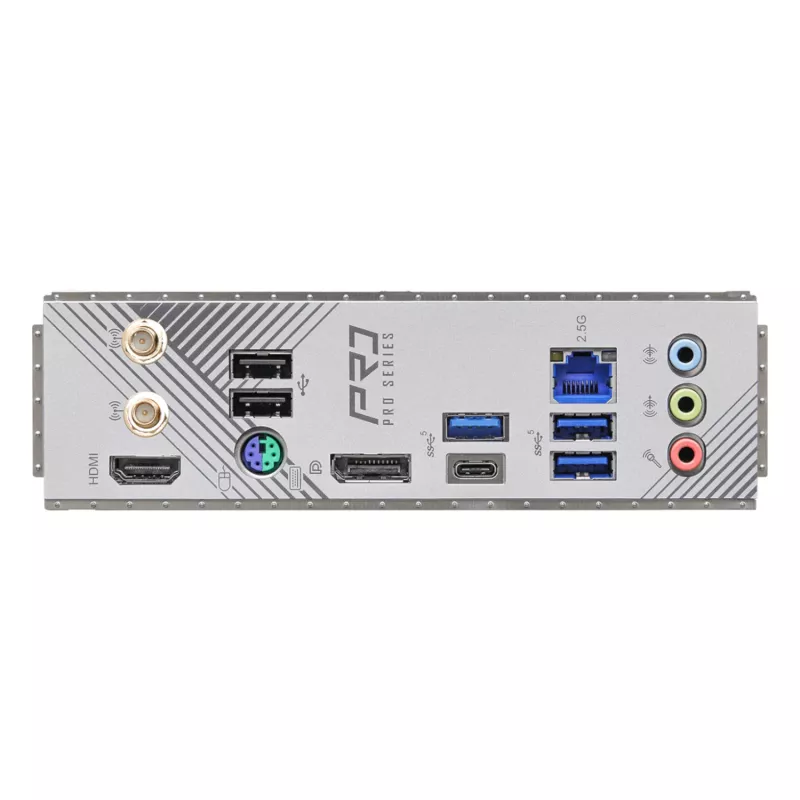

• Rear USB: 1x USB 3.2 Gen2 Type-C, 3x USB 3.2 Gen1 Type-A, 2x USB 2.0
• Video Outputs: 1x HDMI, 1x DisplayPort

Our verdict

The ASRock B760M Pro RS WiFi is a compelling choice for builders seeking a feature-rich Micro-ATX board with cutting-edge connectivity and solid performance. Its Wi-Fi 6E and 2.5G LAN set it apart in its class, making it ideal for both gaming and content creation.
