GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4

GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
GIGABYTE X870 AORUS STEALTH Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5 GbE LAN, USB 4
R6,840
GIGABYTE X870 AORUS STEALTH is an ATX motherboard for AMD Socket AM5, compatible with AMD Ryzen 7000, 8000 and 9000 series processors. The board supports DDR5 memory with overclocking up to 8200 MT/s across four DIMM slots (maximum 256 GB), features a digital twin 16+2+2-phase VRM design and multipl... Read More
Stock 4 Code 1724987 Brand GIGABYTE Model X870 A STEALTH Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

GIGABYTE X870 AORUS STEALTH is an ATX motherboard for AMD Socket AM5, compatible with AMD Ryzen 7000, 8000 and 9000 series processors. The board supports DDR5 memory with overclocking up to 8200 MT/s across four DIMM slots (maximum 256 GB), features a digital twin 16+2+2-phase VRM design and multiple high-speed storage and connectivity options, including PCIe 5.0, M.2 slots, Wi‑Fi 7 and multi-gig Ethernet.

Advantages

The motherboard combines a robust power delivery system and advanced thermal solutions to maintain stable performance under heavy loads. Fast storage support with up to four M.2 slots, including PCIe 5.0 x4, and flexible RAID options enable high-capacity, high-speed storage configurations. Integrated high-speed networking options such as Wi‑Fi 7 and 5 GbE provide low-latency, high-throughput connectivity. Additional convenience features include tool-less PCIe and M.2 slot access and simplified Wi‑Fi antenna installation.

Suitable for

  • High-performance gaming PCs
  • Content creation and video editing workstations
  • Professional workstations requiring fast storage and networking
  • Enthusiast builds with overclocked DDR5 memory

Key specifications

  • Form factor: ATX
  • CPU socket: AMD Socket AM5; supports AMD Ryzen 7000/8000/9000 series processors
  • Memory: DDR5, 4 DIMM slots, up to 8200 MT/s (OC), maximum 256 GB
  • Power delivery: Digital twin 16+2+2-phase VRM
  • PCIe: Dual PCIe 5.0 slots, additional PCIe 4.0 lanes
  • Storage: 4× M.2 slots (including PCIe 5.0 x4), SATA III, RAID 0/1/5/10 support; up to 6 storage drives supported
  • Networking: Wi‑Fi 7 (802.11be) with high-gain antenna support, 5 GbE and 2.5 GbE Ethernet options
  • Audio: 7.1-channel audio codec

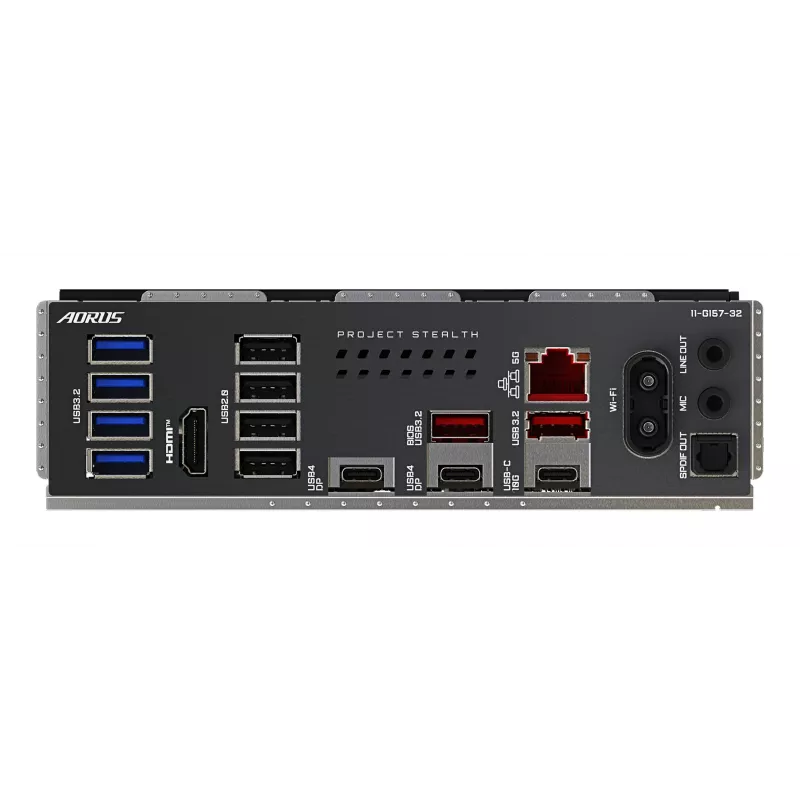

  • Rear I/O: HDMI, Dual USB4 Type-C with DisplayPort Alt Mode
  • BIOS: UEFI AMI

How to use

Install the motherboard into a compatible ATX case and mount an AM5-compatible AMD Ryzen CPU following the CPU socket instructions. Populate DDR5 memory modules across the four DIMM slots according to the motherboard manual for dual-channel or quad-channel configurations if applicable. Connect M.2 and SATA storage devices, configure RAID in the UEFI BIOS if required, and attach the Wi‑Fi antenna using the EZ-Plug for optimal reception. Ensure proper cooling by attaching supplied thermal guards and using an appropriate CPU cooler rated for your processor.

Recommendations

For stable overclocking of DDR5 memory and high CPU loads, use a high-quality CPU cooler, ensure case airflow is sufficient, and update the UEFI BIOS to the latest version before configuring advanced performance settings.
Key Highlights
  • X3D Turbo Mode: Unleash new era gaming performance
  • DDR5 OC up to 8200MT/s, dual Channel DDR5
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • M.2 EZ-Flex: high-efficiency heat dissipation & flexible baseplate for M.2 SSD(Exclusive Patented Design)
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext
  • Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870 Realtek ALC1220 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 512 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220
Audio output channels
7.1 channels
Batteries included
Yes
Battery capacity
220 mAh
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
512 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Bundled software
Norton® Internet Security (OEM version)
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Cooling type
Passive
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
Digital audio optical out
1
DirectX version
12.0
DisplayPort version
1.4
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDCP version
2.3
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8126
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
AMD X870
Motherboard chipset family
AMD
Motherboard form factor
ATX
Number of battery cells
1
Number of chassis fan connectors
6
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
2
Number of M.2 (M) slots
4
Number of memory slots
4
Number of noise detection headers
1
Number of RGB LED pin headers
4
Number of SATA III connectors
2
Number of storage drives supported
6
Number of temperature sensor headers
2
Number of water pump connectors
3
On-board graphics card
No
Package depth
270 mm
Package height
80 mm
Package weight
5.1 kg
Package width
335 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Peripheral (Molex) power connectors (4-pin)
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
Black
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 connectors
1
USB4 Gen 3x2 ports quantity
2
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
4.42 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Qualcomm QCNCM865
