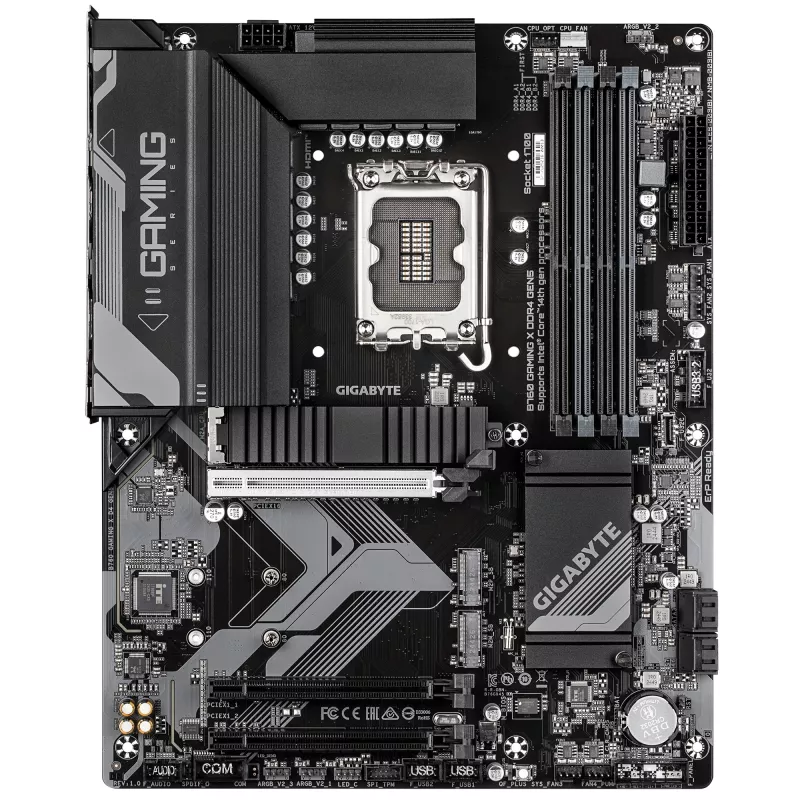

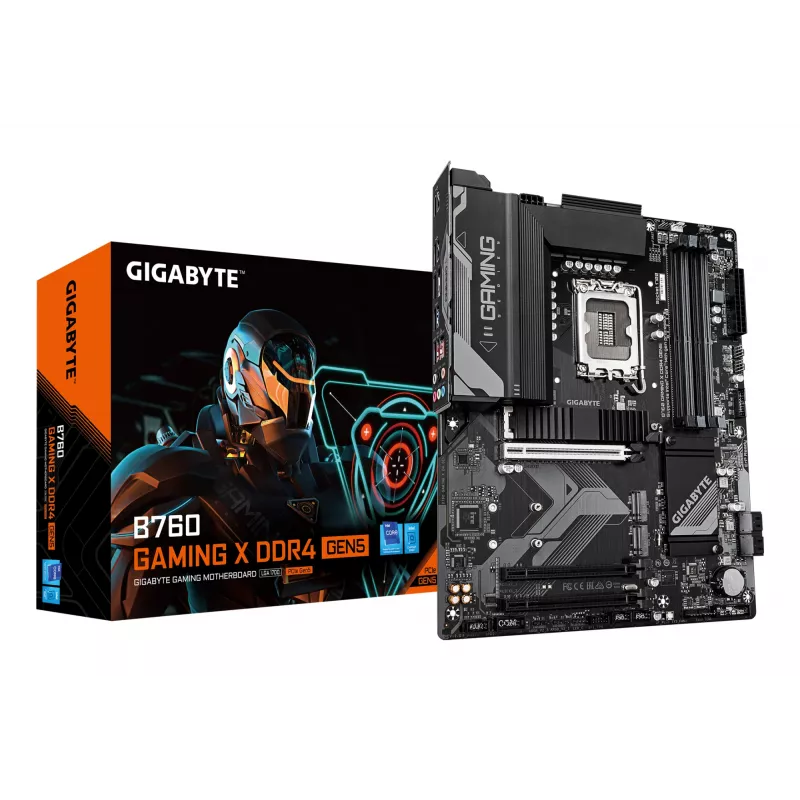

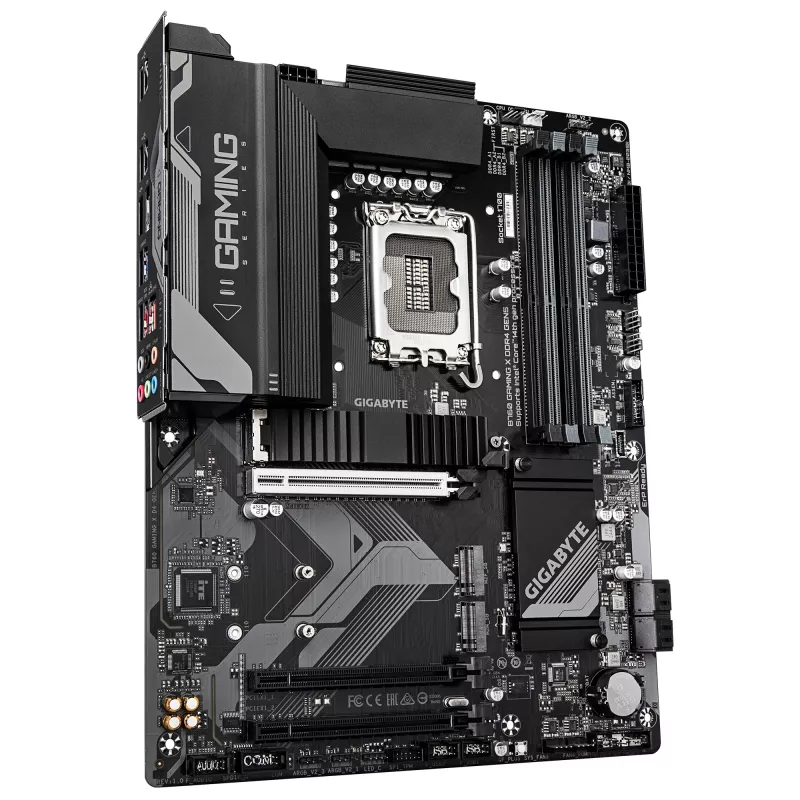

GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
36 mo.
GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
R2,945
GIGABYTE AORUS / AERO / GIGABYTE series motherboards provide a balance of performance, connectivity and thermal management for gaming, content creation and professional workloads. These ATX boards support Intel LGA 1700 processors from 12th to 14th Gen and offer multiple M.2 slots, DDR4 dual-channel... Read More
Stock 32 Code 1246746 Brand GIGABYTE Model B760 GAMING X D4 GEN5 Warranty 3 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

GIGABYTE AORUS / AERO / GIGABYTE series motherboards provide a balance of performance, connectivity and thermal management for gaming, content creation and professional workloads. These ATX boards support Intel LGA 1700 processors from 12th to 14th Gen and offer multiple M.2 slots, DDR4 dual-channel memory support and modern I/O including front USB-C 10Gb/s, DisplayPort and HDMI.

Advantages

The series delivers PCIe Gen5-ready features such as reinforced PCIe slots and EZ-Latch quick-release design for easier GPU installation, advanced VRM solutions with thermal armor and M.2 thermal guards for sustained performance, and integrated 2.5GbE networking for faster wired connections. UEFI BIOS with Clear CMOS jumper and RAID support for SATA and PCIe storage provide flexible system configuration.

Key specifications

  • Form factor: ATX (PC ATX)
  • CPU socket: Intel LGA 1700; compatible with Intel Celeron, Pentium and Intel Core i3/i5/i7/i9 12th–14th Gen
  • Chipset: Intel B760
  • Memory: DDR4-SDRAM, 4 DIMM slots, dual-channel, up to 128 GB, XMP support
  • PCIe: PCIe Gen5 x16 slot with EZ-Latch; PCIe UD slot with SMD PCIe 5.0 armor
  • VRM: Hybrid 8+1+1 phases VRM solution with VRM Thermal Armor Advanced
  • Storage: 3 × M.2 PCIe 4.0 x4 connectors; SATA III; HDD & SSD support; up to 7 storage drives supported; RAID support
  • Audio: Realtek ALC897, 7.1 channels
  • Networking: 2.5GbE LAN

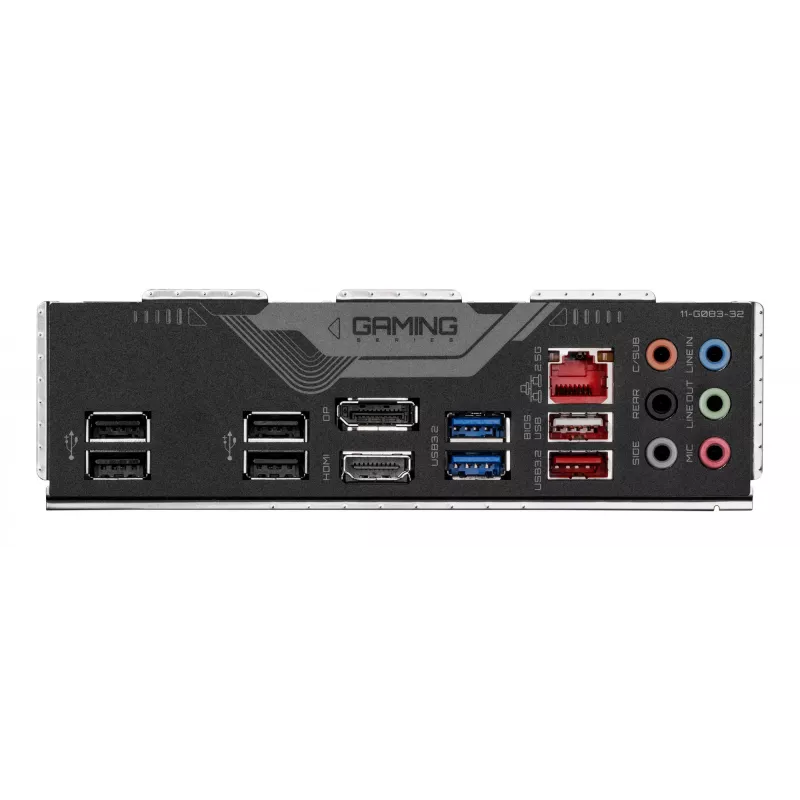

  • I/O: Front USB-C 10Gb/s, DisplayPort, HDMI
  • BIOS: UEFI AMI 256 Mbit; ACPI version 5.0; Clear CMOS jumper

How to use

Install the motherboard into a compatible ATX case and mount an Intel LGA 1700 CPU from supported generations following the CPU and cooler manufacturer instructions. Insert DDR4 memory modules into the DIMM slots in the recommended dual-channel configuration and install storage devices into M.2 or SATA connectors. Use the EZ-Latch mechanism when fitting a PCIe Gen5 graphics card for easier securement. Connect front-panel USB-C, DisplayPort or HDMI as needed and configure BIOS/UEFI settings, XMP profiles and RAID options before installing the operating system.

Recommendations

For optimal performance, pair the board with high-quality cooling for the VRM and M.2 drives, use matched DDR4 memory modules with XMP support, and update the UEFI BIOS to the latest version before finalizing system setup. Ensure your power supply meets the needs of your chosen CPU and GPU.

Key Highlights
  • PCIe Gen5 Performance: Perfect Sync to Win
  • Supports Intel Core 14th/ 13th/12 processors
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
  • PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
  • Unparalleled Performance: Hybrid 8+1+1 Phases VRM Solution
  • Dual Channel DDR4: 4*DIMMs with XMP Memory Module Support
  • Fast Networks: 2.5GbE LAN
  • Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI
  • Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors
  • Intel LGA 1700 Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
  • PC ATX Intel B760 Realtek ALC897 7.1 channels
  • DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, PCI Express 4.0, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet
Specifications
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
ACPI version
5.0
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bundled software
Norton® Internet Security (OEM version)
Clear CMOS jumper
Yes
Compatible processor series
Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
Component for
PC
Cooling type
Passive
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
1.2
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8125
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
128 GB
Maximum internal memory per slot
32 GB
Maximum internal memory supported by processor
128 GB
Maximum resolution
4096 x 2304 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
Intel B760
Motherboard chipset family
Intel
Motherboard form factor
ATX
Number of battery cells
1
Number of chassis fan connectors
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
7
Number of water pump connectors
2
Package depth
270 mm
Package height
80 mm
Package weight
1.8 kg
Package width
335 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
Power source type
ATX
Processor manufacturer
Intel
Processor socket
LGA 1700
Product colour
Dark brown
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out connector
Yes
Screws included
Yes
Serial port headers
1
Supported memory clock speed (max)
5333 MHz
Supported memory clock speeds
2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Supported memory types
DDR4-SDRAM
Supported processor sockets
LGA 1700
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
5
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
1.59 kg
Wi-Fi
No
Width
305 mm
Windows operating systems supported
Windows 10 x64, Windows 11 x64
