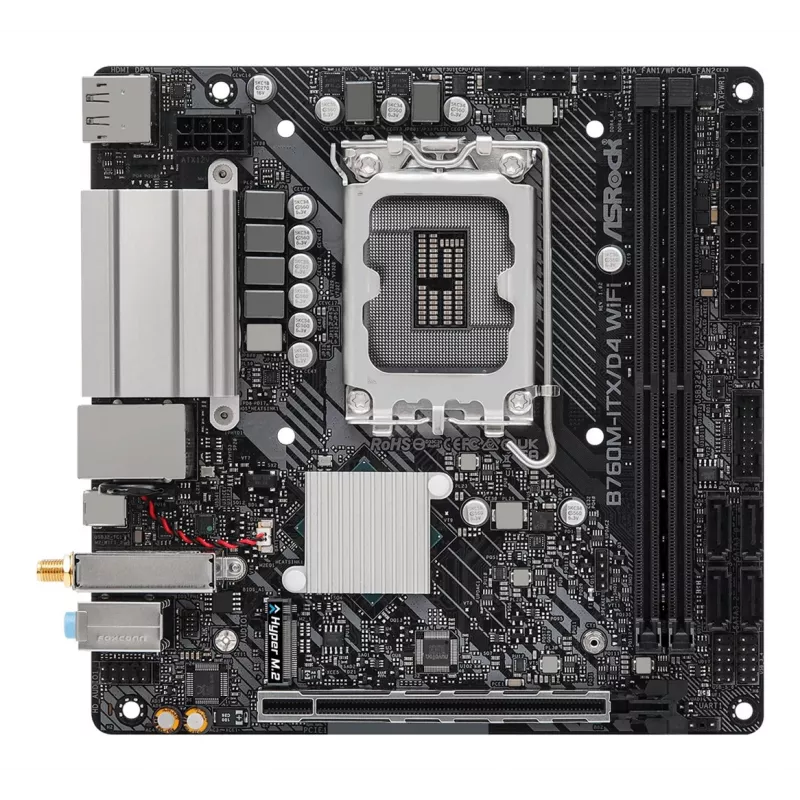

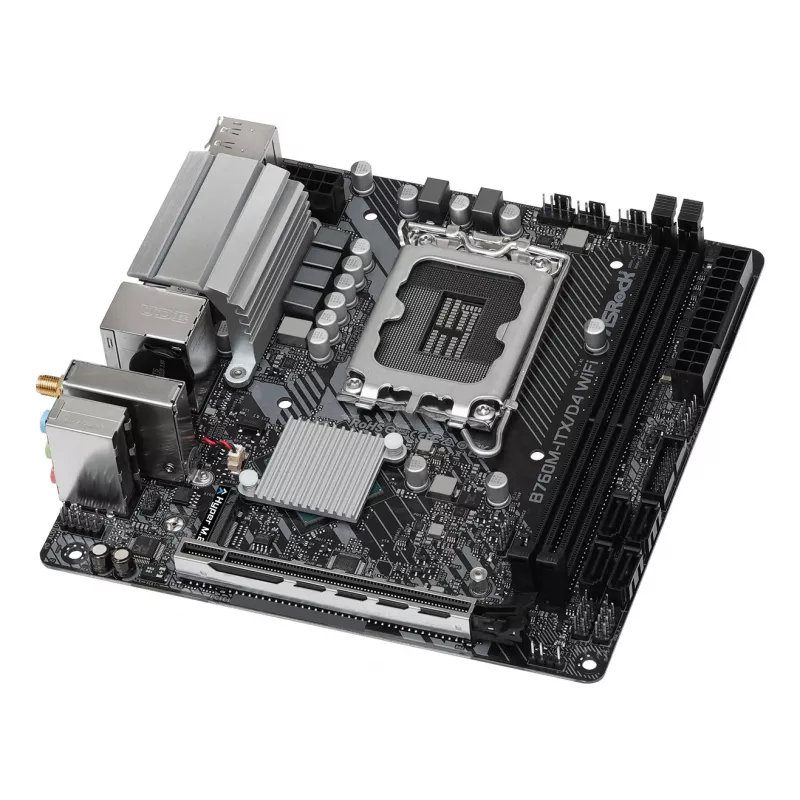

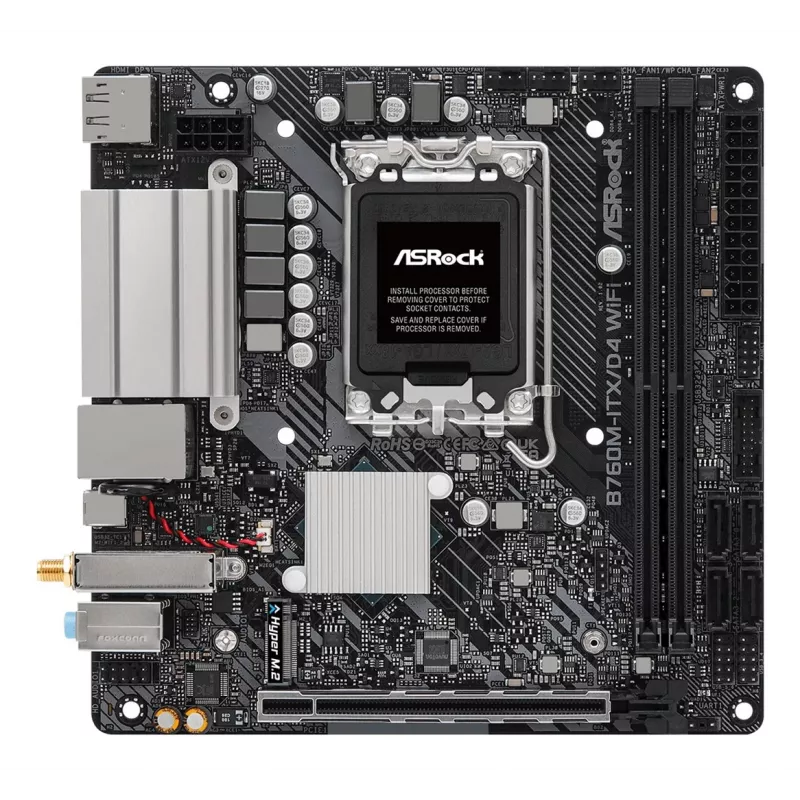

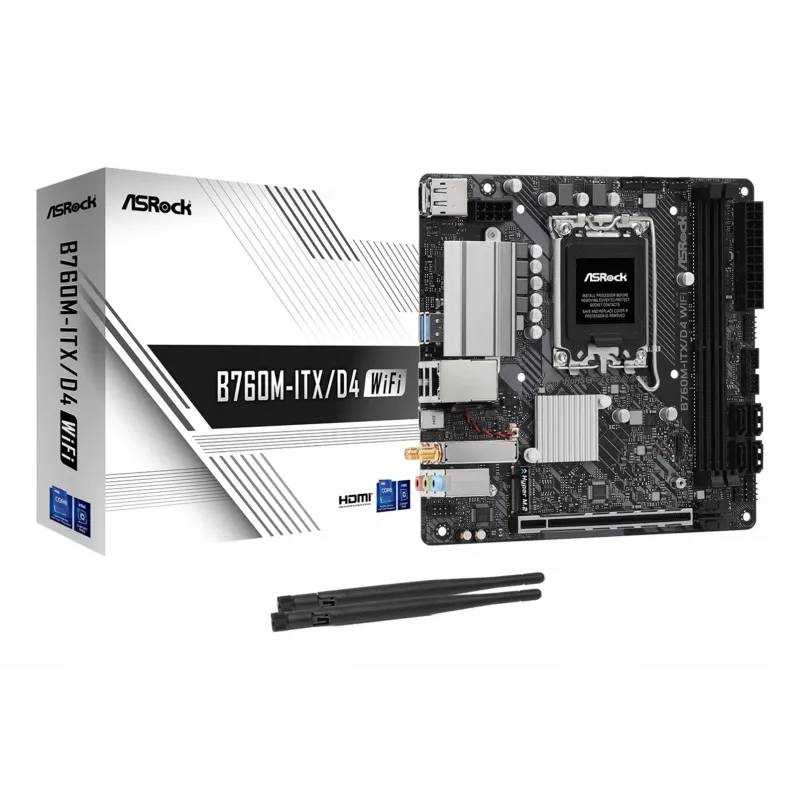

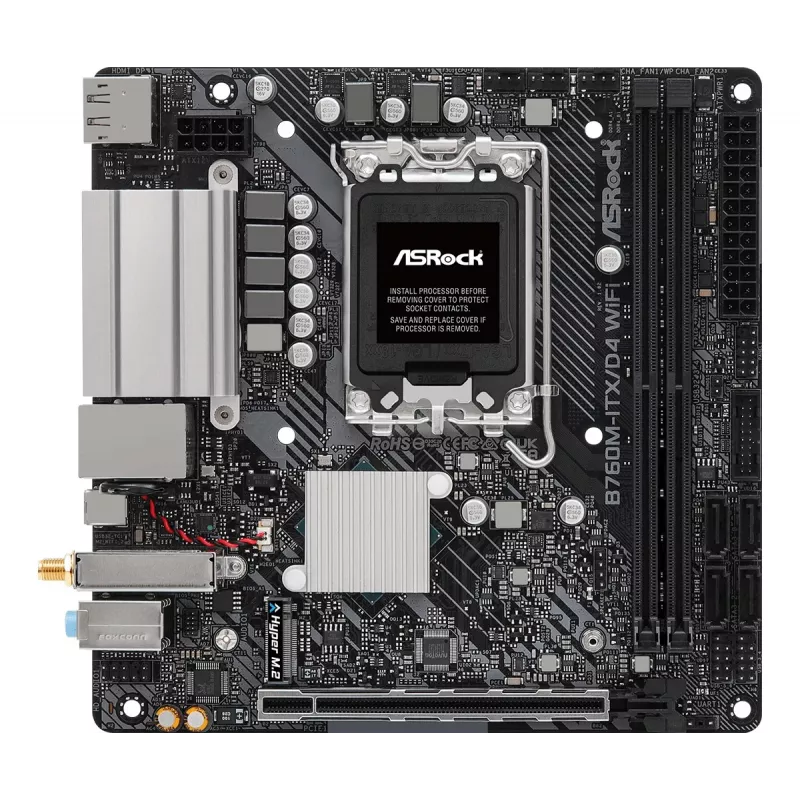

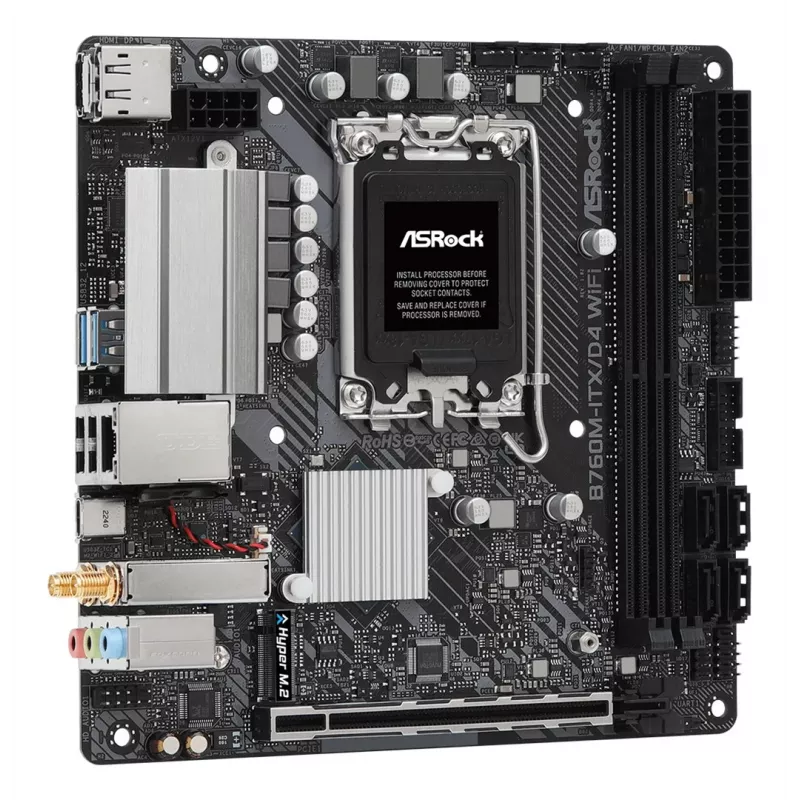

Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX

Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
36 mo.
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
Motherboard ASRock B760M-ITX/D4 WiFi Intel B760 LGA 1700 mini ITX
R3,784
The ASRock B760M-ITX/D4 WiFi is a compact Mini-ITX motherboard built on the Intel B760 chipset, designed for 12th, 13th, and 14th Gen Intel Core processors (LGA1700 socket). It supports DDR4 memory, making it a cost-effective choice for small-form-factor builds that require modern performance and wi... Read More
Stock Out Of StockNo Stock Code 118663 Brand ASROCK Model B760M-ITX/D4 WIFI Warranty 3 Years

Shipping & Returns

The ASRock B760M-ITX/D4 WiFi is a compact Mini-ITX motherboard built on the Intel B760 chipset, designed for 12th, 13th, and 14th Gen Intel Core processors (LGA1700 socket). It supports DDR4 memory, making it a cost-effective choice for small-form-factor builds that require modern performance and wireless connectivity.

Key features

  • Intel LGA1700 socket compatible with Intel Core i3/i5/i7/i9 processors (12th, 13th, 14th Gen)
  • Dual DDR4 DIMM slots supporting up to 64GB and memory speeds up to 5333 MHz (OC)
  • Integrated Wi-Fi 6E (802.11ax) and Bluetooth for high-speed wireless connectivity
  • One PCIe 4.0 x16 slot for graphics or expansion cards
  • One Hyper M.2 Socket (Key M, 2280) supporting PCIe Gen4x4 (64 Gb/s) for ultra-fast NVMe SSDs
  • Four SATA3 6.0 Gb/s ports with RAID 0, 1, 5, and 10 support
  • 7.1 CH HD Audio with Realtek ALC897 codec and Nahimic Audio enhancement
Key Highlights
  • Power design: Dr. MOS integrated MOSFETs with 5+1+1 power phases
  • PCB: 6-layer PCB for improved thermal and signal performance
  • PCIe slot: Reinforced steel slot compliant with PCIe 4.0
  • Storage: M.2 slot supporting PCIe Gen4 x4 SSDs
  • Wireless: Wi‑Fi 6E (802.11ax) — support for 6 GHz band

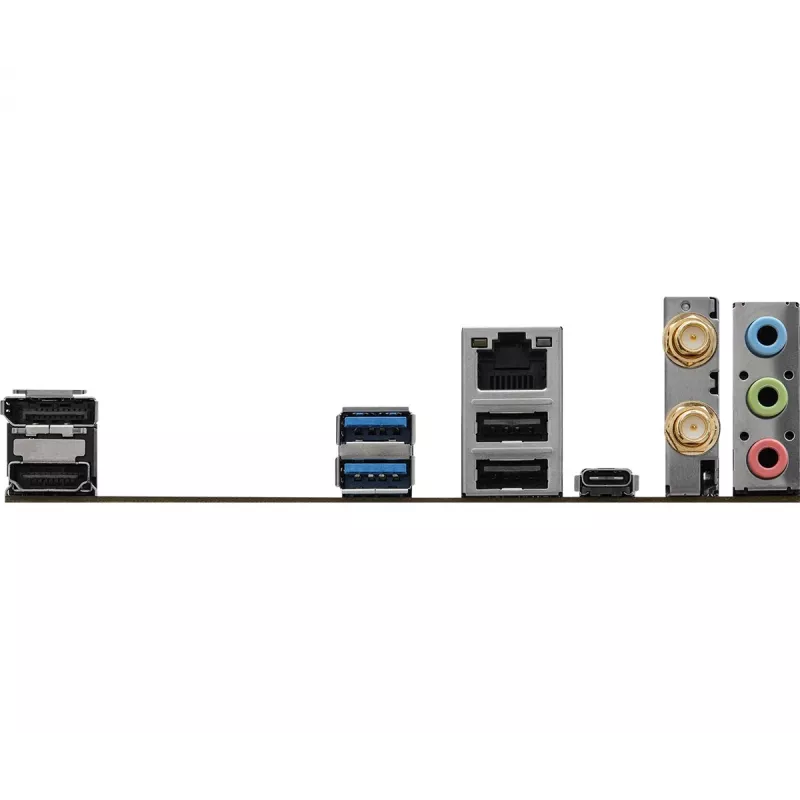

  • Rear port: USB 3.2 Gen2x2 Type‑C (up to 20 Gbps)
  • Audio: Nahimic audio engine — multi-device surround, noise suppression, echo cancellation, voice stabilizer
  • Software: Auto Driver Installer preinstalled for simplified driver setup
Specifications
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1
BIOS type
UEFI AMI
Compatible processor series
Intel Core i3, Intel Core i9, Intel Core i7, Intel Core i5
Component for
PC
CPU fan connector
Yes
Depth
170 mm
DisplayPort version
1.4
DisplayPorts quantity
1
DVI-D ports quantity
0
EPS power connector (8-pin)
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
HDMI ports quantity
1
LAN controller
Realtek RTL8111H
Line-in
Yes
Maximum internal memory
64 GB
Maximum number of SMP processors
1
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
Intel B760
Motherboard chipset family
Intel
Motherboard form factor
Mini ITX
Number of M.2 (M) slots
1
Number of memory slots
2
Number of SATA III connectors
4
PCI Express x16 (Gen 4.x) slots
1
Processor manufacturer
Intel
Processor socket
LGA 1700
RAID levels
1, 10, 5
RAID support
Yes
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III, M.2
Supported storage drive types
HDD & SSD
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
VGA (D-Sub) ports quantity
0
Wi-Fi
Yes
Wi-Fi standards
802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11b, 802.11a
Width
170 mm
Windows operating systems supported
Windows 11 x64, Windows 10 x64
