Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX

Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
R1,349
The ASRock B450M-HDV R4.0 is a reliable micro ATX motherboard built on the AMD B450 chipset, designed to support AMD Ryzen processors with the Socket AM4 interface. It offers a balanced set of features for everyday computing and light gaming, including dual-channel DDR4 memory support and versatile ... Read More
Stock Out Of StockNo Stock Code 10492 Brand ASROCK Model B450M-HDV R4.0 Warranty 2 Years

Shipping & Returns

The ASRock B450M-HDV R4.0 is a reliable micro ATX motherboard built on the AMD B450 chipset, designed to support AMD Ryzen processors with the Socket AM4 interface. It offers a balanced set of features for everyday computing and light gaming, including dual-channel DDR4 memory support and versatile connectivity options.

Key features

  • Supports AMD Ryzen 3, 5, 7, and 9 series (3000 series) processors with Socket AM4
  • 2 x DDR4 memory slots, supporting up to 32 GB with frequencies up to 3200 MHz (OC)
  • 1 x PCIe 3.0 x16 slot for graphics cards and 1 x PCIe 2.0 x1 slot for expansion
  • 4 x SATA3 6.0 Gb/s connectors with RAID 0, 1, and 10 support
  • 1 x Ultra M.2 socket (M key) for SATA3 or PCIe Gen3 x4 SSDs (2242/2260/2280)

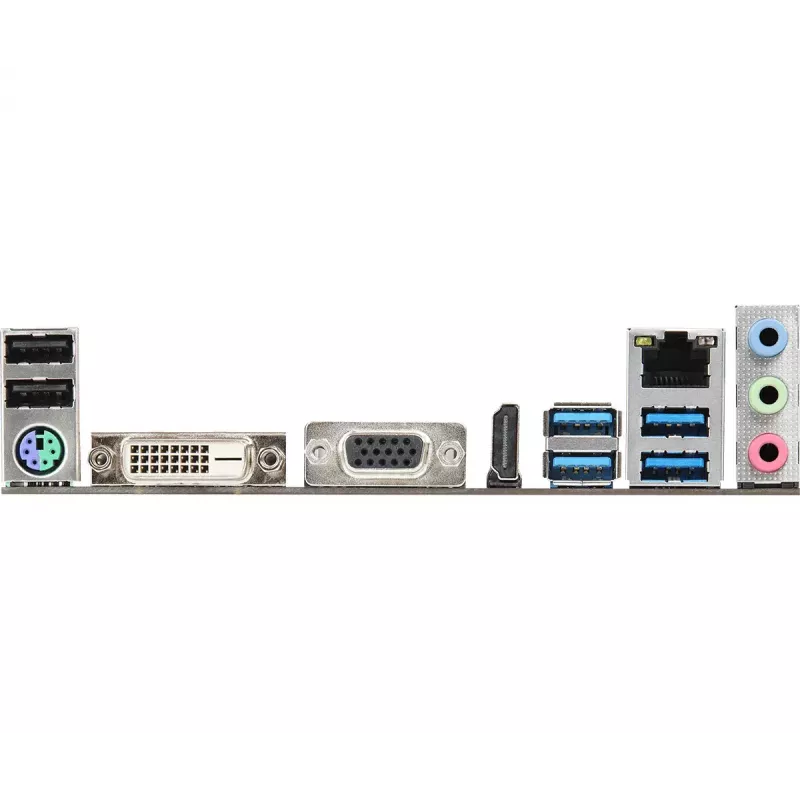

  • Rear panel I/O: 1 x PS/2, 2 x USB 2.0, 4 x USB 3.1, 1 x HDMI, 1 x DVI-D, 1 x RJ45, and audio jacks
  • Integrated Gigabit network card and 7.1 CH HD audio codec
Key Highlights
  • Compact gaming PC builds using AMD Ryzen or Athlon processors
  • Home and office productivity systems requiring 4K display support
  • Systems needing a balance of SSD responsiveness and large HDD capacity via StoreMI
  • Budget builds that still require stable power delivery and quality onboard audio
  • Chipset: AMD B450
  • Socket: AM4 (supports AMD Athlon and Ryzen)
  • Form factor: Micro ATX
  • Memory: 2 × DDR4 DIMM slots, up to 32 GB
  • M.2: Ultra M.2 (PCIe Gen3 x4 & SATA3) supporting up to 32 Gb/s
  • SATA: SATA III ports with RAID support
  • PCIe: PCIe 3.0 x16 and additional PCIe slots
  • Network: Gigabit Ethernet
  • Maximum display resolution: 4096 × 2160 (4K)

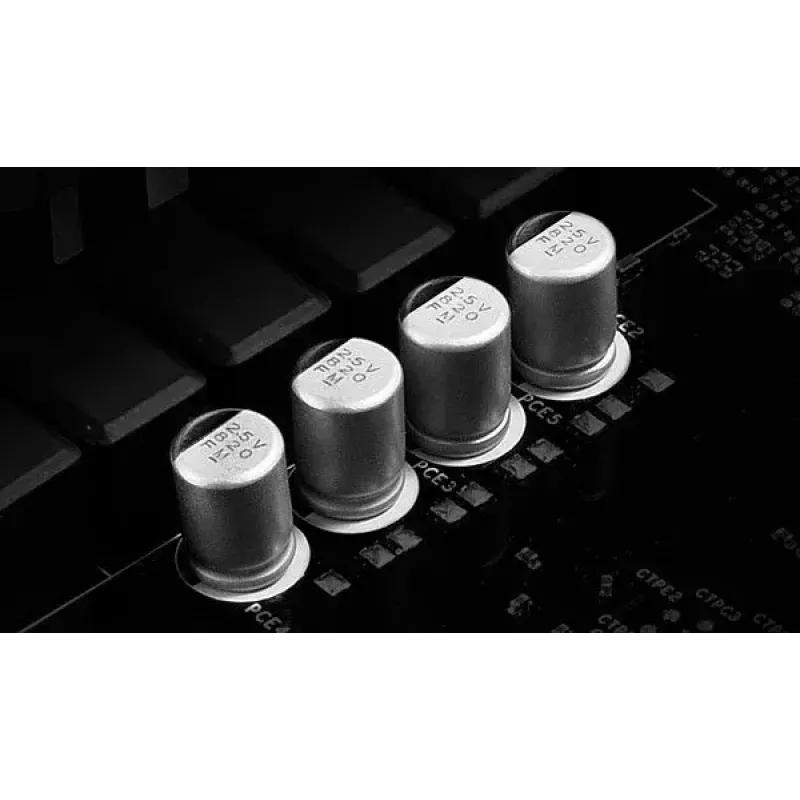

  • Audio: ELNA audio capacitors
Specifications
12V power connector
Yes
ACPI version
5.1
Audio chip
Realtek ALC887
Audio output channels
7.1
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Bundled software
AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Cables included
SATA
Certification
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Chassis intrusion connector
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Athlon
Component for
PC
CPU fan connector
Yes
Depth
201 mm
DirectX version
12.0
Drivers included
Yes
DVI-D ports quantity
1
ECC сompatibility
ECC & non-ECC
eSATA ports quantity
0
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Firewire (IEEE 1394) ports
0
Front panel audio connector
Yes
Graphics card family
AMD
Harmonized System (HS) code
84733020
HDCP
Yes
HDMI ports quantity
1
Headphone outputs
1
Height
70 mm
LAN controller
Realtek RTL8111H
Maximum internal memory
32 GB
Maximum resolution
4096 x 2160
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD B450
Motherboard chipset family
AMD
Motherboard form factor
Micro ATX
Number of chassis fan connectors
2
Number of COM connectors
1
Number of memory slots
2
Number of Parallel ATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
On-board graphics card
Yes
Parallel processing technology support
Not supported
PCI Express x1 (Gen 2.x) slots
1
PCI Express x16 (Gen 3.x) slots
3
Processor manufacturer
AMD
Processor socket
Socket AM4
PS/2 ports quantity
1
Quick installation guide
Yes
RAID levels
10, 1
Supported memory clock speeds
3200, 2933, 2667, 2400, 2133
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.3
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Utilities included
Yes
VGA (D-Sub) ports quantity
1
Wake-on-LAN ready
Yes
Weight
0.465 kg
Wi-Fi
No
Width
230 mm
Windows operating systems supported
Windows 10 x64, Windows 10 Pro x64, Windows 10 Home x64, Windows 10 Enterprise x64, Windows 10 Education x64

Leaflet

Open Leaflet
