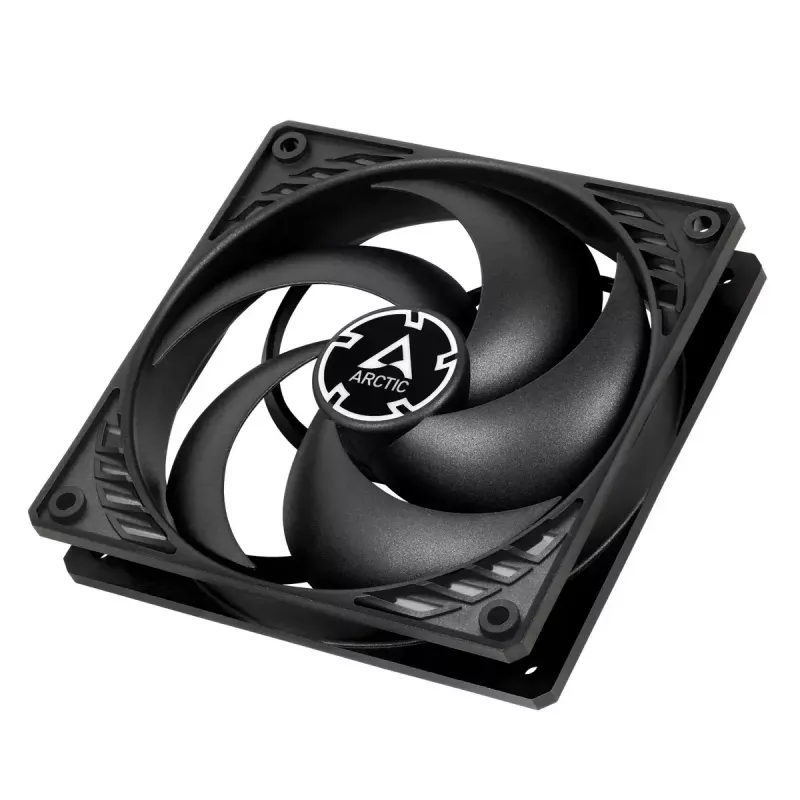

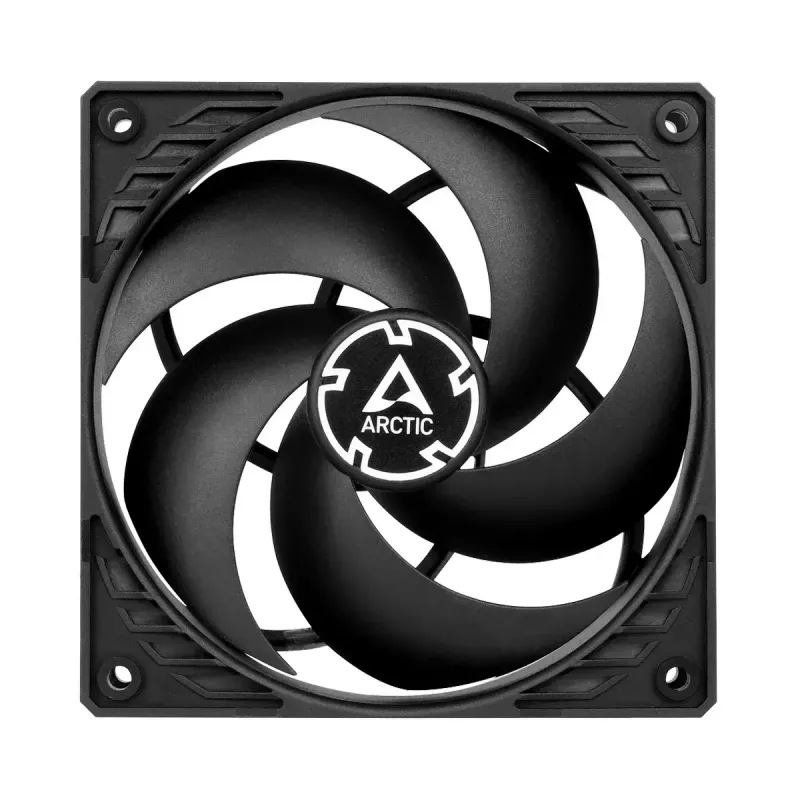

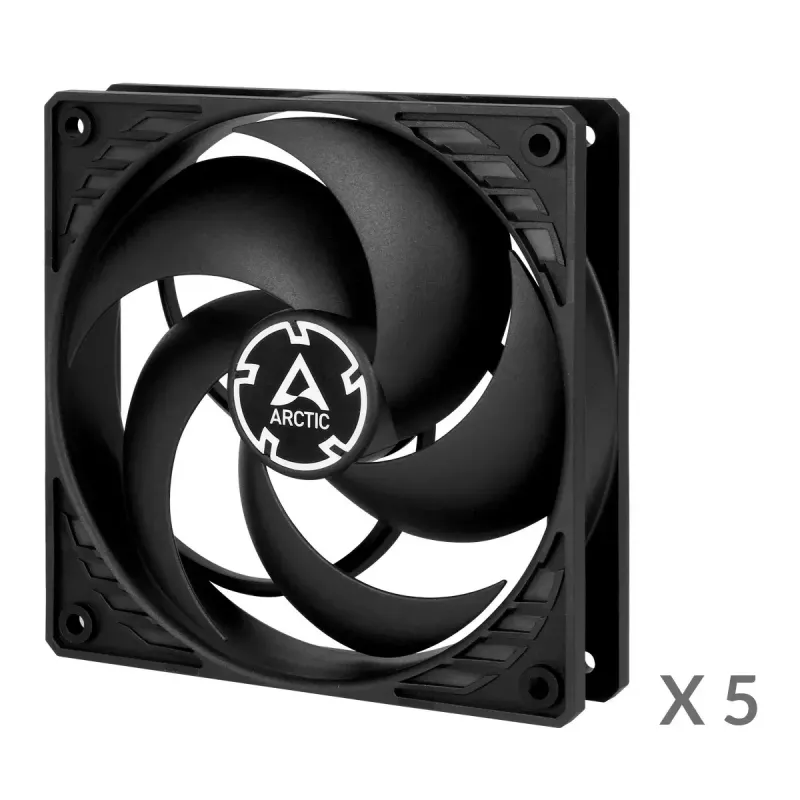

ARCTIC P12 - Pressure-optimised 120 mm Fan

ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan
R527
The P12 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the P12 is especially effective when used on heatsinks and with higher air resistance. Optimised for Static Pressure During the development of the new P12, special emphasis w... Read More
Stock 16 Code 311991 Brand ARCTIC Model ACFAN00135A Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The P12 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the P12 is especially effective when used on heatsinks and with higher air resistance.
Optimised for Static Pressure

Optimised for Static Pressure

During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance.Therefore, the P12 is particularly suitable for use on heatsinks and radiators.

Strong Cooling Performance

Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.
Strong Cooling Performance

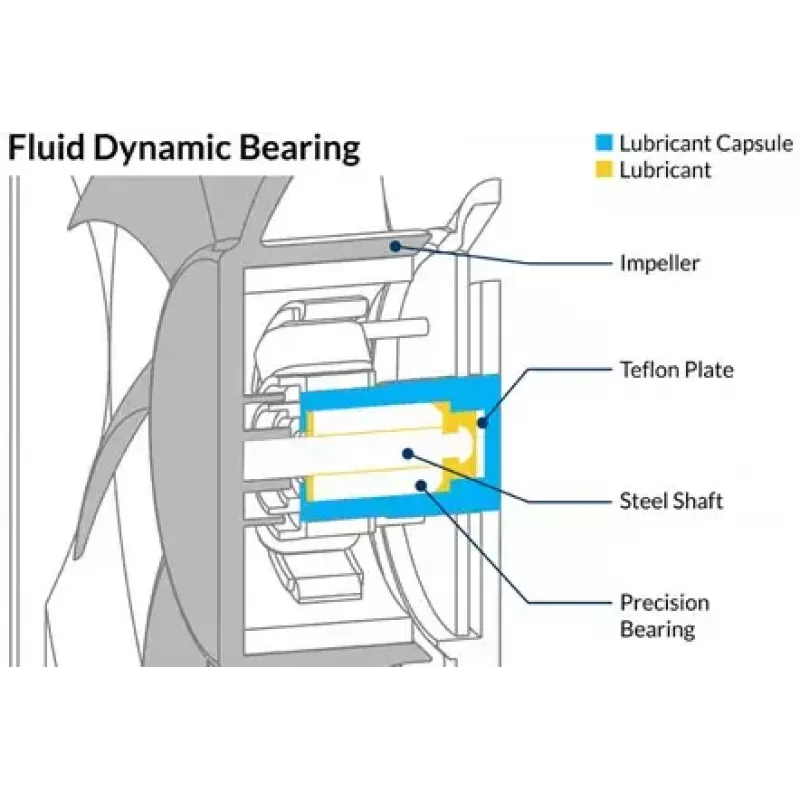

High Quality Bearing

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

How to use

Install the P12 fan on heatsinks or in locations where airflow faces resistance, ensuring correct orientation for airflow direction and secure mounting. Connect to the appropriate power header and verify rotation and airflow after installation.

Recommendations

Use the P12 in systems with restrictive airflow (radiators, dense heatsinks, or tight chassis spaces) to improve cooling efficiency; ensure compatibility with mounting patterns and power connectors before purchase.

Key Highlights
  • Optimised for static pressure
  • Ideal choice on heatsinks, radiators and (partly-) covered case vents
  • Push- or pull-configuration possible
  • Computer case Fan 12 cm 1800 RPM
  • 56.3 cfm Fluid Dynamic Bearing (FDB)
  • Black
Specifications
Airflow
95.65 m³/h
Bearing type
Fluid Dynamic Bearing (FDB)
Cable length
0.4 m
Compatible processor series
Not supported
Country of origin
China
Depth
120 mm
Fan connector
3-pin
Fan diameter
12 cm
Harmonized System (HS) code
84733080
Height
25 mm
Maximum airflow
56.3 cfm
Noise level
0.3 sone
Number of fan blades
5
Number of fans
1 fan(s)
Number of screws
20
Package depth
127 mm
Package height
123 mm
Package type
Box
Package weight
800 g
Package width
130 mm
Product colour
Black
Rated current
0.2 A
Rotational speed (max)
1800 RPM
Screws included
Yes
Starting voltage
2.8 V
Suitable location
Computer case
Supported processor sockets
Not supported
Type
Fan
Voltage
12 V
Weight
139 g
Width
120 mm

Leaflet

Open Leaflet
