ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST

ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
R451
BioniX P140Pressure-optimised 140 mm Gaming Fan with PWM PSTThe BioniX P140 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the BioniX P140 is especially effective when used on heatsinks and with higher air resistance.The wide RPM range from 200 to 1950... Read More
Stock 4 Code 115646 Brand ARCTIC Model ACFAN00160A Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

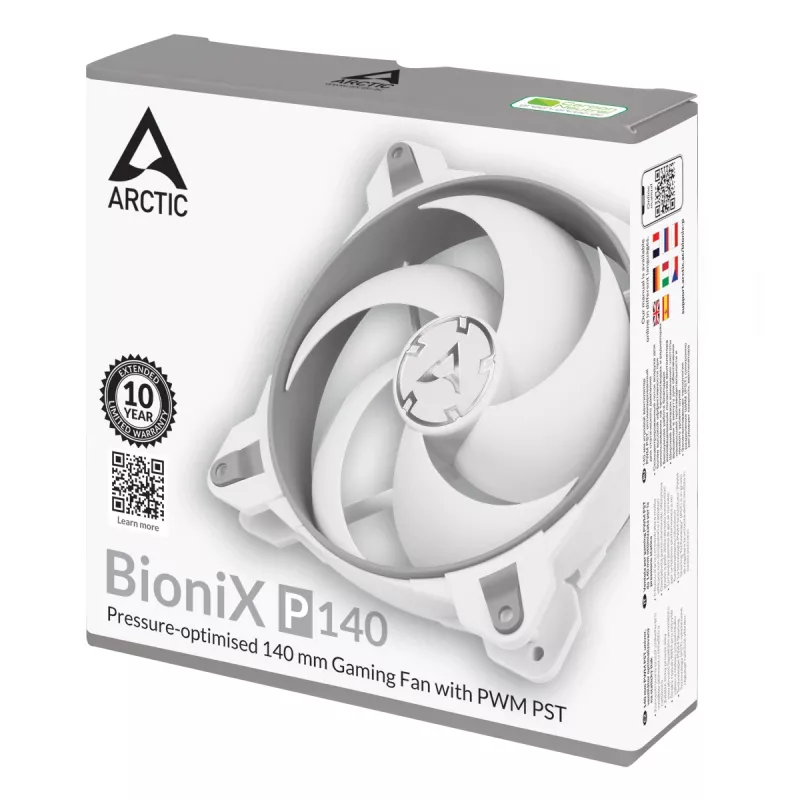

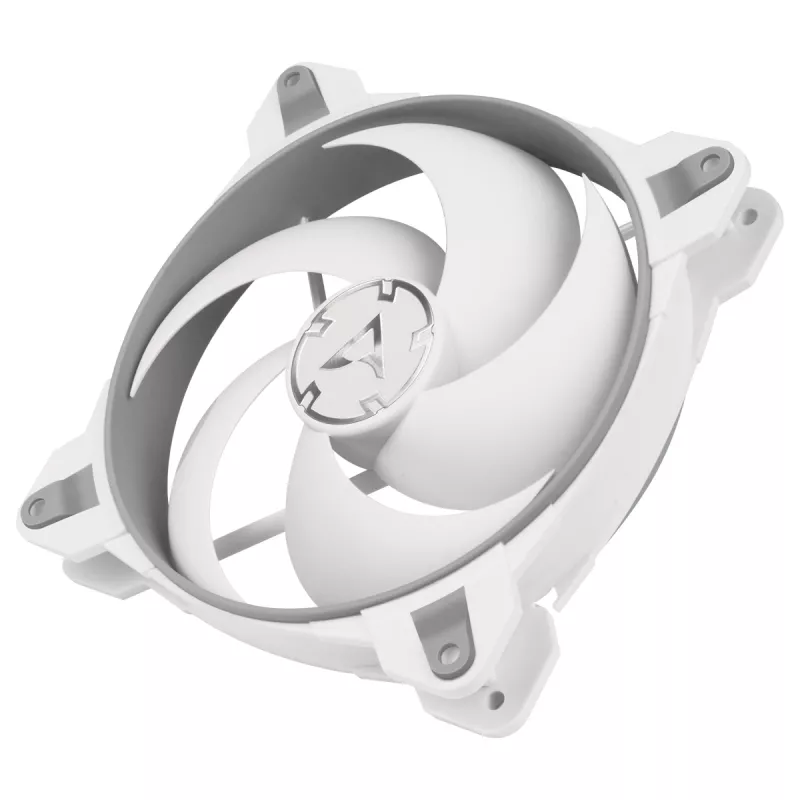

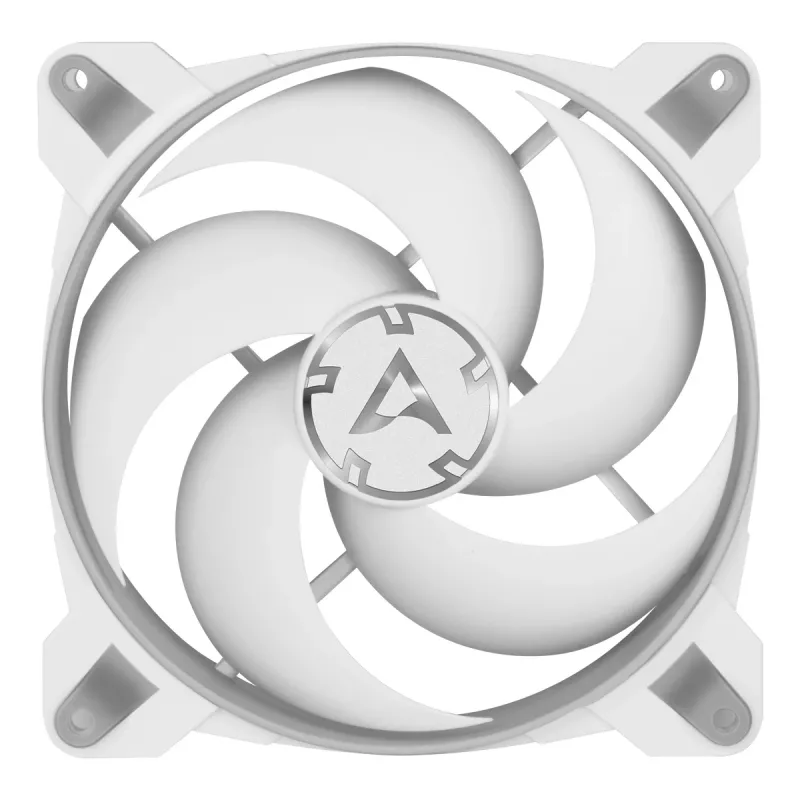

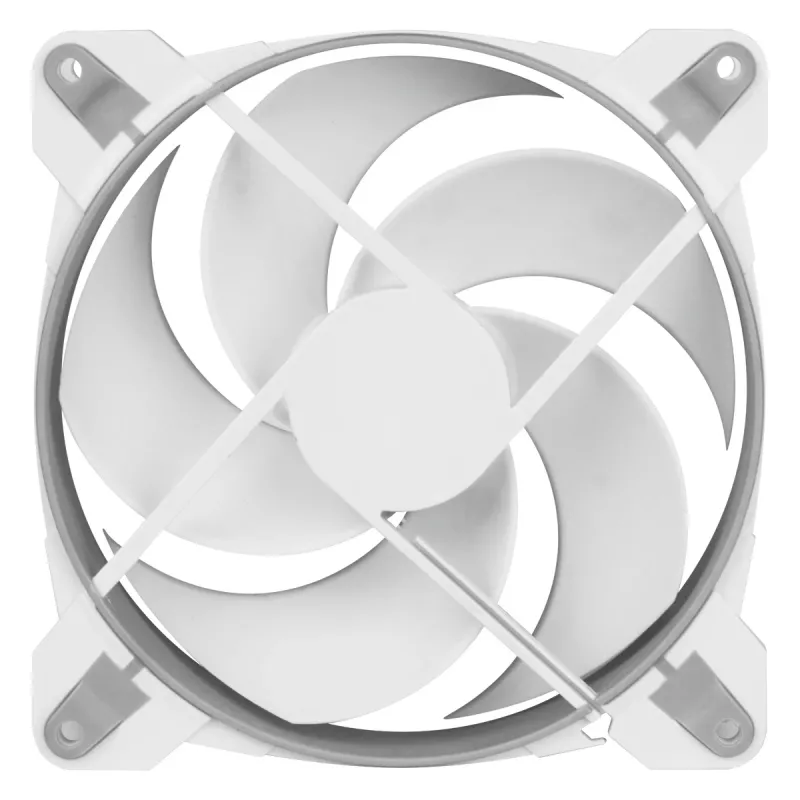

BioniX P140
Pressure-optimised 140 mm Gaming Fan with PWM PST

The BioniX P140 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the BioniX P140 is especially effective when used on heatsinks and with higher air resistance.
The wide RPM range from 200 to 1950 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST).
The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
Optimised for Static Pressure

Optimised for Static Pressure

During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators.

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Maximum Quietness, Minimum Vibration
Extended Life Span

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.

200 to 1950 RPM regulated via PWM PST

With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P140 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
200 to 1950 RPM regulated via PWM PST
High Quality Bearing

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced andgreater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Key Highlights
  • Optimised for static pressure
  • Ideal choice on heatsinks, radiators and (partly-) covered case vents
  • Broad RPM range for highest performance and low noise level
  • Push- or pull-configuration
  • PWM Sharing Technology (PST) regulates fan speed synchronously
  • Newly developed, very quiet motor
  • Extended life span
  • Available in multiple distinct colors
  • Computer case Fan 14 cm 1950 RPM
  • 77.6 cfm 2.85 mmH2O Fluid Dynamic Bearing (FDB)
  • Pulse-width modulation (PWM) support
  • Grey, White

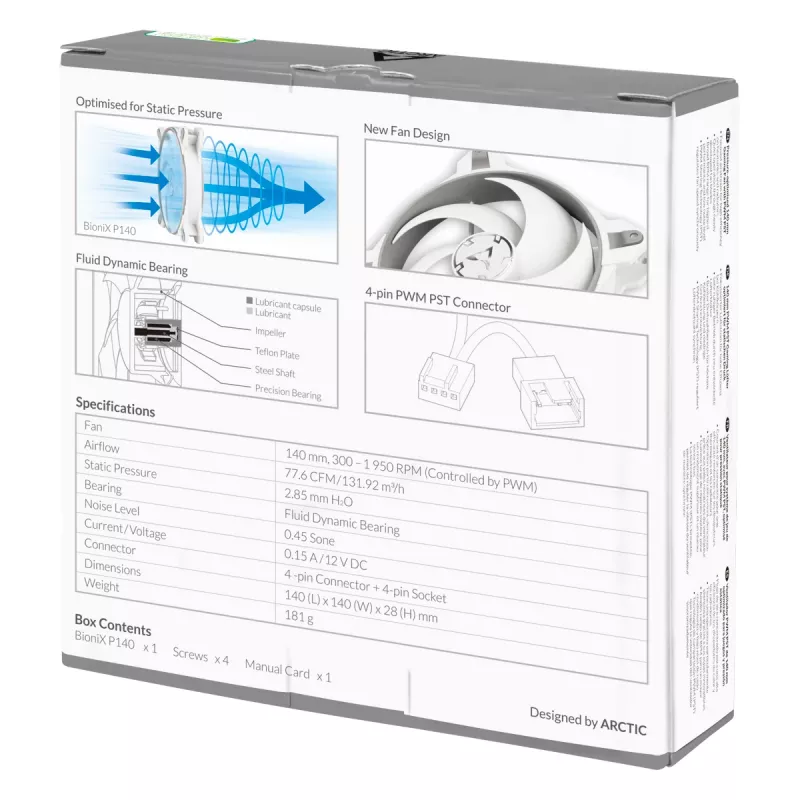

Specifications
Airflow
131.92 m³/h
Bearing type
Fluid Dynamic Bearing (FDB)
Cable length
0.4 m
Compatible processor series
Not supported
Country of origin
China
Depth
28 mm
Fan connector
4-pin + 4-pin
Fan diameter
14 cm
Harmonized System (HS) code
84733080
Height
140 mm
Maximum air pressure
2.85 mmH2O
Maximum airflow
77.6 cfm
Mounting hole pattern (W x D)
125 x 125 mm
Noise level
0.45 sone
Number of fan blades
5
Number of fans
1 fan(s)
Number of screws
4
Package depth
35 mm
Package height
148 mm
Package type
Box
Package weight
230 g
Package width
148 mm
Power consumption (typical)
1.8 W
Product colour
Grey, White
Pulse-width modulation (PWM) support
Yes
Rated current
0.15 A
Rotational speed (max)
1950 RPM
Rotational speed (min)
200 RPM
Screws included
Yes
Suitable location
Computer case
Supported processor sockets
Not supported
Type
Fan
Voltage
12 V
Weight
181 g
Width
140 mm
